Home > Manufacturing & Processing Machinery > Spraying Machinery & Spreading Equipment > Line Marking Machine > Large Thermoplastic Spraying/Extrusion/screeding Road Marking Truck
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power(W):
hydraulic system Power 44KW
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hand-guided Two Component Road Marking MachineUS$ 1 - 2MOQ: 1 Set -
Thermoplastic (Convex) Self-propelled Road Marking MachineUS$ 1 - 2MOQ: 1 Set
-
Small Driving Type Cold Paint Air Spraying Road Marking MachineUS$ 1 - 2MOQ: 1 Set
-
Factory Direct Sell Hand-pushed Cold and Cold Plastic Road Paint Marking MachineUS$ 1 - 2MOQ: 1 Set
-
Sell Cold Paint Hand-pushed Road Marking MachineUS$ 1 - 2MOQ: 1 Set
Condition
New
Power(W)
hydraulic system Power 44KW
Place of Origin
Henan, China
Brand Name
TATU
Model Number
TT-Q90-R/KJ2400
Dimension(L*W*H)
11685*2465*2860
Weight
5T
Features
Multi-function
Certification
CE
Warranty
1 year
After-sales Service Provided
No overseas service provided
| Large Thermoplastic Spraying/Extrusion/screeding Road Marking Truck |
Product Description

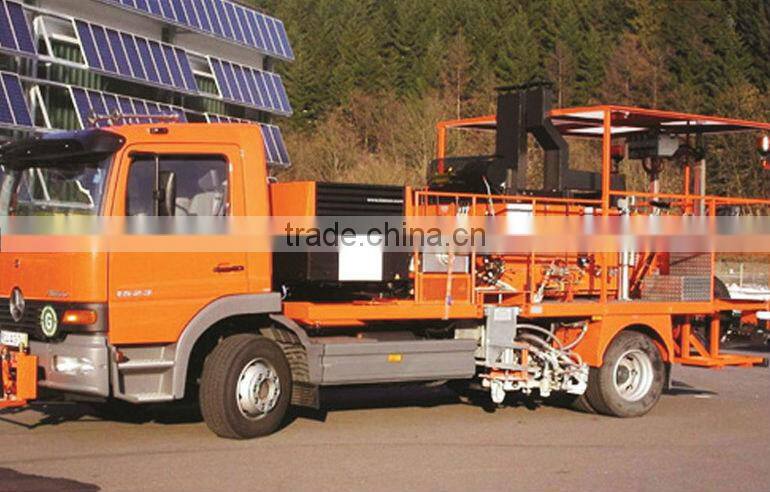

| Product Photo ( TT-Q90-RK/J2400 ) |
|
| What is the features of our Road Marking Truck? |
| 1,Excellent construction efficiency 2,Construction quality is good 3,Put less manpower 4,Construction safety and environmentally friendly marking equipment 5,The best choice for long distance high efficient construction |
| What is the Specifications of our Road Marking Truck? |
| Technical Data: |
| Marking Method | extrusion, spraying or screeding (change spray gun or extrusion or screeding device) |
| Material Container Volume | 3×800L or 3×500L (equip 250L backup material container) |
| Heating Method | energy efficient burner, infrared burner, or fuel |
| Heat Preservation Method | heat preservation cotton, or heat transfer oil with heat preservation cotton |
| Temperature Control Method | auto temperature control |
| Marking Line Width | 50-300mm spraying adjustable (screeding type standard equips of 150mm, optional convex box available of 50/100/150/200/250/300mm;extrusion standard equips of 200mm, optional for 100/150/200/250/300mm) |
| Chassis Specification: |
| Chassis Brand | JAC Ge’erfa H1110 Isuzu QL1250DTFZ |
| Overall Dimension (mm) | 11685×2465×2860 (Isuzu) or 11070×2150×2650 (JAC) |
| Rear Cargo Box Dimension (mm) | 9300×2330×450 (Isuzu) or 9200×2150×450 (JAC) |
| Rated Load (T) | 15T (Isuzu) or 16T (JAC) |
| Engine Model | 6HK1-TCSG40 (Isuzu) or Yuchai 220EGR (JAC); |
| Engine Power: | 206KW (Isuzu) or 165KW (JAC) |
| Tyre Model | 11.00-20.18PR (Isuzu) or 10.00-20 (JAC) |
| Equipment Specification: |
| Air Compressor | screw type air compressor 3 m³/min |
| Engine Power | air compressor power 15KW, hydraulic system Power 44KW |
| Glass Bead Container Volume | 2X300L |
| Sweeping Device | optional |
| Reflective Cone Placing structure & Rear Standing Platform | optional |
Packaging & Shipping
| Packaging & Shipping |
|
Our Exhibitions
| Our Exhibitions |
| |
|
|
Why Choose Us?
| Why Choose Us ? |
1,Asia's No.1 Manufacturer |
|
Company Information
| Company View |
|
| TATU is the global brand specialized in research and development, production and sales of road marking products, and also the oldest brand among all the manufacturing brands as a subsidiary of TATU TRAFFIC GROUP. Product R & D strategy: Enter from High-end, Stride systematically, Extend vertically and Promote comprehensively.TATU brand products mainly include three business modules as road marking machinery, road marking material(paint, special resin and glass beads) and traffic safety facilities, and have advantages as road marking machinery with the most comprehensive ranges and the largest number of production units, road marking material with the most varied types and the longest industrial chain, the most export countries and the most comprehensive service capabilities. Some products are firstly developed in the world and many products are in the leading positions. TATU will continue to promote the vitality of its technical innovation, lean manufacturing advantages and the traditional emphasis on the customer experience, and commit to R&D, manufacturing and sales of road marking products and other road-specific safety facilities through its world-class technology research institutions, seven modern manufacturing bases and multivessel lean and efficient marketing services team. With TATU growing out of nothing, from small to big, from big to strong, from China to the world, TATU will help customers enhance their value sustainably with higher standard. |
|
FAQ
| TOP 5 Trade FAQs |
| 1,I need some road marking paint for test, can you provide it? Yes, of course. We can provide free paint samples, for the laboratory testing or actual testing, but you need to pay the postage. If you need samples of road marking paint, please contact our sales engineer or leave a message to us, please tell us which kind of road marking paint that you need, how much do you need, and the recipient's name, address, postcode and telephone number. Once we receive your information, we will promptly contact you to confirm the information and postage, and prepare the paint samples for you. After receipt of postage, we will immediately send the paint samples to the address you specify by TNT, DHL, FEDEX or any other first class courier company. Thanks for your support for our products, if any other questions, please contact us, thank you. 2,I want to visit your factory, what should I do? As Asia's largest road marking machines and road marking paints manufacturer, every year hundreds of clients from around the world visit our factory, visit our road marking machines and road marking paint workshop. If you also wanted come to China and visit our factory, then the following content will provide you with detailed instructions. Firstly, if you decide to visit our factory, please notify our sales engineer who is in touch with you, as soon as possible. Tell him / her the number of visitors and the date, so we can arrange the reception. Secondly, prepare the passport and visa to China. If you need our assistance, please contact with our sales engineer, we will try our best. You can find the Chinese embassies and consulates' contact information in the following websites: /eng/wjb/zwjg/2490/ /service/wjb/ Thirdly, After obtaining the visa, you need to make sure the route and schedule and scheduled flights. If you need us to scheduled return ticket or hotel for you, please contact our sales engineer, along with a scanned copy of your passport. We are located in Zhengzhou City, Henan Province, China, you can first fly to Beijing, Shanghai, Guangzhou or Hong Kong, and then transfer to Zhengzhou. Fourthly, After ticket booking, please give the ticket information to our sales engineer, we will arrange car to pick you up. In order to give you a pleasant journey, if you have any other needs, please inform our sales engineers in advance. Thank you. We look forward to your visit. 3,Do you have the road marking machine in stock? When can you delivery? As Asia's largest road marking machines and road marking paints manufacturer, almost all models of products are in stock, except the big driving-type road marking machines. Please contact our sales engineer or leave us a message to get the latest accurate information. If we have the products in stock, after receipt of payment, we will delivery in 5 business days. If we don't have it in stock, different models, different production cycles, please contact the sales engineer to confirm the delivery time. Thanks for your support for our products, if any other questions, please contact us, thank you. 4,What payment methods do you accept? Thanks for ordering our road marking equipment & material. About the payment terms: 1. T/T (Telegraphic Transfer) Total amount <=USD50,000; 30% T/T as deposit in advance, 70% T/T balance before ship out; or 100% T/T. 2. L/C (Letter of Credit) Total amount >USD50,000; 100% L/C; or 30% T/T as deposit in advance, 70% L/C at sight. In international trade, T/T is a normal, fast and convenient payment terms. Many of our clients prefer to use this method. And here please note that, we only accept confirmed, irrevocable sight L/C, and must open by the big international bank. 5,How do you pack and ship the road marking machine? Small and Medium Size Machine: Plywood packing, custom fumigation free; ship by sea or air. Big Size Road Marking Machine and Paints: Container packing, ship by sea. Photos about Packing and Shipping: We will try our best to make sure every detail is perfect, please rest assured. |
