HD Dvb-t TV Tunner Car Dvb-t Receiver Box

Name: HD Dvb-t TV Tunner Car Dvb-t Receiver Box
Brand: CARAV
SKU: 105390417
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CARAV

Model Number:

DVB-T4600

Shenzhen Carav Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CARAV

Model Number DVB-T4600

Specifications

HD dvb-t tv box
1.with HDMI/USB interface
2.support MPEG4 H246
3. Antanna optional

Good quality HD dvb-t TV tunner tv box

DVB-T4600 SYSTEM	Input	Receiver frequency:177.5MHZ-226.5Mhz UHF 474MHZ-858MHZ
		Receiver sensitivity:-80dBM-20dBM
		Bandwidth:7MHz or 8Mhz
		Input resistance:75Ohm
	Modem	Modem:Input symbol ratio:4.98-31.67 Mbits/s(8MHz bandwidth
		Modem method confim (coding OFD multiplex)
		modulate method QPSK,16QAM-64QAM
		FFT model 2k/8k
	MPEGII decording	video decoder MPEG2:MP@ML,MP@HL H.264/AVC HP at L4.1,MP at L4.1,3.2VC-1:AP at L3,L2
		input stream :max 60Mbits/s
		video output format:video(PAL/NTSC optional)
		Audio decording standard:MPEG-1 and-2,layer 1 and 2 MPEG-4 HE-ACC
		Audio output format: stereo dual audio chanel(left/right)
	video output	1Vpp(75ohm impedance)(CVBS,Pal/NTSC output optional
	Audio output	2Vp-p(10K impedance)

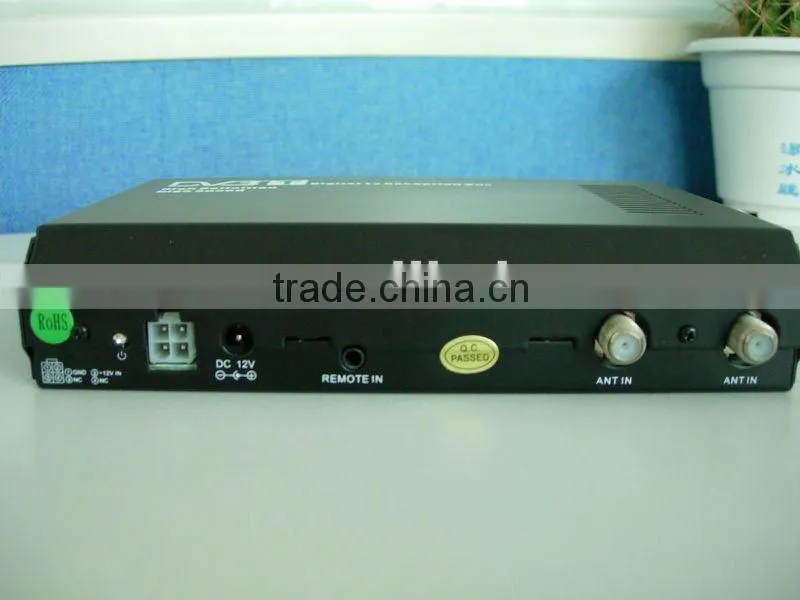

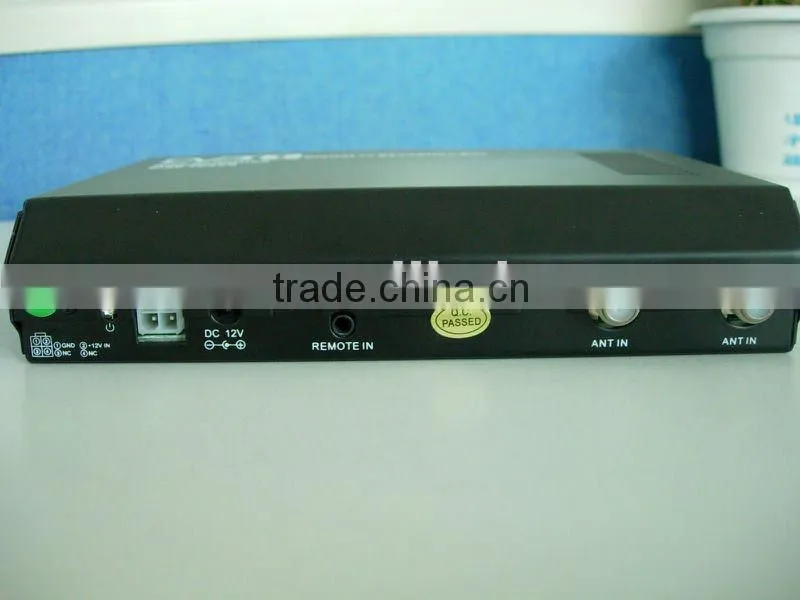

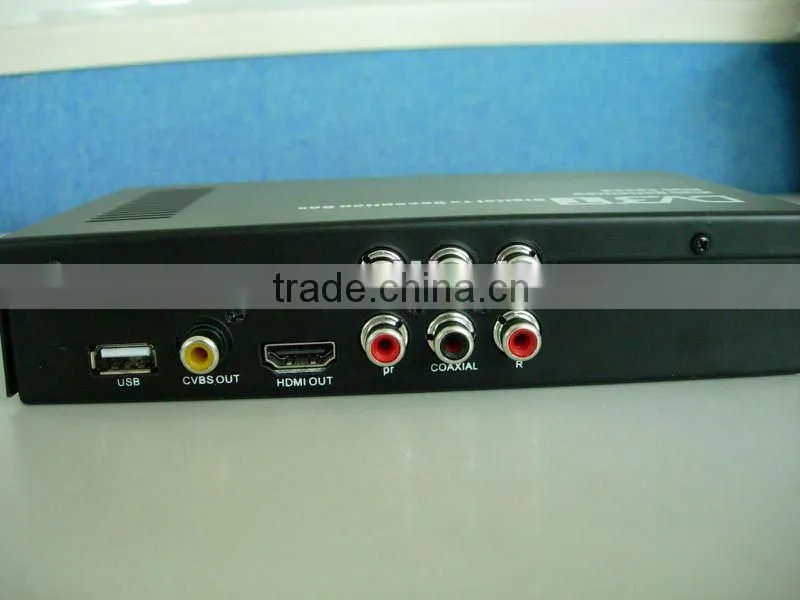

	Connector	video output connector,component(Y,Pb,Pr)output,HDMI output, coaxial output connector Stereo audio output, USB port,power supply port 2 antennas jacks Remote control input
	Power	12V 8W
	Size	178x116x37mm
	Weight	around700g
