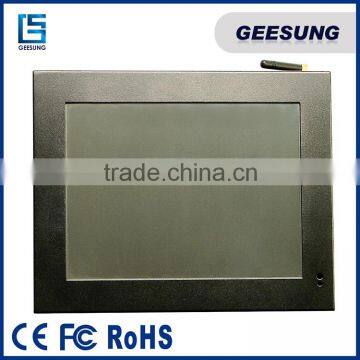

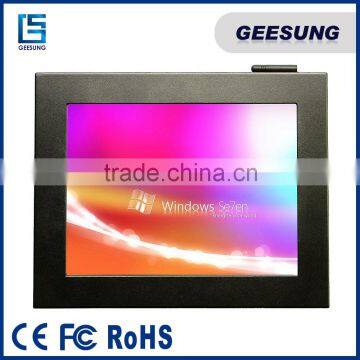

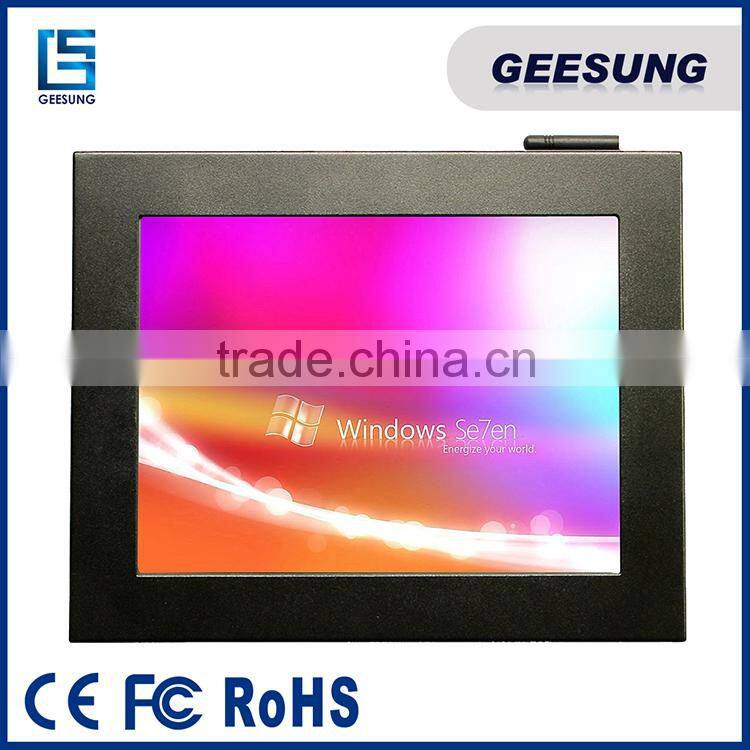

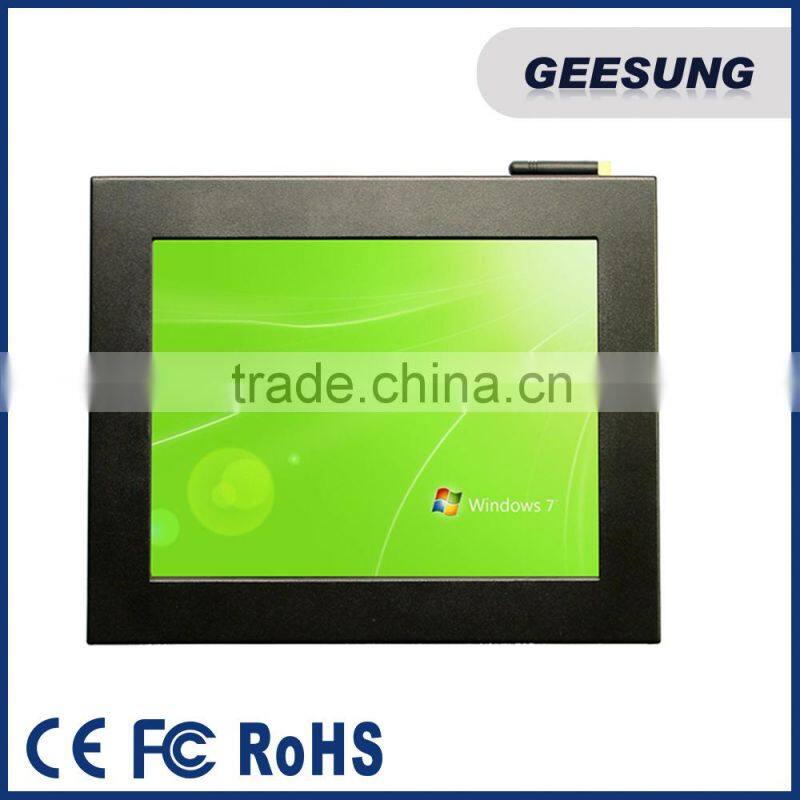

On Board Intel Atom D525 10 Inch Lcd Panel pc

On board Intel Atom D525 10 inch lcd panel pc

Panel PC

Fanless Ultra slim Panel PC

Product Features

n          Standard with  Intel® Atom^TM    Dual-core processor

n          High brightness ,Full view angle IPS TFT panel

n          Multi-directional heat- releasing structure

n          Built-in W-Lan Antenna(802.11b/g/n)

n          Ultra slim metal design , beautiful ,durable and rugged

n          Independent graphics NVIDIA ION2  and support 1080p HD photo quality

SBC Model      ALL IN ONE special & professional SBC

CPU            On board Intel® Atom  D525 1.8GHz dual core

BIOS           Award BIOS 4/8Mbit SPI Flash ROM

Chipset        Intel NM10 Express Chipset

Memory         2×204-pin DDR3 DIMM up to 4GB

Graphics      Independent Graphics NVIDIA ION2 and support 1080p HD photo quality

Audio  Card           Realtek ALC662 high Definition audio codec

Network           2×Realtek RTL 8111E Gigabit Ethernet controller,(Wireless Wifi)

I/O            4×USB 2×COM 1×VGA/LAN/HDMI/Audio OUT/MIC IN/S/PDIF/POWER DC

Hardisk interface            2.5”SATA (SSD optional )

Watchdog          Support system reset grade   0~255

Front panle grade    IP65

Power supply            DC 12V input

Monitor size        9.7"

Touch type      4 –wires resistive touch

Surface hardness        3H

Transmittance         ≥80%

Sensitive           < 10ms

Resolution          1024× 768

Brightness            400cd/m2(Typ)

Contrast           700:1

LCD color       16.7M colors

Pixel Pitch           0.264 x 0.264

Life time       Single-point 10000,000 times , Draw lines 100,000 times

Operating temperature      -20°C~60°C

Storage temperature        -30°C~80°C

Working Humidity        5%—95%,40°C,Non –condensing

Vibration             5-100Hz,Sine wave,11.76m/S2,1minute  X,Y,Z directions,10 times / direction

Shock           294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case            Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways     Rackmount , Embeded , wall mount ,VESA bracket

Shock           294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case            Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways     Rackmount , Embeded , wall mount ,VESA bracket

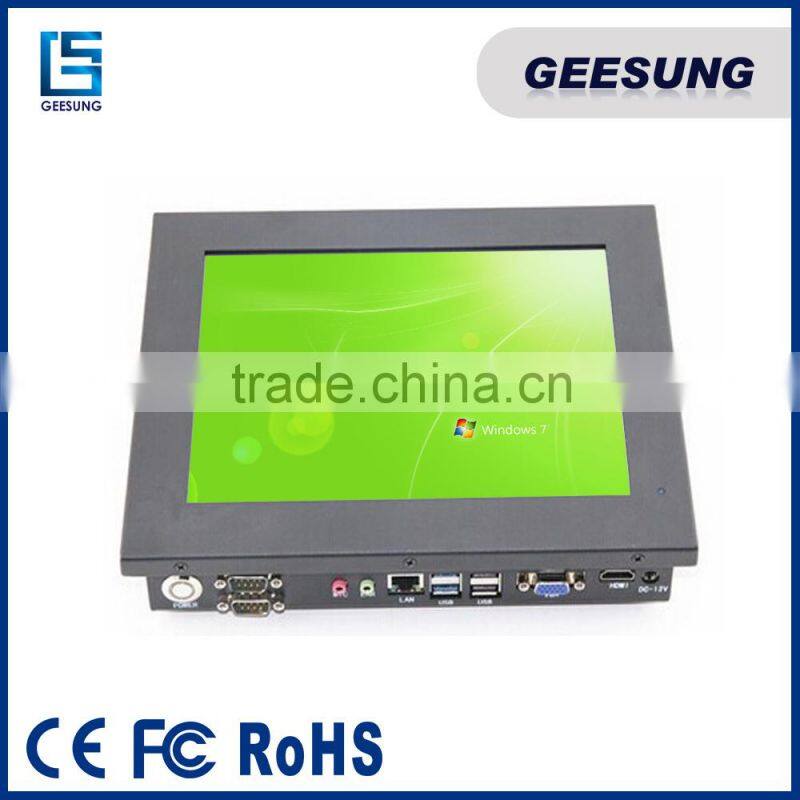

I/O Interface

1×VGA

1×HDMI

1×Gigabit LAN

4×USB

1×Audio OUT

1×MIC IN

1×S/PDIF

2×COM

1×POWER DC IN

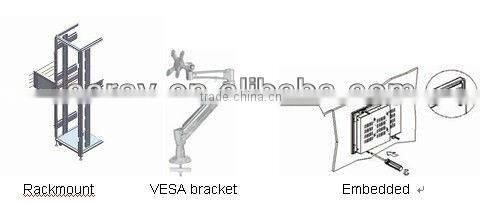

Installation Ways
