CVT160 single column new manual vertical lathe machine China vertical lathe machine

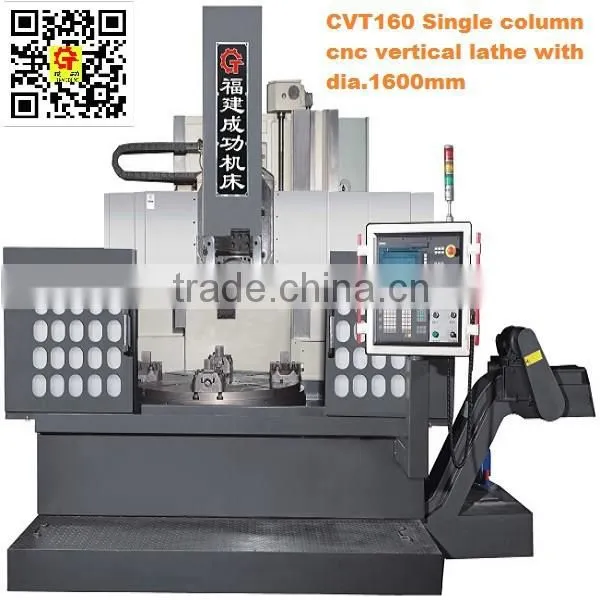

Lathe Machine picture:
Technical parameter:
Specification |
Unit |
Model CVT160 |
Max. turning diameter |
mm |
1600 |
Table diameter |
mm |
1400 |
Max. height of work piece(H) |
mm |
1000 |
Max. weight of work piece(W) |
kg |
5000 |
Speed range of table(16steps) |
r/min |
5-160 |
Feeding range of tool holder(Stepless) |
mm |
0.2-500 |
Vertical tool rest ram stroke |
mm |
800 |
Travel of cross rail |
mm |
760 |
Rapid traverse of tool holder |
mm /min |
3000 |
Swing angle of vertical tool holder |
±o |
30 |
Horizontal travel of tool holer |
mm |
915 |
Max cutting force of vertical tool holder |
KN |
25 |
Max torque of table |
KN.m |
25 |
Height of tool bar section |
mm |
40 |
X/Z aixs feed motor |
N.m |
27 |
Power of main motor |
KW |
22 |
Overall dimensions of machine (L×W×H) |
mm |
2803×2950×3550 |
Weight of machine(approx) |
Kg |
12580 |
Note: Manufacturer reserves the right to improve & modify without prior notice.
Features:
1. The series of machines is suitable for rough and and fine machining of ferrous metal, nonferrous metal and part nonmetal with high speed steel and hard alloy tool, on the machine, inner and outer cylinder, tapering, surfacing grooving and boring can be carried out.
2. It adopts AC servo motor, import drive and bell lead screw to change general type to CNC one.
3. Main transmission adopts AC servo motor through 16 steps spindle speed mechanism to perform speed range of table.
4. The work table uses dynamical pressure slide-way and NN30 dual cylinder roller bearing. It features high bearing capacity and revolving precision.

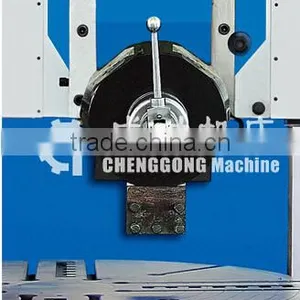

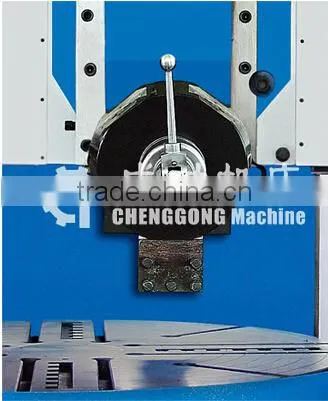

5. Pentagonal tool slide is set on the vertical tool head, square tool slide is set on the side tool head. Both tool heads are balanced hydraulically.
Packaging detail: Dismantled into fumigated wood cases, loaded into containers and fastened by iron cable.
Shipping: 2-3 months
Engineers available to service machinery overseas.
Basic Information
Product/Service (We Sell): Single & Double columns Vertical Lathe, CNC single & double columns Vertical Lathe, Horizontal milling & boring machines etc.
Main products:
Single-column vertical lathe: C5112, 5116E
Single-column CNC vertical lathe:CK518, CK5112G, CK5116G
Double-column programmed vertical lathe:CVT280, 350,400,500,630
Double-column CNC vertical lathe: SCVT280,350,400,500,630
Horizontal milling & boring machine: TX6111T, TX6111T/1, TX6111T/2

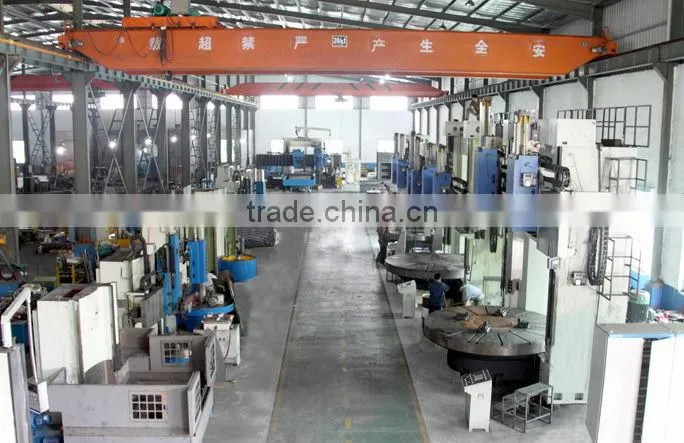

Factory Information
Factory Size (ters): 250 acres
Factory Location: Fujian, China
Number of Production Lines: 3
Number of R&D Staff: 21 - 30 People
Number of QC Staff: 21 - 30 People
Contract Manufacturing: OEM Service Offered Design Service Offered
Installation: Engineers available overseas
Payment terms: TT with 40% downpayment; 100% LC at sight
Trade terms: Depend on discussion
Guarantee and After-sale Service:
One year guarantee for whole machine
24 hours technical support by e-mail or by fax
Calling or door-to-door service
User English manual and detailed videos
