CVT160 Single Column VTL CNC VTL Machine For Sale

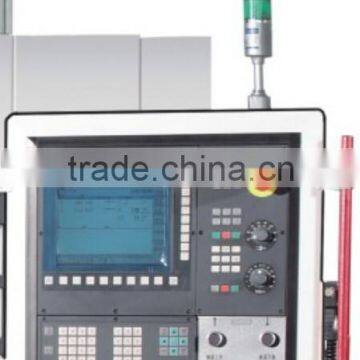

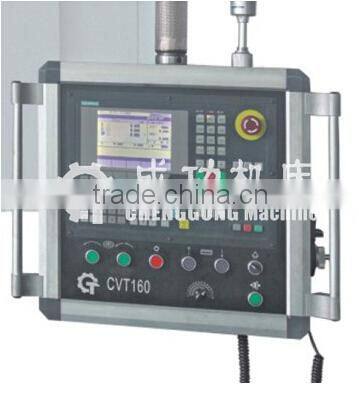

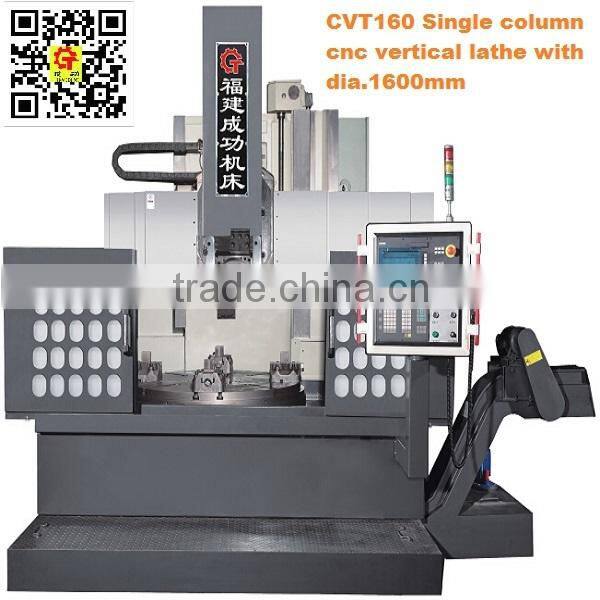

Machine picture:
Technical parameter:
Specification |
Unit |
Model CVT160 |
Max. turning diameter |
mm |
1600 |
Table diameter |
mm |
1400 |
Max. height of work piece(H) |
mm |
1000 |
Max. weight of work piece(W) |
kg |
5000 |
Speed range of table(16steps) |
r/min |
5-160 |
Feeding range of tool holder(Stepless) |
mm |
0.2-500 |
Vertical tool rest ram stroke |
mm |
800 |
Travel of cross rail |
mm |
760 |
Rapid traverse of tool holder |
mm /min |
3000 |
Swing angle of vertical tool holder |
±o |
30 |
Horizontal travel of tool holer |
mm |
915 |
Max cutting force of vertical tool holder |
KN |
25 |
Max torque of table |
KN.m |
25 |
Height of tool bar section |
mm |
40 |
X/Z aixs feed motor |
N.m |
27 |
Power of main motor |
KW |
22 |
Overall dimensions of machine (L×W×H) |
mm |
2803×2950×3550 |
Weight of machine(approx) |
Kg |
12580 |
Note: Manufacturer reserves the right to improve & modify without prior notice.
Features:
1. The series of machines is suitable for rough and and fine machining of ferrous metal, nonferrous metal and part nonmetal with high speed steel and hard alloy tool, on the machine, inner and outer cylinder, tapering, surfacing grooving and boring can be carried out.
2. It adopts AC servo motor, import drive and bell lead screw to change general type to CNC one.
3. Main transmission adopts AC servo motor through 16 steps spindle speed mechanism to perform speed range of table.

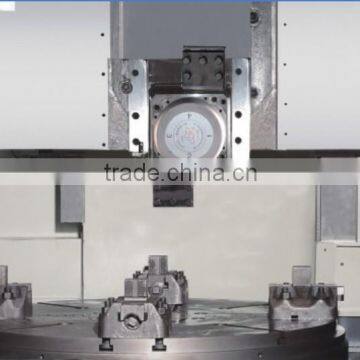

4. The work table uses dynamical pressure slide-way and NN30 dual cylinder roller bearing. It features high bearing capacity and revolving precision.

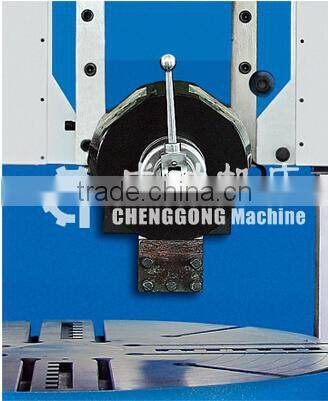

5. Pentagonal tool slide is set on the vertical tool head, square tool slide is set on the side tool head. Both tool heads are balanced hydraulically.
Packaging detail: Dismantled into fumigated wood cases, loaded into containers and fastened by iron cable.
Shipping: 2-3 months
Engineers available to service machinery overseas.
Q1. How about your Machine Service?
A. We are supply machine operation and maintenance training and give warranty 1-2 years.
We are supply install service in customer factory, we also can supply installation video if you need.
Q2. How about your delivery time?
A. Loading port: Xiamen port. Or according to your requirement.
General 1-3 months for delivery time.
Q3. How about your payment terms?
A. TT (with 30% deposit)
L/C at sight
Western union
Q4. How to arrive your factory?
A. Line1. Choose to Quanzhou Railway Station. It take 30mins from station to our factory by car.
Line2. Choose to Jinjiang Airport. It take 40mins from airport to our factory by car.
Line3. Choose to Xiamen Airport. It take 1 hour from airport to our factory by car.
We are ready to convenience you to visit us. More support just feel easy to inquiry us.
Why choose us?
√ We own a very strong R&D team and good experienced engineer group in our factory.
√ All our products starting from planning, developing, designing, producing, assembling, testing to final delivering are based on the customer’s requirement.
√ To achieve the highest quality and customer trust on our products, we never stop our technology improvement and know-how upgrade.
√ We are original import production equipments from Spain NICOLAS CORREA brand for guarantee our machine main parts quality.
√ We have our own casting factory with mature tech for casting body and parts more than 20 years.
√ We are design and production machines under the Taiwan and Europe standard.
Your detailed inquiry will be highly appreciated,we are looking forward to your reply!
