C5116E-2 Single column China vertical lathe conventional vertical lathe

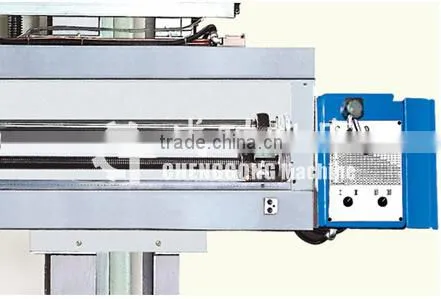

Machine pictures:
Technical parameter:
Specification |
Unit |
Model C5116E-2 |
Max. turning diameter |
mm |
1600 |
Table diameter |
mm |
1400 |
Max. height of work piece(H) |
mm |
1500 |
Max. weight of work piece(W) |
kg |
5000 |
Speed range of table(16steps) |
r/min |
5-160 |
Feeding range of tool holder(12steps) |
mm |
0.8-86 |
Vertical tool rest ram stroke |
mm |
1000/1250 |
Horizontal travel of side tool holder |
mm |
630 |
Vertical travel of side tool holder |
mm |
980 |
Max. turning diameter of side tool head |
mm |
1400 |
Travel of cross rail |
mm |
1250 |
Rapid traverse of tool holder |
mm /min |
1800 |
Swing angle of vertical tool holder |
±o |
30 |
Max. cutting force of tool holder |
KN |
25 |
Max. cutting force of side tool holder |
KN |
20 |
Max. torque of table |
KN.m |
25 |
Height of tool bar section |
mm |
40 |
Power of main motor |
KW |
22/30 |
Overall dimensions of machine(L×W×H) |
mm |
2800×3000×3660 |
Weight of machine(approx) |
Kg |
14500 |
Note: Manufacturer reserves the right to improve & modify without prior notice.
Features:
1. This machine is used for various rough and finish turnings including internal and external cylindrical surface, conical surface, end face and grooving.
2. The work table uses dynamical pressure slide-way and NN30 dual cylinder roller bearing. It features high bearing capacity and revolving precision.
3. Pentagonal tool slide is set on the vertical tool head, square tool slide is set on the side tool head. Both tool heads are balanced hydraulically.
4. The machine is controlled by PLC. With the DRO, it is of high reliability.
5. The machine has good shape and it is easy to operate.
6. The side tool head and the taper accessories are provided according to special demands.
Packaging detail: Dismantled into fumigated wood cases, loaded into containers and fastened by iron cable.
Shipping: 2-3 months
Engineers available to service machinery overseas.
Workshop video
Production equipment
Basic Information
Product/Service (We Sell): Single & Double columns Vertical Lathe, CNC single & double columns Vertical Lathe, Horizontal milling & boring machines etc.
Main products:
Single-column vertical lathe: C5112, 5116E
Single-column CNC vertical lathe:CK518, CK5112G, CK5116G
Double-column programmed vertical lathe:CVT280, 350,400,500,630

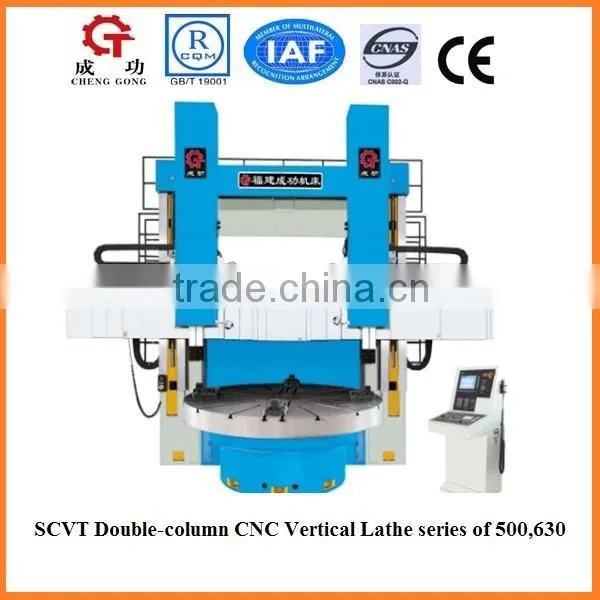

Double-column CNC vertical lathe: SCVT280,350,400,500,630

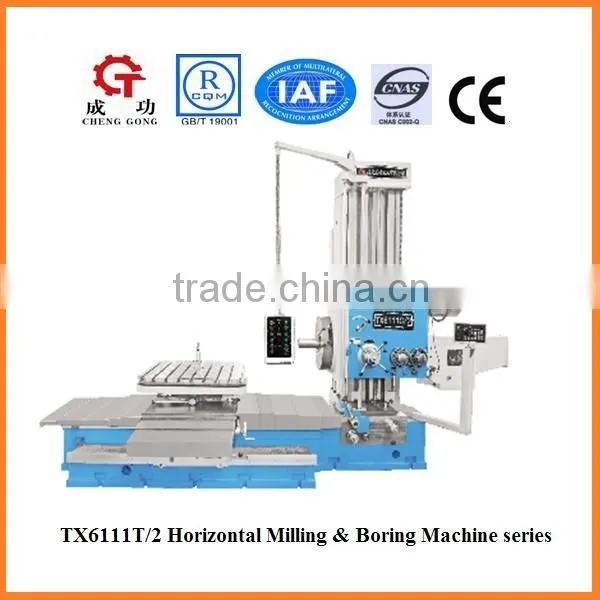

Horizontal milling & boring machine: TX6111T, TX6111T/1, TX6111T/2
Factory Information
Factory Size (ters): 250 acres
Factory Location: Fujian, China
Number of Production Lines: 3
Number of R&D Staff: 21 - 30 People
Number of QC Staff: 21 - 30 People
Contract Manufacturing: OEM Service Offered Design Service Offered
Installation: Engineers available overseas
Payment terms: TT with 40% downpayment; 100% LC at sight
Trade terms: Depend on discussion
Guarantee and After-sale Service:
One year guarantee for whole machine
24 hours technical support by e-mail or by fax
Calling or door-to-door service
User English manual and detailed videos
Please contact us if you have any questions or needs about our products. Thanks.
