15 inch touch screen HDMI open frame monitor

Specifications

1.Type: Resistive
2.Resolution: 1024 x 768
3.Interface Type: D-Sub, DVI, Serial, USB, RS232/TV/AV/HDMI

Screen	15 inches (4:3 diagonal)
resolution	1024(H)×768(V) pixel
Input interface	1 VGA video input,1 video input
video input format	analogue RGB signal
TV system	PAL/ NTSC/SECAM wide application range
touch function connector	USB (RS232 optional)
Operating system	WIN9X,2000,ME,CE/UNIX WIN9X,2K,XP,CE,UNIX
Power consumption	<30W
Working Voltage	DC 11V-15V
Pixel pitch	0.285 mm
Response time	10.4ms
OSD	remote control OSD
Brightness	400 cd/m2
Wide Viewing Angle	170° /160° (Horizontal/Vertical)
Working temperature	0°C-50°C
Storage temperature	-20°C-70°C
IR/FM frequency	FM—88.9MHZ; IR—2.3MHZ/2.8MHZ
accessories	1pcs LCD Monitor-1PCS 1pcs Stand Shelf-1PCS 1pcs VGA Cable 1pcs Instruction Manual 1pcs AC/DC Power Some Screw for Fixing the Shelf

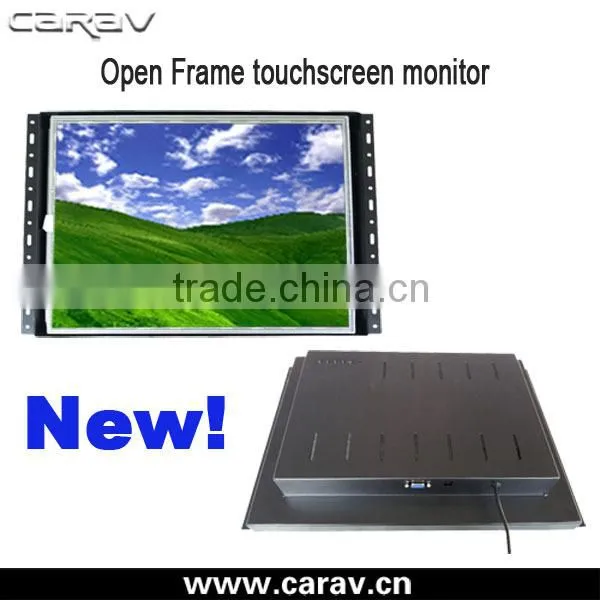

Front side picture:

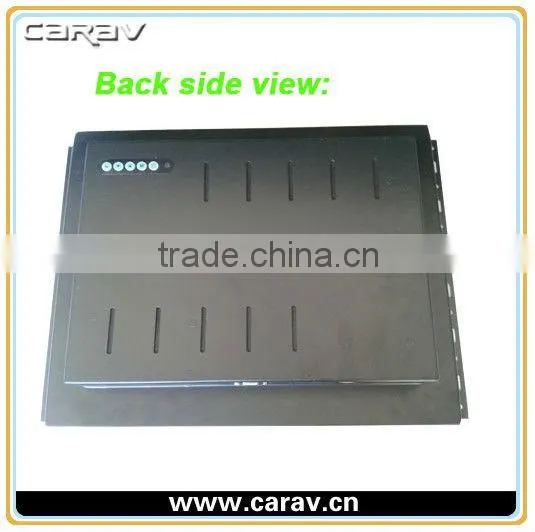

Back side picture:

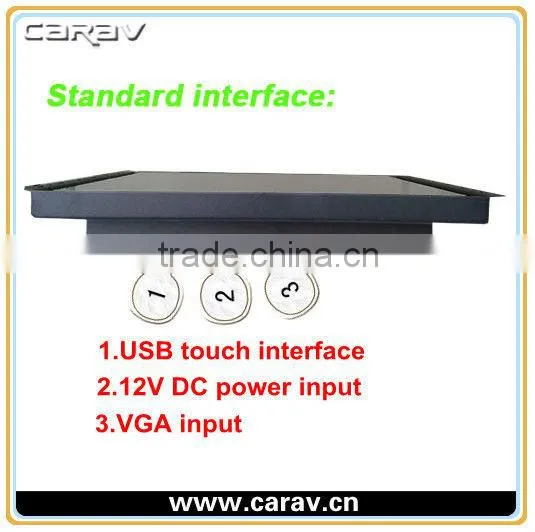

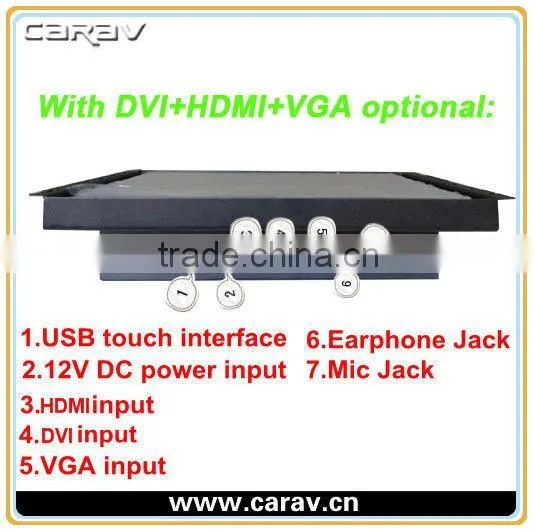

Two kind of the USB touch interface:



1.The USB touch interface coming out from the case:



2.The USB touch interface is seperately:







Real pictures for your reference:















CE RoHS is approval:





About us:





We are 5 years professional car products manufacturer. We can give you full technical support and good after-sale service We could offer the best competitive price We could supply unique items Our products have certificates like CE, FCC and RoHS etc, also LSCD which is needed in European countries.

Our company has strong ability in ODM project. We have good and successful experiences of working with the famous brand companies overseas.

We always adhere to the guiding principle of customer satisfaction to meet different market demands





Open frame Touch Screen LCDs



We offer full range of Open Frame LCD monitor which ideal and cost-sensitive for Point of Sale, interactive information Kiosks,Casino, Video Game consoles, hospital and industrial applications. Our Open Frame LCD monitor integrated with a LCD panel and AD controller board kit onto a metal chassis and is sold as a finished product. In addition video interfaces are universal.eg. Analogue RGB,

composite video, DVI,Svedio ect. In addition, our products are also have compliance marks such as CE, RoHS the products can be used just it were a industrial monitor.



These open frame LCD monitors can incorporate with touch screens so that they can be used as touch screen open frame monitors.Our goal is to supply the appropriate touch technology on high-quality displays with additional customization to meet the exact requirements of customers.



Our open frame LCD monitor is designed for easy integration into industrial machinery and kiosks.



The display features a high resolution panel with wide viewing angles and high brightness display.



Multi-Touch



Multi-touch LCD monitors are perfect for retail, hospitality, healthcare and digital signage applications requiring gesture support specifically designed into Microsoft's latest Windows® 8 operating system.



We will also take part in the HK far every year:





Good news:



Now the price for our touch monitors is cheaper than before, it is a good chance for you to order from us!



In fact, we can also supply 8"12"17",19" 22",If you have any requirements, pls contact with me .
