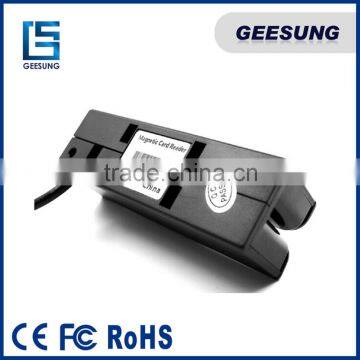

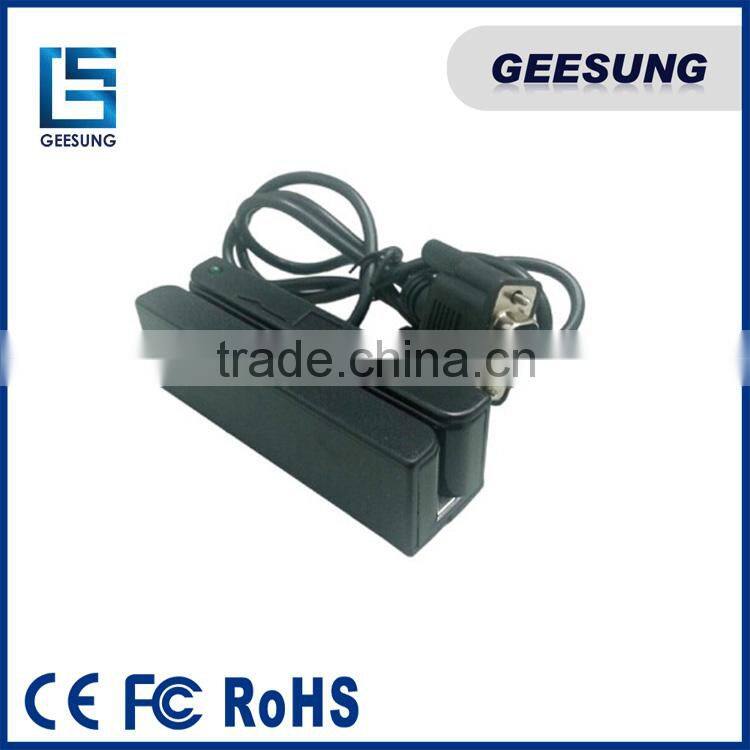

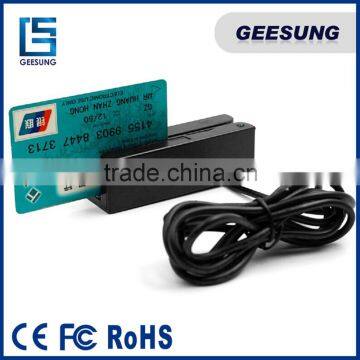

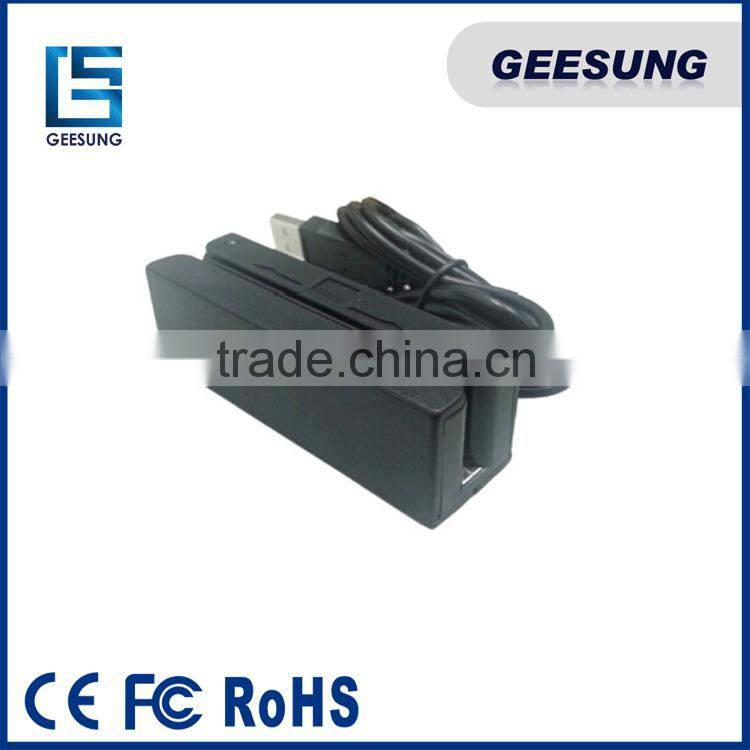

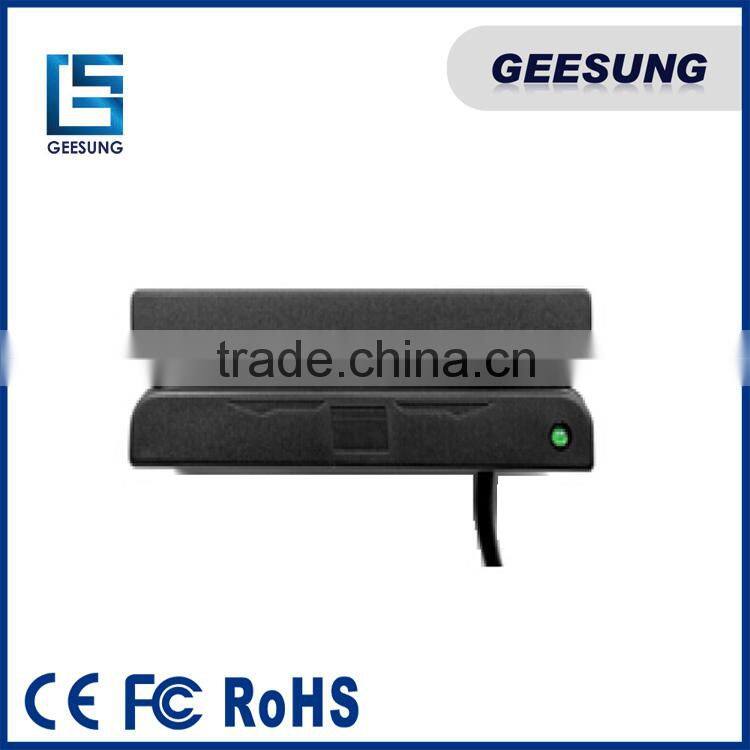

Pos MSR,3 Tracks Swipe Reader,RS232 Magnetic Reader

Name: Pos MSR,3 Tracks Swipe Reader,RS232 Magnetic Reader
Brand: Carav or OEM
SKU: 105374835
Availability: InStock

US$ 15.00 - 18.00 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Carav or OEM

Model Number:

CCS90

Shenzhen Carav Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Carav or OEM

Model Number CCS90

Pos MSR,3 Tracks Swipe Reader,RS232 Magnetic Reader

Product Description

brief introduction for Card reader:

1. Magnetic card

2.3 track read

3.USB2.0 interface

Communications	USB2.0,USB-OTG(Android 3.1 above)
Maximum power consumption	100 mW
Temperature	Commercial-grade:-20°∼ 60 °C Industrial-grade:-20°∼ 60 °C
Humidity	90% non- condensing
Anti-static interference	15KV
Magnetic interference resistance	19Oersted
Vibration resistance	Amplitude 0.35mm,Frequency 10-55Hz,Three axis directions sweep vibration
Insulation Resistance	Hot and humid circumstances(40°,95%) Insulation resistance should not be less than 5MΩ
Dimensions	90mm(L) ×34mm(W) × 30mm(H)
Weight	85g
Magnetic card
Selectable tracks	yes
Read card	1/2/3tracks
Swipe	Double direction
Swipe speed	3 ~ 60 inches per second
Head life	Approx 500,000 passes
Parity and LRC checking	Built-in, audible and LED good read and error indicator
Cards supported	ISO 7811,AMMVA,CADMV
