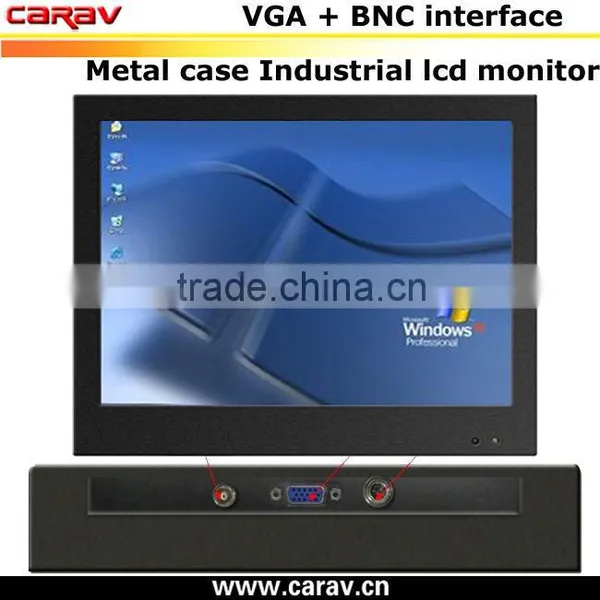

Long Life 24h Work 10.4 Inch Industrial CCTV Monitor,quad Screen,BNC Port for AV Input

US$ 50 - 100 MOQ: 1 Piece

Key Specifications

Products Status:

Stock

Type:

Industrial Monitor

Brand Name:

OEM

Shenzhen Carav Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Industrial Monitor

Brand Name OEM

Model Number CCTV-1008

Place of Origin Guangdong, China

Specifications

For industrial using CCTV monitor
Portable small size 10" industrial monitor
High brightness, high contract, high definition

Item characteristics :

1. Professional narrow frame design. With elegant appearance;

2. Used full-import industrial A+ lcd panel .special for supervisory monitors ;

3. High brightness, high contract, high definition, which improve the Hi-li of pictures;

4.16.7M color, realize the every detail of picture;

5. Adopt newest 3D digital filtering and 3D digital noise reduction technology to remove the obstruction of bright-color and parti-color;

6.5ms quick response time ,removing the smear, clear up the ghost automatically ;

7. Intelligent temperature control fan, environmental-friendly mute;

8. Long life time, stronger stability, the using life time is to be above 60,000hours. full year non-stop work 7*24hours;

9. Full metal case design, with anti-static. Anti-magnetic field, tamper-proof , radiation protection;

10. Multilevel menu display function, easy control;

11. Adopt standard VESA , hanging wall /desktop, easy installation ;

12. Full interface to meet every requirements

LCD Panel size		10.4 lcd CCTV monitor
Item No		CCTV-1008
Panel specification	Panel type	10.4”LCD Panel
	Display dimension(mm)	214(W)*160(H)
	Display ratio	4:3
	Backlight type	CCFL
	Physical Resolution	800*600
	Display color	16.7M
	Brightness	350cd/m²
	Contrast	450:1
	View Angle	150°/140°
	Response time	5ms
	Operating life	60,000hours
Function	Colour system	PAL/NTSC/SECAM
	Menu language	Simplified-Chinese,Traditional-Chinese,English,etc.
	Operating mode	Remote control
I/O interface	D-15 RGB input(VGA)	1
	DVI input	N/A
	HDMI input	N/A
	Aberration(YUV)input(YPbPR)	N/A
	Composite AV input(AV)	1(BNC*1)
	S-VIDEO(YC)	N/A
	Composite AV output(AV)	N/A
Power	Power input	DC12V/2A
	Power consumption	≤18W
	Standby power	≤3W
Work Environment	Operating temperature	0°C—50°C
	Storage temperature	-20°C-60°C
	Operating humidity	10%-90%
	Storage humidity	10%-90%
Related Terms	Installation way	Hanging / Desktop,etc
	product dimension	238.421635(mm)
	Case colour	Black
	Case material	Metal
	Certificate	ISO9001,3C etc
	Net Weight	1.8KG
