HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool

HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool thumbnail-1
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool thumbnail-2
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool thumbnail-3
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool thumbnail-4
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool thumbnail-5
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool thumbnail-6
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool photo-1

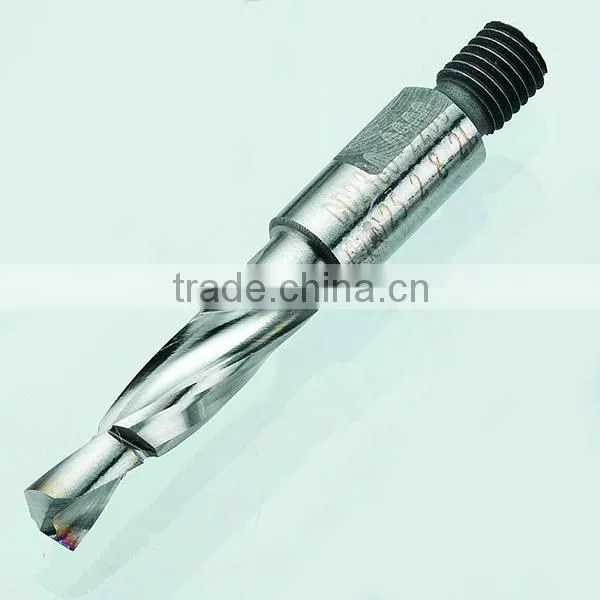

HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool photo-2
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool photo-3
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool photo-4
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool photo-5
HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool photo-6
US$ 30 - 133 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
BW
Model Number:
PDD
Contact Supplier Request Quote Chat Now
Bewise Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
by order
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name BW
Model Number PDD
Type Other, Step Drill
Material High Speed Steel
Use Metal Drilling
Product Description

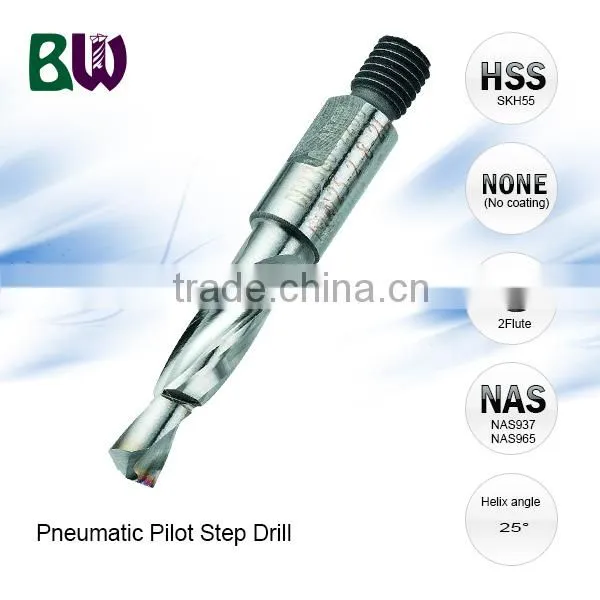

HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool

HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool

Product Name HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool
Place of Origin Taiwan
Material High Speed Steel - SKH55 or other
Type
  • Cutting Tools
  • Aviation Tool
Description
  • Application:
    • Great for general cutting.
    • Apply in machining special material of aerospace industry.
  • Material:High Speed Steel - SKH55
  • Flute:2Flute
  • coating type: no coating or Can be customized (TiAlN/DLC etc.)
  • Helix angle : 25°
  • All of our cutters can be customized exclusively for our customers.

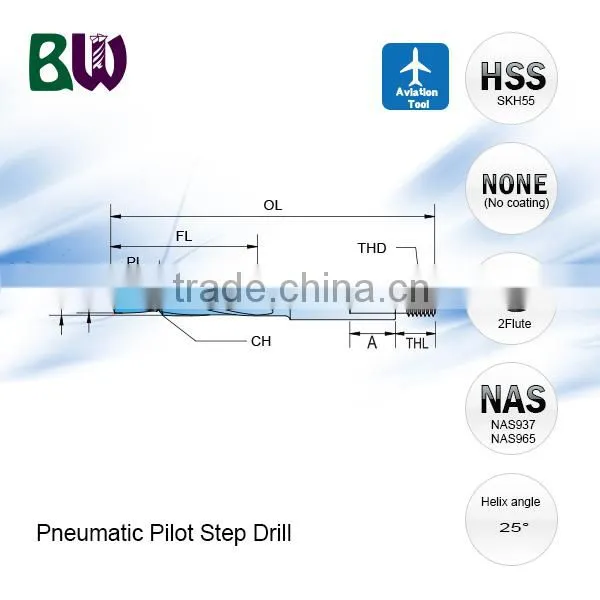

Pilot Step Drill Specification:

HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool

unit:inch
Pilot Step Drill
Order Code Flute
Z		 Body DIA.
FD		 Pilot DIA.
PD		 Pilot Length
PL		 Flute Length
FL		 Wrench Flats
A		 Helix Angle
 Pilot Angle Total Length
OL		 Threaded Shank Threaded Length
DD1285-1120-50-2-8 2 0.1285 0.112 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1360-1190-50-2-8 2 0.136 0.119 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1405-1240-50-2-8 2 0.1405 0.124 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1460-1240-50-2-8 2 0.146 0.124 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1440-1280-50-2-8 2 0.144 0.128 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1470-1280-50-2-8 2 0.147 0.128 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1495-1350-50-2-8 2 0.1495 0.135 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1520-1350-50-2-8 2 0.152 0.135 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1540-1400-50-2-8 2 0.154 0.14 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1562-1400-50-2-8 2 0.1562 0.14 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1570-1430-50-2-8 2 0.157 0.143 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1590-1460-50-2-8 2 0.159 0.146 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1610-1460-50-2-8 2 0.161 0.146 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1660-1510-50-2-8 2 0.166 0.151 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1696-1530-50-2-8 2 0.1696 0.153 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1719-1550-50-2-8 2 0.1719 0.155 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1730-1560-50-2-8 2 0.173 0.156 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1770-1600-50-2-8 2 0.177 0.16 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1800-1650-50-2-8 2 0.18 0.165 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1820-1650-50-2-8 2 0.182 0.165 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1850-1710-50-2-8 2 0.185 0.171 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1875-1710-50-2-8 2 0.1875 0.171 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1890-1760-50-2-8 2 0.189 0.176 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1910-1760-50-2-8 2 0.191 0.176 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1935-1760-50-2-8 2 0.1935 0.176 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1960-1790-50-2-8 2 0.196 0.179 0.5 1.5 0.25 25° 135° 2 1/4-28 0.25
DD1990-1870-50-2-12 2 0.199 0.187 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2010-1870-50-2-12 2 0.201 0.187 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2030-1870-50-2-12 2 0.203 0.187 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2040-1900-50-2-12 2 0.204 0.19 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2055-1900-50-2-12 2 0.2055 0.19 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2090-1900-50-2-12 2 0.209 0.19 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2130-1980-50-2-12 2 0.213 0.198 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2188-2020-50-2-12 2 0.2188 0.202 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2210-2050-50-2-12 2 0.221 0.205 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2280-2120-50-2-12 2 0.228 0.212 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2340-2180-50-2-12 2 0.234 0.218 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2344-2180-50-2-12 2 0.2344 0.218 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2380-2200-50-2-12 2 0.238 0.22 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2420-2270-50-2-12 2 0.242 0.227 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2460-2340-50-2-12 2 0.246 0.234 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2500-2340-50-2-12 2 0.25 0.234 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2570-2410-50-2-12 2 0.257 0.241 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2610-2450-50-2-12 2 0.261 0.245 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2658-2490-50-2-12 2 0.2658 0.249 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2600-2490-50-2-12 2 0.26 0.249 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2720-2560-50-2-12 2 0.272 0.256 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2770-2650-50-2-12 2 0.277 0.265 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2810-2650-50-2-12 2 0.281 0.265 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2812-2650-50-2-12 2 0.2812 0.265 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2900-2780-50-2-12 2 0.29 0.278 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2950-2800-50-2-12 2 0.295 0.28 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD2969-2800-50-2-12 2 0.2969 0.28 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3020-2890-50-2-12 2 0.302 0.289 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3125-2960-50-2-12 2 0.3125 0.296 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3160-3010-50-2-12 2 0.316 0.301 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3230-3120-50-2-12 2 0.323 0.312 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3281-3120-50-2-12 2 0.3281 0.312 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3320-3120-50-2-12 2 0.332 0.312 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3390-3270-50-2-12 2 0.339 0.327 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3438-3270-50-2-12 2 0.3438 0.327 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3480-3310-50-2-12 2 0.348 0.331 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3580-3430-50-2-12 2 0.358 0.343 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3594-3430-50-2-12 2 0.3594 0.343 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3680-3570-50-2-12 2 0.368 0.357 0.5 2.5 0.25 25° 135° 3 1/4-28 0.25
DD3750-3590-50-4-12 2 0.375 0.359 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD3770-3590-50-4-12 2 0.377 0.359 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD3860-3590-50-4-12 2 0.386 0.359 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD3906-3760-50-4-12 2 0.3906 0.376 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD3970-3850-50-4-12 2 0.397 0.385 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD4040-3900-50-4-12 2 0.404 0.39 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD4062-3900-50-4-12 2 0.4062 0.39 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD4130-3900-50-4-12 2 0.413 0.39 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD4219-4050-50-4-12 2 0.4219 0.405 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD4375-4210-50-4-12 2 0.4375 0.421 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD4531-4370-50-4-12 2 0.4531 0.437 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD4688-4820-50-4-12 2 0.4688 0.452 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD4844-4680-50-4-12 2 0.4844 0.468 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD5000-4830-50-4-12 2 0.5 0.483 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD5312-5140-50-4-12 2 0.5312 0.514 0.5 2.5 0.25 25° 135° 3 3/8-24 0.25
DD5625-5460-50-4-16 2 0.5625 0.546 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD5938-5610-50-4-16 2 0.5938 0.561 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD6250-5920-50-4-16 2 0.625 0.592 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD6562-6240-50-4-16 2 0.6562 0.624 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD6875-6550-50-4-16 2 0.6875 0.655 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD7188-6860-50-4-16 2 0.7188 0.686 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD7500-7180-50-4-16 2 0.75 0.718 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD7812-7490-50-4-16 2 0.7812 0.749 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD8125-7490-50-4-16 2 0.8125 0.749 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD8438-8110-50-4-16 2 0.8438 0.811 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD8750-8430-50-4-16 2 0.875 0.843 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD9062-8740-50-4-16 2 0.9062 0.874 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD9375-9050-50-4-16 2 0.9375 0.905 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD9688-9360-50-4-16 2 0.9688 0.936 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD10000-9680-50-4-16 2 1 0.968 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD10313-10000-50-4-16 2 1.0313 1 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD10625-10300-50-4-16 2 1.0625 1.03 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD10938-10620-50-4-16 2 1.0938 1.062 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD11250-10920-50-4-16 2 1.125 1.092 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD11562-11240-50-4-16 2 1.1562 1.124 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD11875-11550-50-4-16 2 1.1875 1.155 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD12188-11870-50-4-16 2 1.2188 1.187 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD12500-12170-50-4-16 2 1.25 1.217 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD12812-12490-50-4-16 2 1.2812 1.249 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD13126-12810-50-4-16 2 1.3126 1.281 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD13438-13120-50-4-16 2 1.3438 1.312 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD13750-13420-50-4-16 2 1.375 1.342 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD14062-13740-50-4-16 2 1.4062 1.374 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD14375-14060-50-4-16 2 1.4375 1.406 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD14688-14370-50-4-16 2 1.4688 1.437 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25
DD15000-14670-50-4-16 2 1.5 1.467 0.5 3.5 0.25 25° 135° 4 3/8-24 0.25



 Milling Cutter Products For Aviation

HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool

keywords:step drill,pneumatic drill,pneumatic air tool,step drill bit,Drill Bit, hss drill,drill machine,Aerospace,Pneumatic tool,Aviation Tool,Cutting tools,Milling Cutter

HSS Material

High Speed Steels

  • Production:Normally it is made by using electric furnace, recently it has been produced by powder metallurgy for high speed steel, which makes a very fine carbide particles uniformly distributed. On the substrate, the material life is prolonged.
  • Application:Being material of various cutting tools, cutter, drill, hob, saw blade, and high-end mold.

It is also named as wind steel or sharp steel, which means it can be hardened in air and sharp in quenching. A kind of complex alloy containing tungsten, molybdenum, chromium, vanadium, cobalt and carbide forming component .. which total elements content is 10~ 25% .. It may still maintain quite high hardness during high speed machining that caused high temperature (about 500 Centigrade) surrounding. The major benefit of high speed steel is its HRC above 60—Red Hardness.For carbon tool steel, after quenching and low temperature backfire , it remains high hardness under room temperature. However, the hardness will be reduced speedily when it is over 200 Centigrade and the hardness will be reduced into the same situation of backfire if the temperature up to 500 Centigrade, which already lost its ability of cutting metal. That is not suitable to produce cutting tool. High speed Steel is with good red hardness which may make up for the weakness of carbon tool steel so it can be used in manufacturing cutting tool.

Ralated Standards CNS GB JIS ASTM DIN
Steel Type SKH51 W6Mo5Cr4V2 SKH51 M2 S 6-5-2

Chemical composition (%)		 C 0.8-0.9 0.8-0.9 0.8-0.9 078-0.88 0.86-0.94
Si greater-than over equal to 0.45 0.2-0.4 greater-than over equal to 0.45 0.20-0.45 greater-than over equal to 0.45
Mn greater-than over equal to 0.4 0.15-0.4 greater-than over equal to 0.4 0.15-0.40 greater-than over equal to 0.4
P greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
S greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
Ni greater-than over equal to 0.25 -- greater-than over equal to 0.25 -- --
Cr 3.8-4.5 3.8-4.4 3.8-4.5 3.75-4.50 3.8-4.5
Mo 4.7-5.2 4.5-5.5 4.5-5.5 4.75-5.50 4.7-5.2
W 5.9-6.7 5.50-6.75 5.9-6.7 5.50-6.75 6.0-6.7
V 1.7-2.1 1.75-2.20 1.6-2.1 1.75-2.20 1.7-2.0
Co -- -- -- -- --
Cu greater-than over equal to 0.25 -- greater-than over equal to 0.25 -- --
Mechanical properties
(Hardness)		 Annealing HB greater-than over equal to 262 greater-than over equal to 255 greater-than over equal to 262 -- 240-300
Working Hardness HRC greater-than over equal to 64 greater-than over equal to 63 greater-than over equal to 64 -- greater-than over equal to 64



Ralated Standards CNS GB JIS DIN
Steel Type SKH55 W6Mo5Cr4V2Co5 SKH55 S 6-5-2-5

Chemical composition (%)		 C 0.85-0.95 0.8-0.9 0.8-0.9 0.88-0.96
Si greater-than over equal to 0.45 0.2-0.45 greater-than over equal to 0.45 greater-than over equal to 0.45
Mn greater-than over equal to 0.4 0.15-0.4 greater-than over equal to 0.4 greater-than over equal to 0.4
P greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
S greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
Ni -- 0.20-0.45 -- --
Cr 3.8-4.5 3.75-4.50 3.8-4.5 3.8-4.5
Mo 4.7-5.2 4. 5-5.5 4.7-5.2 4.7-5.2
W 5.9-6.7 5.5-6.5 5.9-6.7 6.0-6.7
V 1.7-2.1 1.75-2.25 1.7-2.1 1.7-2.0
Co 4.5-5.0 4.5-5.5 4.5-5.0 4.5-5.0
Cu -- -- -- --
Mechanical properties
(Hardness)		 Annealing HB greater-than over equal to 269 greater-than over equal to 269 greater-than over equal to 269 240-300
Working Hardness HRC greater-than over equal to 64 greater-than over equal to 64 greater-than over equal to 64 greater-than over equal to 64



Packaging & Shipping

Packaging

Packaging Details : Packaging Boxes + Cushioning material + Plastic box

HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool




Shipping

International Express :

HSS Pneumatic Pilot Step Drill For Aviation Pneumatic Air Tool

Send Inquiry to This Supplier

* Message
0/5000

Want the best price? Post an RFQ now!
Bewise Inc.
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches
