Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > New Style Factory Outlet Low Price Farm Corn Grinding Machine
New Style Factory Outlet Low Price Farm Corn Grinding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spring Machinery High Quality Low Price Swing Arm Grinding MachineNegotiableMOQ: 1 Piece -
New Design Solid Valve Seat & Valve Grinding MachinesNegotiableMOQ: 1 Piece
-
2016 WNJ Professional Professional Saw Blade Grinding MachineNegotiableMOQ: 1 Set
-
Spring Machinery Factory Price Solid Brake Shoe Grinding MachineNegotiableMOQ: 1 Piece
-
New Design Factory Outlet Professional Grinding Ball MachineNegotiableMOQ: 1 Set
Condition
New
Type
Surface Grinding Machine
CNC or Not
CNC
Max. Grinding Diameter
100mm
Max. Grinding Length
400mm
Place of Origin
Zhejiang, China
Brand Name
WNJ
Model Number
M02-9B
Voltage
380V
Power(W)
16.78KW
Dimension(L*W*H)
2300mm*2000mm*2550mm
Weight
3000kgs
Certification
CE,IOS9001:2008
After-sales Service Provided
Engineers available to service machinery overseas
| Item Name | Double Grinding Machine |
| Style | M02-9B |
| Color | Grey/Blue |
| Steel Wire Diameter of Grinding Spring (mm) | Φ1- Φ9 |
| Diameter of Grinding Spring (mm) | ≤100 |
| Height of Grinding Spring (mm) | 20-250(400 customized) |
| Grinding Wheel Size (outside x inside x height) (mm) | Φ450 x 60 |
| Grinding Head Speed | 1,430n/min |
| Machine Size (length x width x height) | 2300x2000x2550mm |
| Net Weight of The Machine | 3000kg |
| Power | 3 phase 380V. AC.50HZ |
| Motor Power(motor 5 pcs) | 16.78 KW |
PRODUCT PARAMETERS

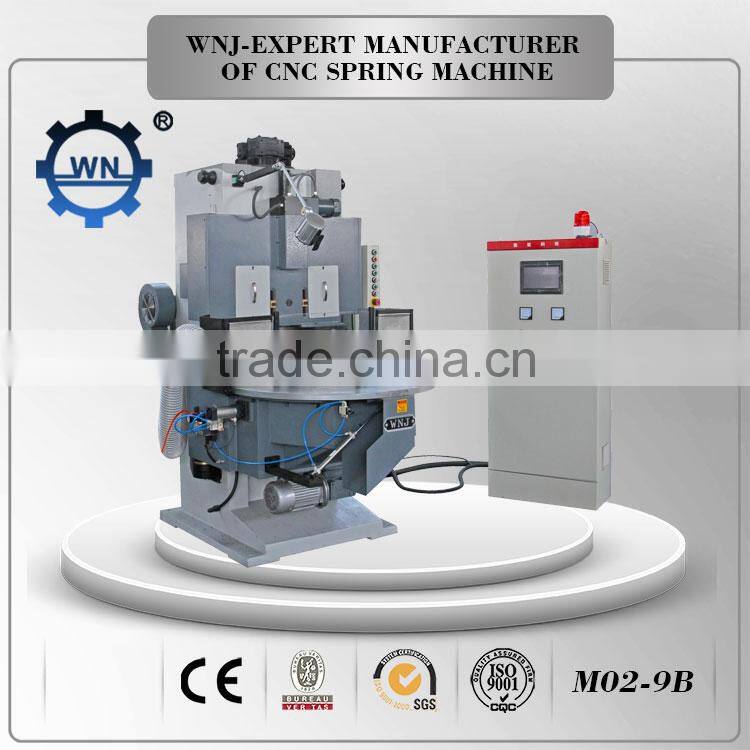

- M02-9 CNC spring end grinding machine is the newly developed grinding spring machine based on the advanced CNC end grinding technology at home and abroad.
- By the utilization of air cylinder ,this device could realize the circulating exchange of feed trays ,in the same time for process of grinding ,loading or unloading the parts ,as well as just feeding for grinding .
- It adopts servo motor to control the grinding wheel and has the functions of automatic inspection, compensation and alarming.
- The feed speed and quantity of the grinding wheel, grinding pressure, rotating speed of the feeding plate all can be programmed on the computer screen.
- This machine is convenient to operate and has a high efficiency and it is the ideal equipment for double-end grinding of large quantity spring.
OUR SERVICE
- Two-years (computer ) &one-year (mechanical) warranty.
- Permanent technical service .
- One week free training with accommodation and food.
- Engineer can be sent aboard for installation, debugging and training.
MAIN PRODUCTS
COMPANY INFORMATION
CERTIFICATION
PARTNERS
AGENTS
FAQ
- What is your machine controller and motors?
- Controllers are imported from Hust, Taiwan. Motors from Sanyo,Janpan.
- Can you offer training in our plant?
- Basically, we have sales and service teams in Euro, Turkey, Korea,Japan, South American, India. If you are out of these countries, our enginner will be sent to your place for training if you need.
- How many years you exported? Do you have CE?
- Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
