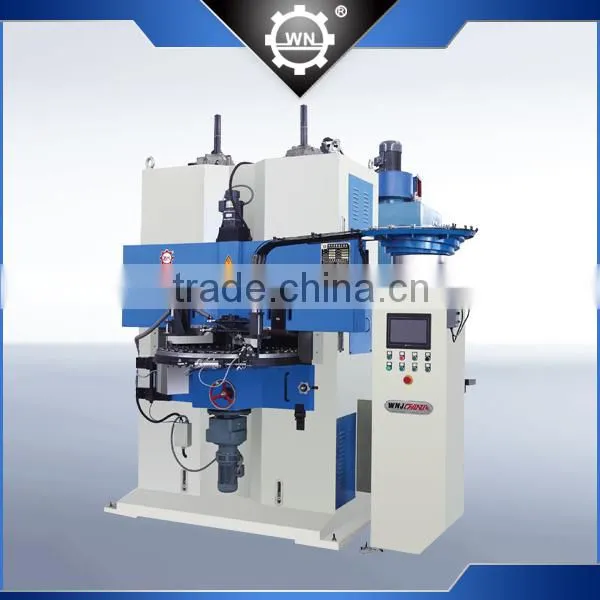

Spring Machinery Factory Price Solid Brake Shoe Grinding Machine

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

WNJ

Zhejiang Omnipotent Spring Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name WNJ

Model Number M04-2.5

Material / Metal Processed Stainless Steel

Automation Automatic

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Power Other, 3 phase 380V. AC.50HZ

Item Name	Spring Grind Machine
Style	M04-2.5
Color	Grey/Blue
Dia of Tray (mm)	Φ580
Diameter of Grinding Spring (mm)	Φ5~ Φ30
Steel Wire Diameter of Grinding Spring (mm)	Φ0.5~ Φ2.5
Height of Grinding Spring (mm)	10-100
Grinding Head Speed	1,400r/min
Grinding Wheel Size (Outside*Height)	Φ440* Φ140*55
Machine Size (Length x Width x Height)	1200 x1300x2000
Net Weight of The Machine	2000kg
Power	3 phase 380V. AC.50HZ
Motor Power(motor 5 pcs)	10.5 KW

PRODUCT PARAMETERS

It is equipped with four grinding stones,which makes rough and precision grinding at one time.It therefore,becomes more efficient compared to traditional grinding machine.
It adopts PLC system of Panasonic ,touch screen control,automatic alarm,easy operation,fixed-frequency governor is used in the rotating speed of tray along with automatic feeder .
The performance evaluation has up to the international standard.
production line is formed to lessen the labor by working with spring coiling machine,temper furnace and other ancilary equipment.
Especially suitable for valve springs,clutch springs and other special-shaped springs in large quantities.
