Help Center2/2 Way Direct Action Brass Solenoid Valve Water Valve QX22 Series
Related Products
-
3/2 Way Direct Action Brass Solenoid Valve Water Valve QX23 SeriesNegotiableMOQ: 1 -
3/2 Way Direct Action Brass Solenoid Valves Water Valve VX31/32/33 SeriesNegotiableMOQ: 1
-
2/2 Way AB Direct Action Series Solenoid Valve (air/water/steam) Water Valve ISO9001NegotiableMOQ: 1
-
2W 2/2 Way Direct Action Big Orifice Solenoid Valve (air/water/steam) Water ValveNegotiableMOQ: 1
-
2W025 High Pressure 2/2 Way Direct Action Smaill Orifice Solenoid Valve (air/water/steam) Water ValveNegotiableMOQ: 1
Specifications
Standard: JB/T 7352-04<valves used for industrial process control>ISO 9001:2000
Stable quality & best delivery time(in stock)
QX22/QX23 series solenoid valve suitable for neutral gas and liquid , including compressed air, natural gases, water, hydraulic oil and technical vacuum.
Compact design, high quality VITON seal. Port size:ZG1/4'', ZG3/8''
- Specification
Model |
Orifice Size |
Cv Value |
Port Size |
Working Pressure (MPa) |
Overall Size |
Power VA |
||||
Min. |
Max.-AC |
Max.-DC |
L |
H |
||||||
QX22-08 |
2.4 |
0.21 |
G1/4’’ |
0 |
20 |
10 |
40 |
75 |
10W |
|
4.0 |
0.43 |
G1/4’’ |
0 |
9 |
6 |
40 |
75 |
|||
QX22-10 |
5.0 |
0.50 |
G3/8’’ |
0 |
6 |
3 |
40 |
75 |
||

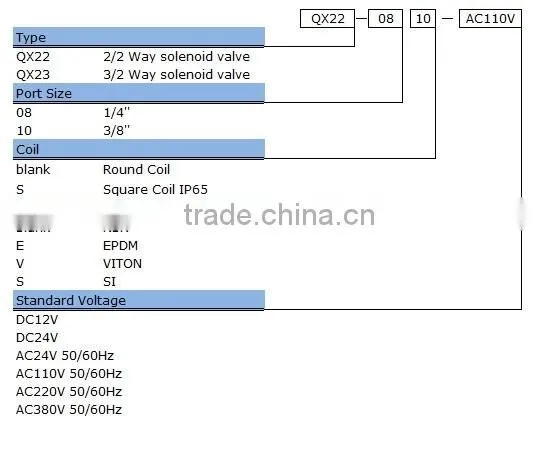

- How to order
Packaging: Carton (or according to customers' requirements)
Loading port: Guangzhou / Shenzhen Seaport
Delivery time: 7-15 days (Depend on your qty)
Sample: Available with freight collected
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.
Factory: a management system in good order.
Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
Stable quality
Competitive price & best delivery
Standard: JB/T 7352-04<valves used for industrial process control>
ISO9001:2000
Customization is available.
