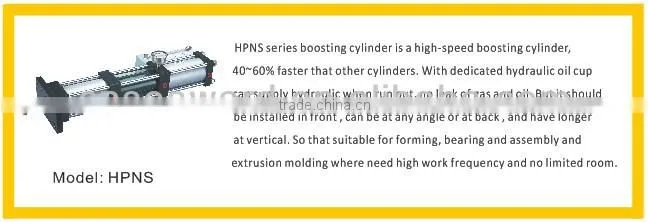

Hydro-pneumatic Booster System;Double Action Hydro-Pneumatic Cylinder; Boosting Cylinder HPNS Series High Speed DesignNegotiableMOQ: 1 -

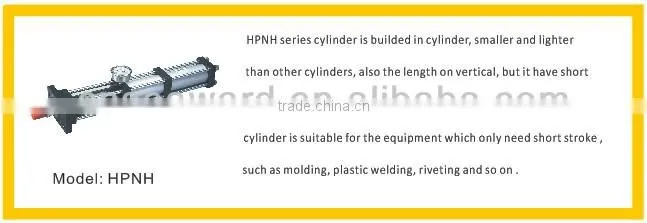

Build-in Hydro-pneumatic Booster System;Double Action Hydro-Pneumatic Cylinder; Boosting Cylinder HPNH SeriesNegotiableMOQ: 1
-
Hydro-pneumatic Booster System;Double Action Hydro-Pneumatic Cylinder; Boosting Cylinder HPNG Series Boosting DesignNegotiableMOQ: 1
-
Booster System Hydro-pneumatic Booster System;Double Action Hydro-Pneumatic Cylinder; Boosting Cylinder HPNL SeriesNegotiableMOQ: 1
-
Hydro-pneumatic Booster System;Double Action Hydro-Pneumatic Cylinder; Boosting Cylinder HPNM Series High Speed DesignNegotiableMOQ: 1
Specifications
Out put pressure boost reach to 25:1;Mainly used for punching, riveting, bending and stamping work;
Leading quality in China.
Boosting Cylinder for stamping

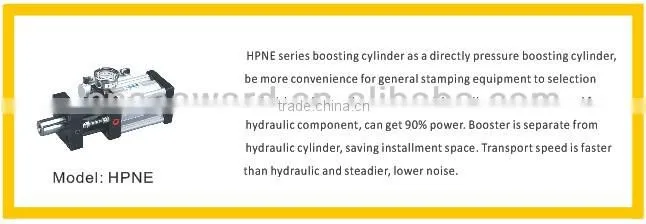

HPNE series Hydro-Pneumatic Cylinder (Direct pressing design) use pure air pressure as power, make the low pressure air to a high pressure oil, output pressure ratio can reach to 25:1, mainly used for punching, riveting, bending stamping operations.
Specifications
Boosting Cylinder for stamping
Motion pattern |
Double Action |
Cylinder bore size |
Ø50, Ø 63, Ø 80 |
Combined stroke |
50mm,100mm,150mm,200mm |
Boost stroke |
5mm,10mm,15mm,20mm |
Theory boost output |
1T,2T,3T,5T,8T |
Pressure range |
4-7 kg/cm2 filtered compressed air |
Fuel oil |
ISO Vg32 |
Temperature |
5~80°C (other temperature can be customized) |
operating speed |
50~700mm/s |
Oil cylinder proof pressure |
210 kg/cm2 |
Air cylinder proof pressure |
15 kg/cm2 |
Stroke tolerance(mm) |
+1.0mm |
0 | |
Working Frequency |
>20 times /min |

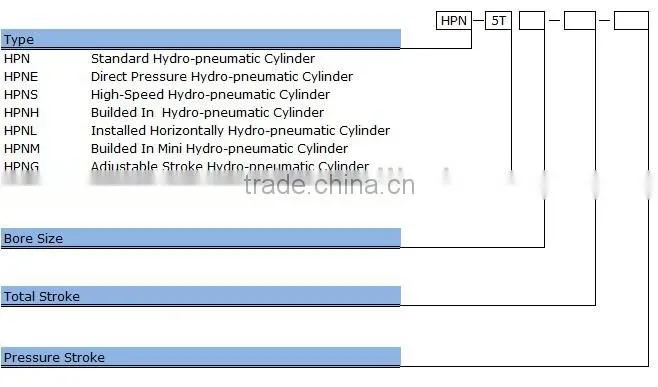

How to order
Packaging: Carton / Wooden case (or according to customers' requirements)
Loading port: Shenzhen Guangdong Seaport
Delivery time: 10-30 days (Depend on your qty)
Sample: Available with freight collected
We have over 15 years' production experience;
Leading quality for Hydro-pneumatic Booster cylinder in China;
Help our customer to design suitable type to match their Hydro-pneumatic system.
Customization is available.
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.

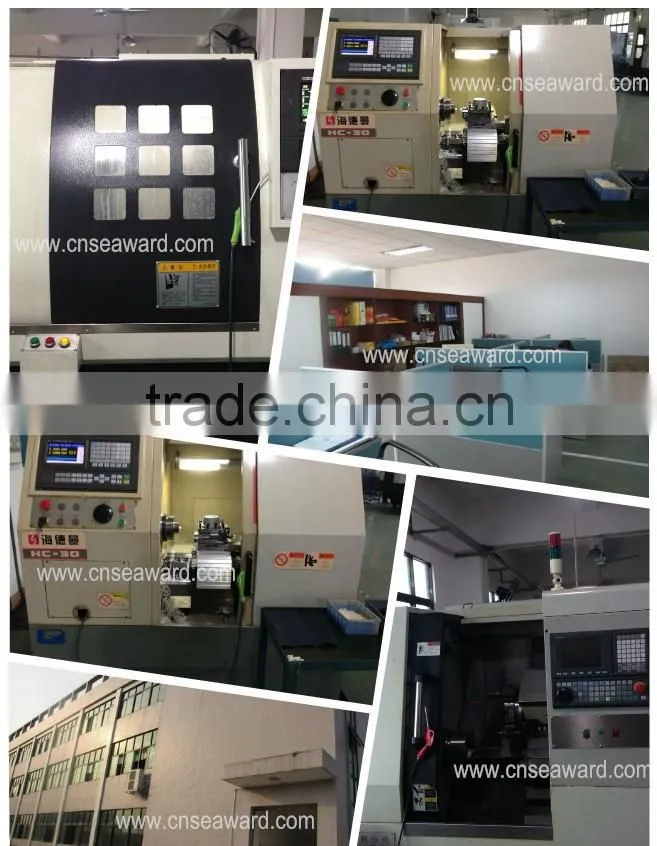

Factory: a management system in good order.

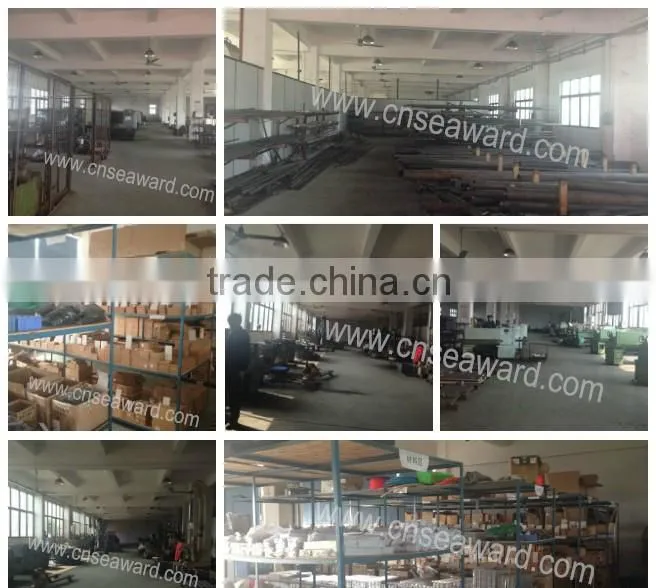

Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
Customization is available.
