Specifications
Modular combinations;Derived models can be customized according to the needs of different customers.
European standard
A brief description of the product and advantage
Modular combinations;
Derived models can be customized according to the needs of different customers.
European standard
Specifications
Air source treatment unit

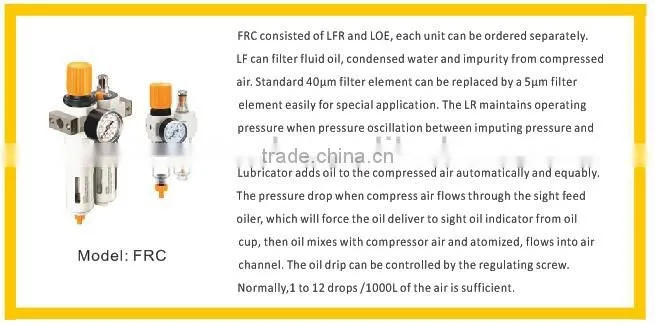

FRC consisted of LFR and LOE, each unit can be ordered separately.
LF can filter fluid oil, condensed water and impurity from compressed air. Standard 40μm filter element can be replaced by a 5μm filter element easily for special application.
The LR maintains operating pressure when pressure oscillation between imputing pressure and compressor air Lubricator adds oil to the compressed air automatically and equably.
The pressure drop when compress air flows through the sight feed oiler, which will force the oil deliver to sight oil indicator from oil cup, then oil mixes with compressor air and atomized, flows into air channel.
The oil drip can be controlled by the regulating screw . Normally,1 to 12 drops /1000L of the air is sufficient.
Air source treatment unit
Size |
MINI |
MIDI |
MAXI |
|||||||||
Medium |
Compressed air |
|||||||||||
Features of structure |
Sintered filter with water separator; MINI/MIDI: Diaphragm Type regulator; MAXI: Piston regulator; Direct constant-density lubricator |
|||||||||||
Mounting Type |
Pipe mounting or foot mounting |
|||||||||||
Assembly position |
Vertical ±5° |
|||||||||||
Connection |
G1/8 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
||||
Standard nominal flow rate |
LFR-…(-A) |
700 |
1000 |
1200 |
200 |
2600 |
2600 |
7000 |
8000 |
|||
LFR-…-7-(A) |
800 |
1300 |
1500 |
2500 |
2800 |
2800 |
8500 |
8700 |
||||
LFR-…-M5-(-A) |
600 |
850 |
1050 |
1700 |
1800 |
2100 |
6500 |
7200 |
||||
Primary pressure |
Manual condensate drain |
1~16bar |
||||||||||
Automatic condensate drain |
1.5~12 bar |
|||||||||||
Working pressure |
0.5~12bar / 0.5~7bar |
|||||||||||
Min. standard nominal flow rate |
3 l/min |
6 l/min |
10 l/min |
|||||||||
Grade of filtration |
40μm / 5μm |
|||||||||||
Capacity of condensate fluid |
22ml |
43ml |
80ml |
|||||||||
Temperature range |
0~60°C |
|||||||||||
Materials information |
Housing: Zinc die-casting; Filter bowl and oil bowl: PC; Metal bowl guard: aluminium alloy Sealing: NBR Adjusting Knob: POM |
|||||||||||
How to order
Packaging: Carton (or according to customers' requirements)
Loading port: Ningbo Seaport
Delivery time: 10-30 days (Depend on your qty)
Sample: Available with freight collected
European standard air source treatment unit, with 6 years experience in production, research and development and marketing, guarantee the stable quality, fast delivery and good service;
Modular combinations, a variety of derived models can be customized according to the needs of different customers.
We are professionally engaged in manufacturing, exporting & supplying compressed air & pneumatic components, air tools & accessories in industrial and process automation.
Factory: a management system in good order.
Plant: Nice and clean.
Over 10 years' production experience;
Strong technic developing & customization capacity for different requirements.
Main products: air preparation, solenoid valve, cylinder, ect.
Customization is available.
