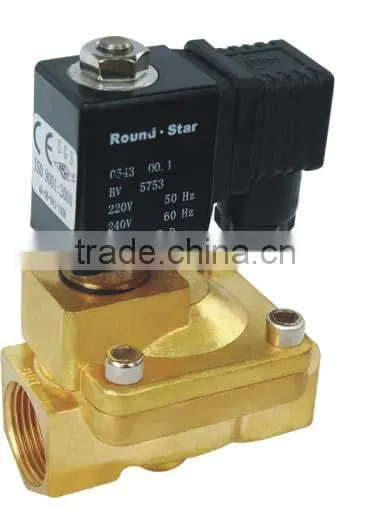

RSP WATER SOLENOID VALVE G3/8''~2'',DN15~50mm

Name: RSP WATER SOLENOID VALVE G3/8''~2'',DN15~50mm
Brand: round star
SKU: 105307243

US$ 18.2 - 166.3 MOQ: 1 Piece

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Pilot

Pressure:

Medium Pressure

Yuyao No. 4 Instrument Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Pilot

Pressure Medium Pressure

Power Solenoid

Material Brass

Temperature of Media Medium Temperature

Media Water

Port Size G3/8'~G2''', DN15~50mm

Place of Origin Zhejiang, China

Model Number RSP

Brand Name round star

Specifications

reliable performance, long service life, high quality and reasonable price.

Specifications

electric water solenoid valve
1) brass material
2)stainless steel
diaphragm valve
Media: Water, Air, Gas,Oil
Pilot operated solenoid valve

diaphragm valve

-- Media: Gas, Water, Air, Oil (below 20cst)

--Temperature: -5 ÷80

-- Pressure: N/C: 13bar; N/O: 6bar

--Mode of action: Pilot operated

--Body material: Stainless steel, brass

-- Sealing material: NBR

--Protection class: IP65

--Function type: Normally Closed (N/C), Normally Open (N/O)

Parameter

Model		RSP-10	RSP-15	RSP-20	RSP-25	RSP-32	RSP-40	RSP-50
G Connection		3/8"	1/2"	3/4"	1"	1¼"	1½"	2"
Orifice Size	mm	13	15	20	25	32	40	50
Cv Value		3.8	3.8	7.6	12	24	30	48
L	mm	66	66	74	92	122	139	168
H	mm	112	112	118	125	137	150	165
Medium temperature		-5~80
Pressure	bar	Normally closed :0.3~13; Normally Open:0.3~6
Power		AC:110V~AC:230V/50-60HZ 22VA; DC24/12V,13 W; Range:±10%
Body material		SUS316, brass
