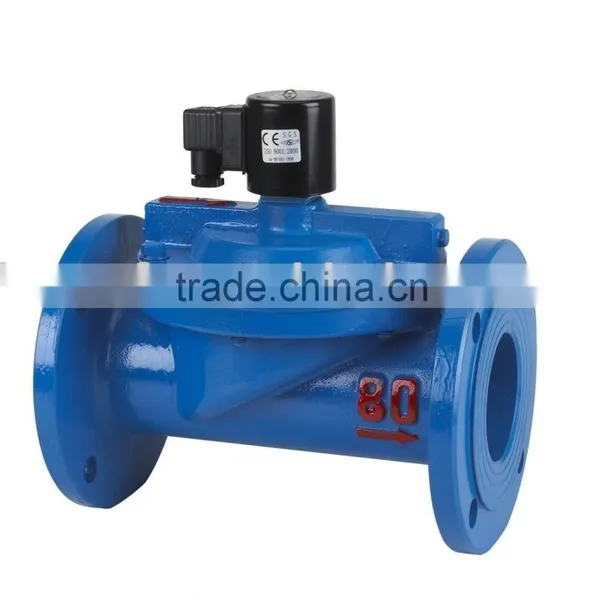

DFD-80CF Cast Iron Solenoid Valve

Name: DFD-80CF Cast Iron Solenoid Valve
Brand: Round Star
SKU: 105306733

US$ 100 - 300 MOQ: 1 Set

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Pilot

Pressure:

Medium Pressure

Yuyao No. 4 Instrument Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI CHINA

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Pilot

Pressure Medium Pressure

Power Solenoid

Material Casting

Temperature of Media Medium Temperature

Media Water

Port Size 2"-8"

Place of Origin Zhejiang, China

Model Number DFD-80CF

Brand Name Round Star

Specifications

Solenoid valve
Media: Water, Air, Oil
Mode of action: Pilot operated

Solenoid valve

-- Media: Water, Air, Oil (below 20cst)

--Temperature: -5 ÷80

--Mode of action: Pilot operated

--Body material: Cast iron

-- Sealing material: NBR

--Protection class: IP65

--Function type: Normally Closed (N/C), Normally Open(N/O)

-- MAX. Pressure: Normally Closed 12bar; Normally Open 8bar

MODEL	DFD-40CF	DFD-50CF	DFD-65CF	DFD-80CF	DFD-100CF	DFD-125CF	DFD-150CF	DFD-200CF
MOTION TYPE	PILOT OPERATED
G CONNECTION	1-1/2"	2"	2-1/2"	3"	4"	5"	6"	8"
NOMINAL DIAMETER MM	40	50	65	80	100	125	150	200
CV VALUE	21	30	52.5	81.7	128.4	221.7	291.7	513.5
PRESSURE BAR	NORMALLY CLOSED 0.3-12 ( 0.3-16); NORMALLY OPEN: 0.3-8
MEDIUM TEMP	NBR -5-80 SPECIAL VITON (-10-130)
POWER	220V-230V AC /50-60HZ; 110V-120V AC/50-60HZ; DC 24V; DC 12V; RANGE;-15%~10%

OPTIONS EPDM (E): suitable to water, hot water, gas, Freon, the MAX. 110; In case you choose EPDM, please state E in your order. Viton (V): suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon; the MAX.130. In case you choose Viton, please state V .
