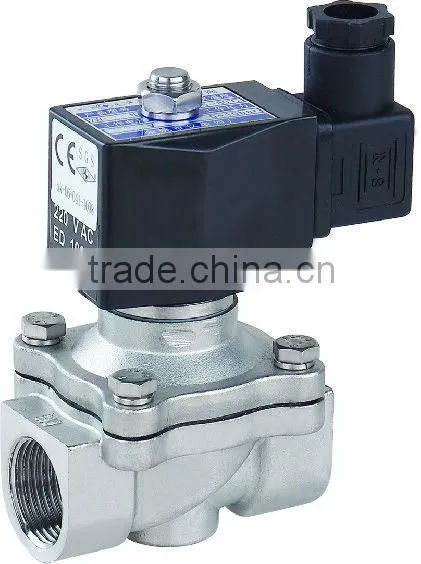

Help Center2W SERIES WATER SOLENOID VALVE G1/8'~G2''
Related Products
-
2W SERIES WATER SOLENOID VALVE FRANGE DN15~50mmNegotiableMOQ: 1 Piece -
2W Series Gas/Water/Air/Oil Solenoid ValveNegotiableMOQ: 1 Piece
-
2W Stainless Flange Water Solenoid ValveNegotiableMOQ: 1 Piece
-
2W Series Brass Gas Solenoid ValveNegotiableMOQ: 1 Piece
-
2W-25J Water Air Gas Solenoid Valve G1''US$ 10.95 - 10.95MOQ: 1 Piece
Specifications
can be used under zero pressure, high flow, has a reliable performance!Specifications
24V 1 inch mini brass water solenoid valve
1) Body material: brass / stainless steel
2) Operating type: normally closed / normally open
solenoid valve 24v
1) Body material: brass / stainless steel
2) Operating type: normally closed / normally opened
3) Mode of action: 2/2-way, direct acting / semi-direct lift type
4) Sealing material: NBR, EPDM, or Viton; NBR is standard
5) Coil grade: class B, IP54 / IP65
6) Suitable for applications with temperature below 120°C
7) Reliable action under consistent pressure
8) Connection pipe size: thread 1/8", 1/4" - 2"
Model |
2W-025-06N |
2W-025-08N |
2W-040-08N |
2W-040-10N |
2W-160-10N |
2W-160-15N |
2W-200-20N |
2W-250-25N |
2W-350-35 |
2W-400-40 |
2W-500-50 |
||
G Connection |
1/8", 1/4" |
1/8", 1/4" |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
1" |
1¼" |
1½" |
2" |
||
Orifice Size |
mm |
2.5 |
4 |
16 |
20 |
25 |
35 |
40 |
50 |
||||
Motion Pattern |
Direct Action |
Semi-direct Lift |
|||||||||||
Cv Value |
0.23 |
0.6 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|||||
L |
mm |
40.5 |
40.5 |
40.5 |
52.5 |
69 |
69 |
73 |
99 |
119 |
123 |
168 |
|
H |
mm |
75 |
75 |
75 |
90 |
117 |
117 |
123.5 |
134.5 |
170 |
172 |
209 |
|
H1 |
mm |
66 |
66 |
66 |
76 |
101 |
101 |
107 |
113 |
143 |
144 |
172 |
|
Medium temperature |
-5 ~80 (-10~130) |
||||||||||||
Pressure |
bar |
Normally closed :0~10; Normally Open:0~6 |
|||||||||||
Power |
AC:220V~AC:230V/50-60HZ 22VA; AC110 ~AC:120V/50-60HZ 22VA; DC24 18W; DC12 17W ; Range:±10%, |
||||||||||||

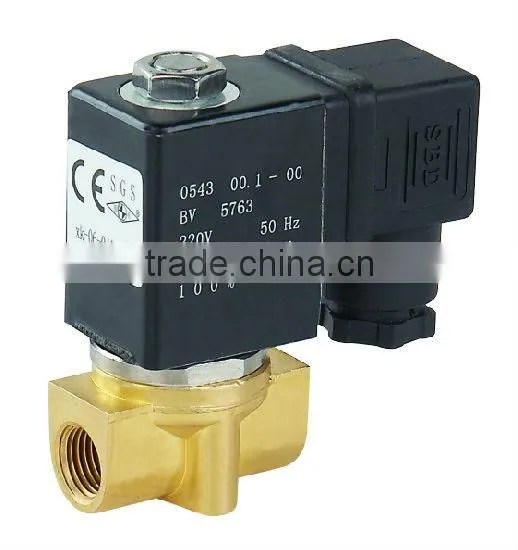

2W-025-08N
2W-25JN
Note: in case use for special pressure, voltages and so on, please state with your order..
|
