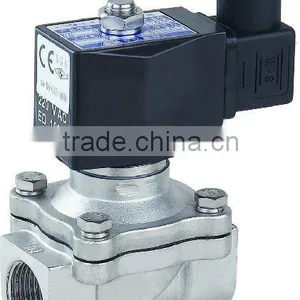

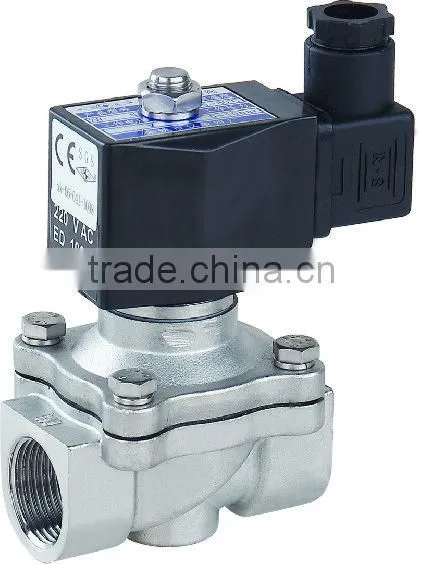

Help Center2W-25J Water Air Gas Solenoid Valve G1''
Related Products
-
2W-15N Brass Water Solenoid ValveNegotiableMOQ: 1 Piece -
2W-25NJ Stainless Flange Water Solenoid ValveNegotiableMOQ: 1 Piece
-
2W-50CF Series Brass Gas Solenoid ValveNegotiableMOQ: 1 Piece
-
2W-050-10NJ 2/2 Way Stainless Steel Vacuum Solenoid ValveUS$ 15 - 25MOQ: 10 Sets
-
2W-500-50 IP54 Brass Vacuum Solenoid ValveUS$ 10 - 250MOQ: 1 Set
Specifications
can be used under zero pressure, high flow, has a reliable performance!
Specifications
24VDC 1 inch water solenoid valve
1) Body material: brass / stainless steel
2) Operating type: normally closed / normally open
solenoid valve 24VDC
1) Body material: brass / stainless steel
2) Operating type: normally closed / normally opened
3) Mode of action: 2/2-way, direct acting / semi-direct lift type
4) Sealing material: NBR, EPDM, or Viton; NBR is standard
5) Coil grade: class B, IP54 / IP65
6) Suitable for applications with temperature below 120°C
7) Reliable action under consistent pressure
8) Connection pipe size: thread 1/8", 1/4" - 2"
9) Coil option: iron clad coil or plastic coil
Model |
2W-025-06N |
2W-025-08N |
2W-040-08N |
2W-040-10N |
2W-160-10N |
2W-160-15N |
2W-200-20N |
2W-250-25N |
2W-350-35 |
2W-400-40 |
2W-500-50 |
||
G Connection |
1/8", 1/4" |
1/8", 1/4" |
1/4" |
3/8" |
3/8" |
1/2" |
3/4" |
1" |
1¼" |
1½" |
2" |
||
Orifice Size |
mm |
2.5 |
4 |
16 |
20 |
25 |
35 |
40 |
50 |
||||
Motion Pattern |
Direct Action |
Semi-direct Lift |
|||||||||||
Cv Value |
0.23 |
0.6 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|||||
L |
mm |
40.5 |
40.5 |
40.5 |
52.5 |
69 |
69 |
73 |
99 |
119 |
123 |
168 |
|
H |
mm |
75 |
75 |
75 |
90 |
117 |
117 |
123.5 |
134.5 |
170 |
172 |
209 |
|
H1 |
mm |
66 |
66 |
66 |
76 |
101 |
101 |
107 |
113 |
143 |
144 |
172 |
|
Medium temperature |
-5 ~80 (-10~130) |
||||||||||||
Pressure |
bar |
Normally closed :0~10; Normally Open:0~6 |
|||||||||||
Power |
AC:220V~AC:230V/50-60HZ 22VA; AC110 ~AC:120V/50-60HZ 22VA; DC24 18W; DC12 17W ; Range:±10%, |
||||||||||||
2W-25JN
Note: in case use for special pressure, voltages and so on, please state with your order..
Shipping:
| shipping method | by sea/air/express, which is depend on your choice! |
| delivery time | depends on the quantity of order(3 to 20 working days) |
Packing:
| depend on the quantity you ordered |
| 35X35X25 cm |
| one piece per box |

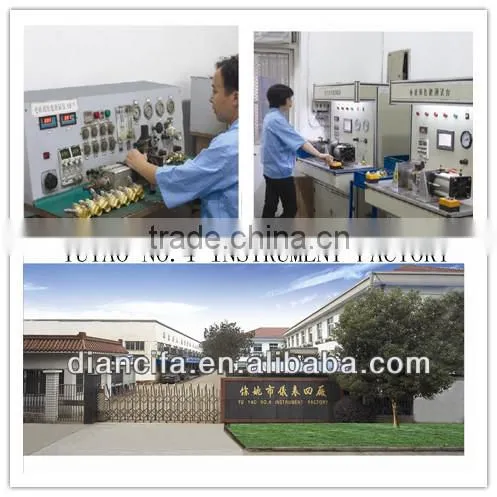

Yuyao No. 4 Instrument Factory was founded in 1965. Through 40 years of development, we have become one of the most professional manufacturers of solenoid valves.
With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.

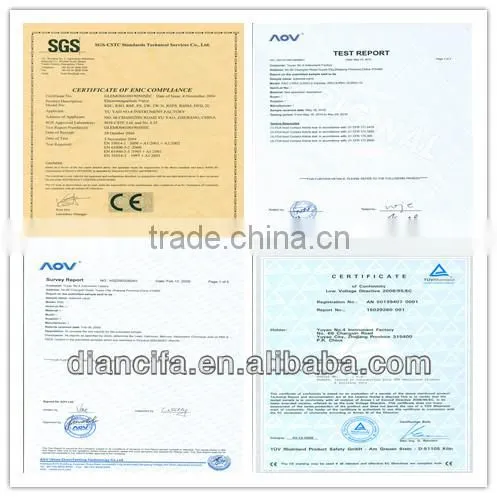

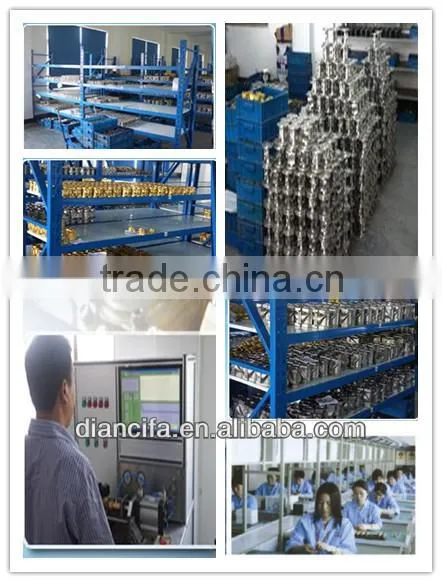

Our factory manufactures the products as per the ISO9001 quality management system and CE standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.
We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
