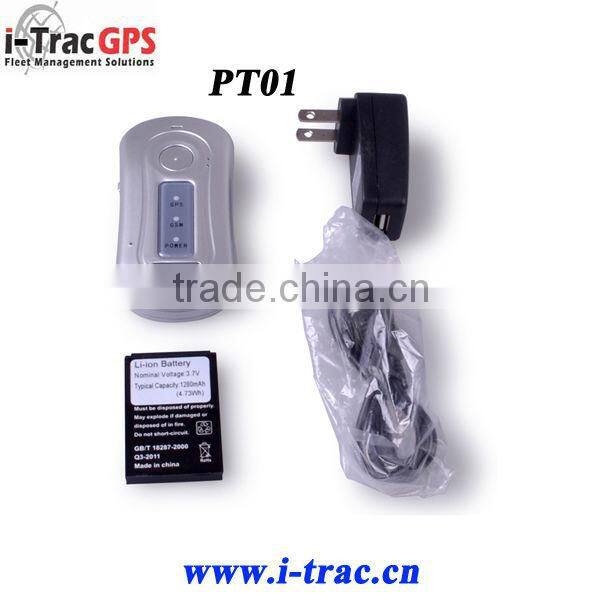

Mini Gps Chip Tracker With BTS AGPS to Locate Indoors

Operating temperature

-25Centigrade to 70 Centigrade

Storage temperature

-25Centigrade to 80 Centigrade

Operating humidity

5% ~ 90% (Non-water vapor condensing)

Input voltage

12V ~ 24V

Input current

<70mA

GSM Module

MTK, Four-Band GSM850/900/1800/1900 (MHz), optional

GPRS connectivity

GPRS multi-slot class 10, GPRS mobile station class B

GPS chip

JRC high sensitivity GPS chip group

GPS sensitivity

164dbm

GPS frequency

L1, 1575.42MH

Position accuracy

2.5m, CEP

C/A code

1.023 MHz

Speed accuracy

0.1m/s

acquisition

Hot start 1s, warm start 30s, cold start 35s

Positioning

24-hour satellite positioning

1. SMS location racking

2. signal real time location tracking

3. GPRS location tracking via time interval

Two-way communication

With external speaker, tracker can receive and dial out authorized phone number

Authorized wiretapping (Voice Monitoring)

The vehicle can be wiretapped as authorized(inside microphone)

Alarm

1. SOS

2. Geo-fence

Supported Sensor

Built in motion sensor to detect car moves/stops

Built in memroy to store waypoints in no GSM area

When tracker is under GSM blind area, inside flash will store the location data, and then tracker will report data to platform when GSM signal is available.

Monitor

1. get real time position and alarms notice

2. get last position

3. position data includes: terminal ID, time, address, position validity, alarm( over-speed, SOS), vehicle status( engine, door), speed, mileage, direction, GSM signal, GPS signal, Longitude, Latitude

Mileage

1. mileage statistics, can synchronize initial mileage

2. working time and non-working time driving mileage statistics

Geo-fence

1. Area-in alarm, area-out alarm, and set geo-fence area as station.

2. Set geo-fence area as station and manage the in/out vehicle

3. Fence type includes: round, rectangle, polygon, broken line.

4. Fence alarm real time notes, and can send alarm info to user specified mobile phone and email.

Reports

1. Vehicle exceeds any speed enquiry

2. Vehicle various speed statistics

3. Vehicle parking report

4. Vehicle daily running info report

5. Vehicle the vehicles that go through specified location

6. Driver over time fatigue driving report

7. Stat. engine on time, door open/close time, vehicle shock info Mileage, speed curve chart display

Others

1. Automatically get address by longitude and latitude

2. Multi-function system administrator, edit and manage user conveniently

3. Operate terminals based on users privilege to prevent error

4. multi-vehicle track replay meanwhile

5. Different colors to show vehicle different status: running/stop/alarm/invalid location

6. Real time Stat. vehicle status number: monitored qty/unmonitored qty/alarm qty/ located qty/non-located qty

7. Grouped display vehicles according to their info or status.

8. Vehicle alarms or status changes, tracker sends SMS to defined phone to Email.

9. Historic track can be output by KML, and load by Google Earth.

10. All kinds' reports can be output to Html, word, Excel files.
