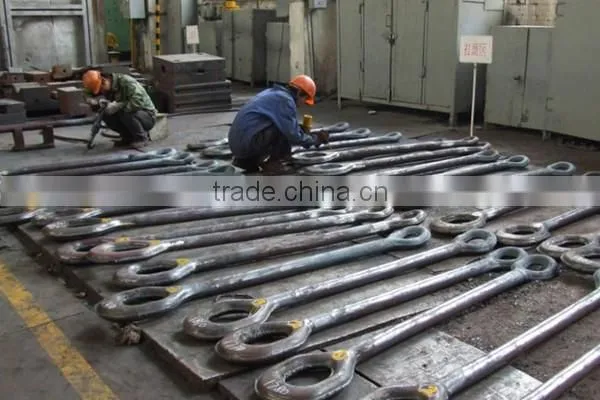

API 8c load 250t elevator link for groundwater exploring

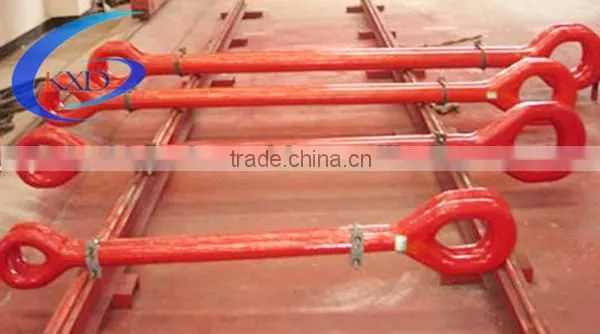

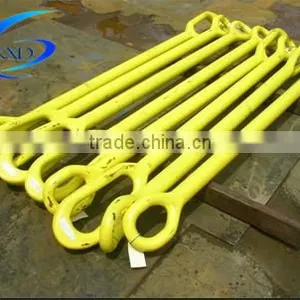

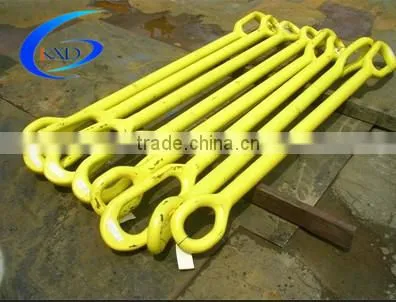

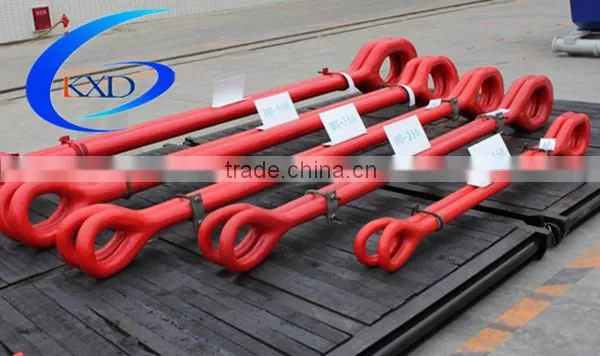

1. Elevator Links
Elevator Links are designed to hang elevators from Top Drive System or Hooks. Each elevator link of one pair is forged from one single billet of high strength alloy steel, heat treated and MPI tested. Additional material is added in critical wear areas for extended life. The design safety factor and design verification of the elevator links conform to requirements of API Spec 8A or API Spec 8C, any elevator links are proof load tested to 1.5 times the working load.
Each elevator link of one pair is marked with Serial Number for traceability.
Elevator links are available in 150t,200t, 250t, 350t and 500t rating loads
Partial specifications data for elevator links are provided as follows, any order of elevator links for field service are available
2.specification
| model | rated load | size between elevators and elevator links | L(mm) | ||||
| r1 | R1 | L1 | L2 | L3 | |||
| DH40 | 355 | <=20 | >=51 | >=20 | >=100 | >=150 | 1200 |
| DH50 | 450 | <=22 | >=51 | >=20 | >=100 | >=150 | 1100 |
| DH65 | 580 | <=22 | >=51 | >=20 | >=100 | >=150 | 1200 |
| DH75 | 665 | <=22 | >=51 | >=20 | >=100 | >=150 | 1500 |
| DH100 | 890 | <=22 | >=51 | >=20 | >=100 | >=150 | 1500 |
| DH150 | 1335 | <=24 | >=51 | >=25 | >=100 | >=150 | 1800 |
| DH200 | 1780 | <=31 | >=70 | ||||
| DH250 | 2225 | <=31 | >=70 | >=30 | >=140 | >=200 | 2700 |
| DH350 | 3115 | <=37 | >=70 | >=35 | >=140 | >=200 | 3300 |

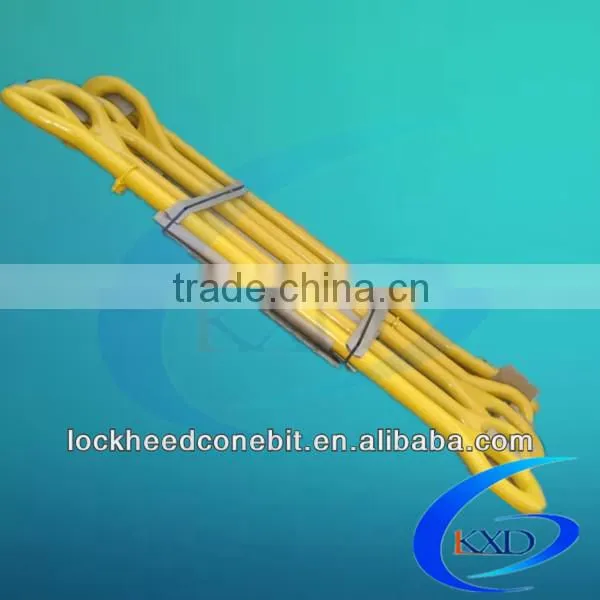

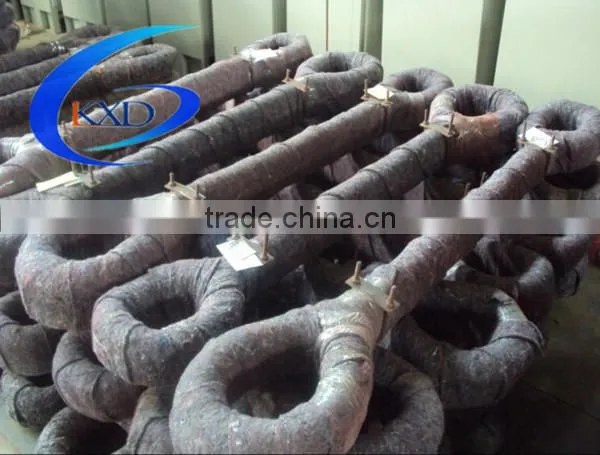

Packing: load 250t elevator link will be packed by wooden case or as clients' request.
Shipping: load 250t elevator link will be transported by sea or by air.
Minimum Order Quantity: 1 piece
Maximum Order Quantity: 300 pieces per week
We are committed to provide you most of the products in the shortest time.
Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional technology-oriented
enterprise specialized in the production drilling equipments and tools, which is one of
the leading corporations of drilling tools and workover fishing tool manufacturing
industry. Including three series with full model types,as follows:
Drilling Bit series: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts series: manual tong,elevator,slips,stabilizer;
Workover Fishing Tool series: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Our goal: Strive for Perfection and Win by Quality.
some other products
1. How to order the products?
Answer:
Send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. About lead time and shipping time?
Answer :
The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days. To West of American 20 days.
3.Can I expect a quality products?
Answer :
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
