Hebei Manufacturer Supply Lifting Hook Elevator Links With Factory Price
Cangzhou Lockheed Drilling Equipment Parts Co.,Ltd
1.Profile of company
Established in 1998, Cangzhou Lockheed Drilling Equipment Parts Co., Ltd. is a professional technology-oriented enterprise specialized in the production drilling equipments and tools,which is one of the leading corporations of drilling tools and workover fishing tool manufacturing industry. Including three series with full model types,as follows:
Drilling Bit series: rock roller bit,tricone bit,pdc drill bit,single bit,cone bit and hole opener;
Drilling Equipment Parts series: manual tong,elevator,slips,stabilizer;
Workover Fishing Tool series: releasing spear,junk basket, overshot,reversing sub,die collar, fishing tap etc.
Our goal:Strive for Perfection and Win by Quality.

2.Product detail

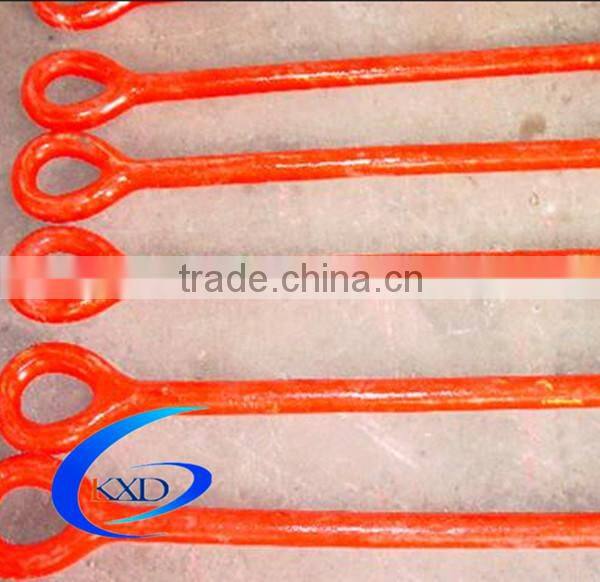

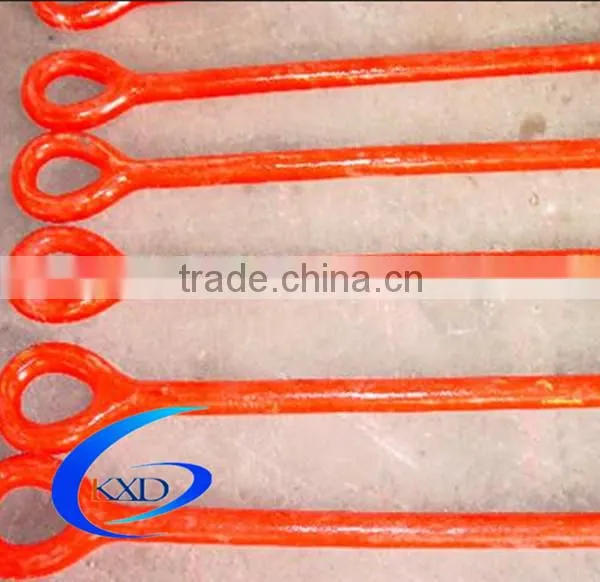

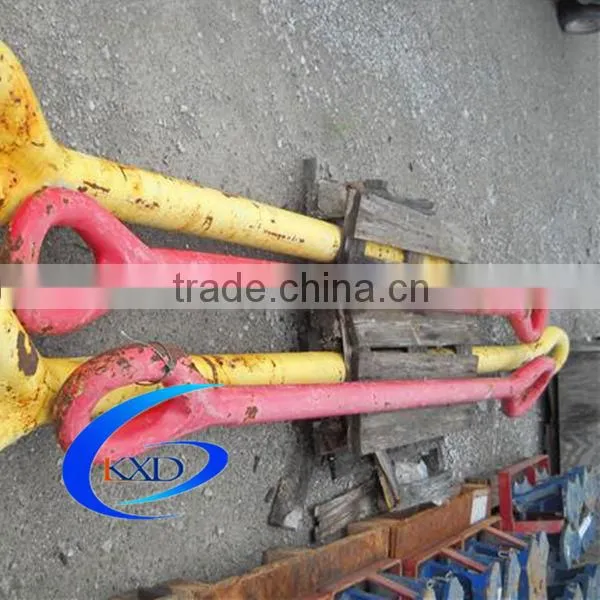

elevator links/lifting hook elevator links
Elevator Links are designed to hang elevators from Top Drive System or Hooks. Each elevator link of one pair is forged from one single billet of high strength alloy steel, heat treated and MPI tested. Additional material is added in critical wear areas for extended life. The design safety factor and design verification of the elevator links conform to requirements of API Spec 8A or API Spec 8C, any elevator links are proof load tested to 1.5 times the working load.
Each elevator link of one pair is marked with Serial Number for traceability.
Elevator links are available in 150t,200t, 250t, 350t and 500t rating loads.
TYPE SH DOUBLE ARMS ELEVATOR LINKS
Type | Connecting sizes between | Connecting sizes between | L(mm) | Rated Cap.Per Set | ||||||
r1≤ | R1≥ | l1≥ | l2≥ | r≤ | R2≥ | l3≤ | l4≥ | |||
SH225 | 15 | 29 | 20 | 58 | 22 | 38 | 35 | 90 | 600 | 225(25) |
SH360 | 20 | 51 | 20 | 100 | 22 | 38 | 45 | 100 | 1100 | 360(40) |
SH585 | 22 | 51 | 20 | 100 | 22 | 64 | 65 | 120 | 1100 | 585(65) |
SH675 | 22 | 51 | 20 | 100 | 29 | 64 | 75 | 160 | 1500 | 675(75) |
SH900 | 22 | 51 | 25 | 100 | 29 | 64 | 80 | 160 | 1500 | 900(100) |
SH1350 | 24 | 51 | 35 | 100 | 29 | 64 | 100 | 160 | 1700 | 1350(150) |
L:Dimensions of recomendation .It can be changed if necessary | ||||||||||

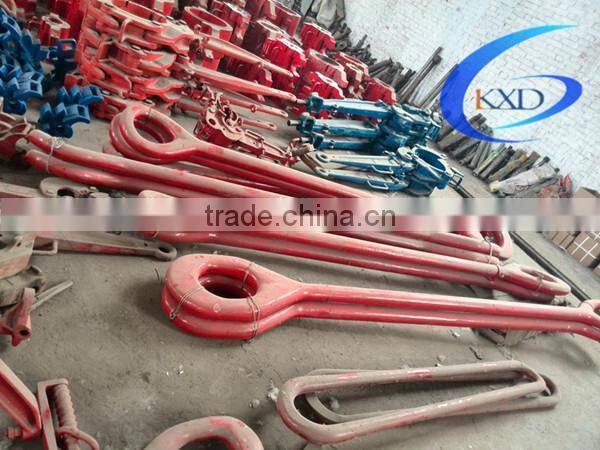

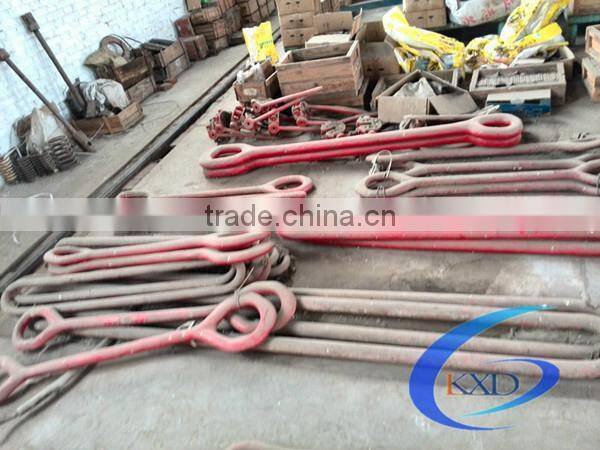

3.Other drilling equipment show

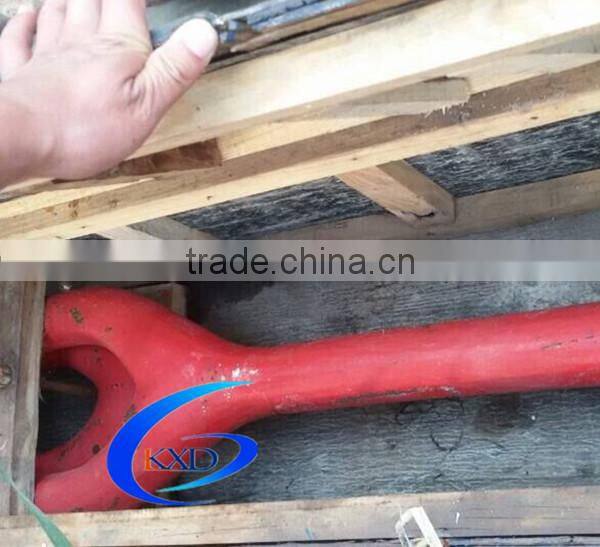

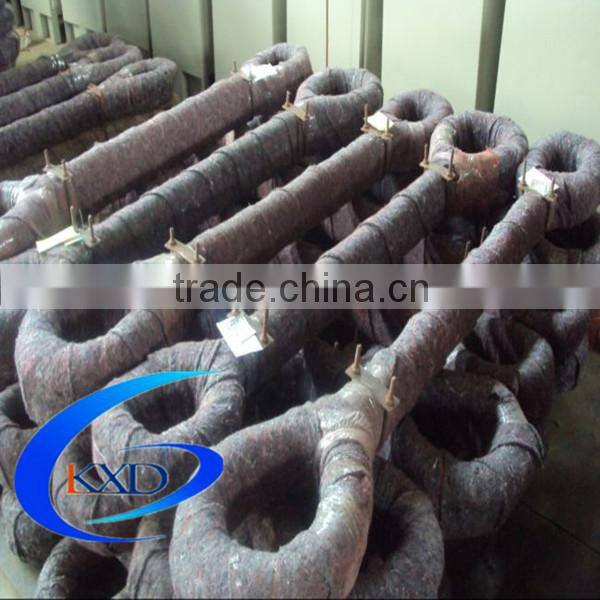

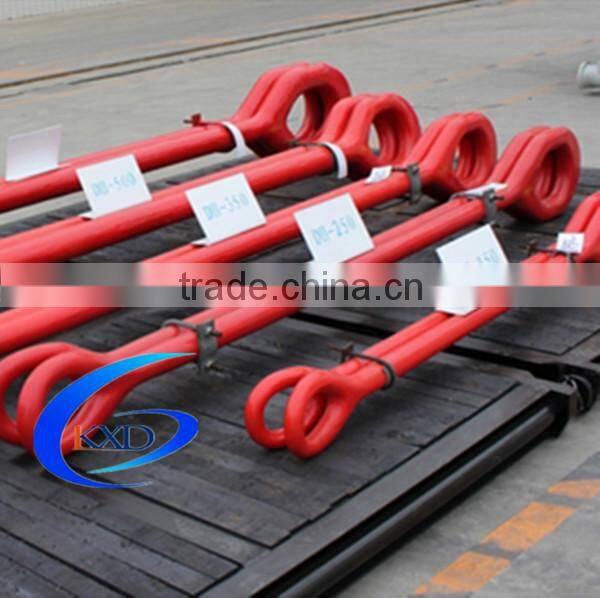

4.Packing and transportation
5.Welcome to contact me at any time!!!
Your satisfaction is our mission!!!
