Specifications
Our machine can almost cut any materials ,such as granite,glass,plastic,ceramic tile,steel ,metal and so on.high speed cutting
Our water jet machine adopt parts and technology of America, it can be more reliable and we offer more resonable price.
Metal cutting machine:1, cut metal in thickness 130mm; 2,cut metal in smooth edge;3, high work efficiency;4,save produce cost.

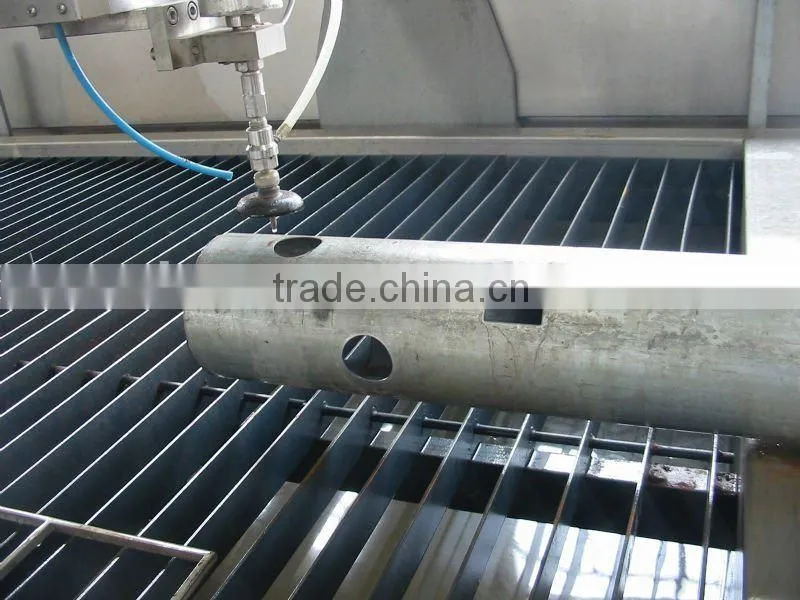

waterjet machine can cut any metal or non-metal materials ,there is no heat generated during cutting
Granite cutting machine , high quality got CE certificate: 1,cutting granite in thickness 120mm; 2, smooth cutting edge.
Metal cutting machine:1, cut metal in thickness 130mm; 2,cut metal in smooth edge;3, high work efficiency;4,save produce cost.
CNC water jet machine, glass cutting machine, has these features: 1,CNC control;2, high accuracy;3,safety and high efficiency
Model |
SQ2515 |
SQ3020 |
SQ4020 |
SQ6020 |
Processing scope |
1.3m×1.3m |
2.5m×1.5m |
3.0m×2.0m |
4.0m×2.0m |
Form of machine |
Cantilever |
|||
Runing speed |
0-10m/min |
|||
Control system |
AC servo system |
|||
Control accuracy |
±0.002mm |
|||
Cutting accuracy |
±0.1mm |
|||
Max working pressure |
400Mpa(60000psi) |
|||
Max.flow rate of UHP water |
3.8L/in |
|||
Motor power of oil pump |
22kw/30kw |
|||
Power supply |
380V 50HZ |
|||
