Slow Speed Crane Winch

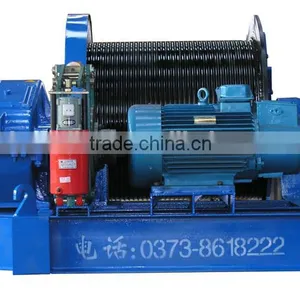

Slow Speed Crane Winch thumbnail-1
Slow Speed Crane Winch photo-1
US$ 1,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
WEIHUA
Model Number:
JM JK
Contact Supplier Request Quote Chat Now
Henan Weihua Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Qingdao and other ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name WEIHUA
Model Number JM JK
Power Source Electric
Application Other, Cranes, Mine, Construction, Crane
Capacity 5~650KN
Product Description

  Slow Speed Crane  Winch



General description



Low speed electric winch is gear reducer transmission type electric winch.



This series of electric winch is mainly used to pull or lift heavy objects in road and bridge projects, civil construction, mining area, factory, port, marine, e.g, Installation and disassembly of all kinds of large or super large size steel structure and machinery equipments, reinforce concrete, drag ships, the features are orderly wire rope, safe and reliable lifting, speed is usually not more than 12m/min.



 Slow Speed Crane Winch



In General



1. Cap.: 1-80t



2. Lifting height: customized



3. Lifting speed: single/VVVF



4. Voltage: 220v/380v/400v/415v



5. Push button or cam control or remote control



6. Siemens or Schneider electrical system



7. Current overload protection function, voltage lower protection function.





Control way:



Push button control & Cam control & remote control



Design standards



a.     Round strand wire rope GB/T20118-2006



b.    Crane design standard GB3811-2011



c.     Construction winch testing standards and methods GB6947-1986

Slow Speed Crane Winch



Product Dispaly:

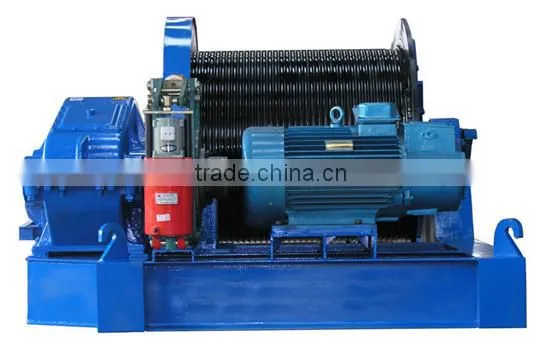

JM Series Electric Control Slow Speed Electric Winch
 Slow Speed Crane Winch
  • gear reducer driving
  • hoisting pull, unloading and tow the weight
  • Suitable for construction and installation of buidling installation enterprise, mining area, factory,etc.

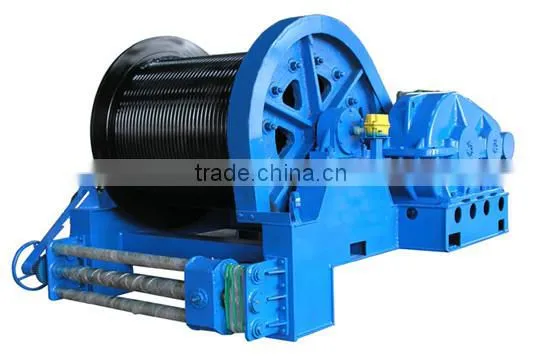

JM Series Electric Control Slow Speed Large Tonnage Electric Winch
  • Wire Rope orderly arrangement
  • Lifting is safe and raliable
  • Suitable for bridge port, ect road, bridge engineering, large facories and mines engineering equipment installation





  Slow Speed Crane Winch
JK Series Electric Control High Speed Electric Winch
 Slow Speed Crane Winch
  •  materials lifting and moving heavy objects
  • special winch of derrick, gantry crane and lifitng trolley
  • suitable for constuction and small equiements installation mine area factory
JKL Series Hand Control High Speed Free Rolling Winch
  • main shaft rotating (known as rotating shaft)
  • mainly used for engineering vertical lifitng weight drops of constuction factory, mine port and ect
  • used in bridge dock construction base engineering freefall punching operation
  Slow Speed Crane Winch
JK-D Series Electric Winch
 Slow Speed Crane Winch
  • a planetary drive with small teeth ditterence
  • compact structure, stable running, convenient operation, easy mantenance, 10W noise level, long service life
  • used in building construction, piers, bridges and metallurgical inductries of lifting and installation





technical parameter




Type basic date Rated load Rated speed Rope capacity
(m)		 Rope diameter Electric motor type Electric motor power
(KN)		 Orm dimension
(mm)		 Weight
(kg)
JM10 100 8 170 Φ30 YZR200L-6 22 2090×1475×956 3000
JM10B 100 9.5 250 Φ30 YZR200L-6 22 1705×1598×985 3500
JM12.5 125 8 300 Φ34 YZR225M-6 30 2880×2200×1550 5000
JM13.5 135 0-5 290 Φ28 YZP225S-8 22 2990×2363×1650 6500
JM16 160 10 500 Φ37 YZR250M2-6 37 3750×2400×1850 8800
JM20 200 10 600 Φ43 YZR280S-8 45 3950×2560×1950 9900
JM25 250 9 700 Φ48 YZR280M-6 55 4350×2800×2100 13500
JM32 320 9 700 Φ56 YZR315S-8 75 4500×2850×2100 14800
JM50 500 9 800 Φ65 YZR315M-8 90 4930×3050×2250 19500
JM65 650 10.5 3600 Φ64 LA8315-8AB 160 5900×4680×3200 46000





According to your requirements, our products are customized. Please contact us .



Cooperation

 Slow Speed Crane Winch

Slow Speed Crane Winch

Company information

 Slow Speed Crane Winch

Slow Speed Crane Winch

Our Services



After-sales Services

Warranty

 WEIHUA grants our clients a twelve-month period or 2000-hour warranty for any products purchased from our company.

 Spare Parts

 WEIHUA is dedicated to provide our clients with high quality spare parts. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are.

Installation&Maintenance

 WEIHUA is able to provide you with the overall installation of complicated machinery and equipment and inspection of the whole machine, operation equipment.

 Training

WEIHUA offers training services to different users. Training programs can be conducted in our factory field, or at the client’s site.

Technical Advice

 WEIHUA can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine.

 1. Sales manager cell number is 24hours available.

 2. Payment term is flexible.

 3. Design the product according to your technical request.

 4.Our engineer is willing to help fixing the crane for you.

 5. Diversity of products.

 6. Delivery on time.

 7. Warranty: 12 months.

 For more details, please contact us!

This is the overview of our products. For more details, please never hesitate to tell us, we will be pleased to be of further assistance.
