3 Axis Waterjet Machine

3 Axis Waterjet Machine thumbnail-1
3 Axis Waterjet Machine photo-1
US$ 40,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Glass Cutting Machine
Production Capacity:
400sets
Contact Supplier Request Quote Chat Now
Jiangsu Sunrise Waterjet Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Glass Cutting Machine
Production Capacity 400sets
Place of Origin Jiangsu, China
Brand Name Sunrise
Model Number CUX400-SQ3020
Voltage 380V
Power(W) 22/30KW
Dimension(L*W*H) 3.0m*2.0m*0.15m
Weight 4680KG
Certification CE
Warranty ONE YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Advantages:
1,max cutting thickness is 200mm;
2,cut in smoothy edge;
3,high working efficiency;
4,save produced cost.

Model

SQ1313

SQ2515

SQ3020

SQ4020

Processing scope

1.3m×1.3m

2.5m×1.5m

3.0m×2.0m

4.0m×2.0m

Form of machine

Cantilever

Runing speed

0-10m/min

Control system

AC servo system

Control accuracy

±0.02mm

Cutting accuracy

±0.1mm

Max working pressure

400Mpa(60000psi)

Max.flow rate of UHP water

3.8L/in

Motor power of oil pump

22kw/30kw

Power supply

380V  50HZ



Sunrise watetjet machine is a kind of machine with all purpose and consummate capability, the special characteristic is cold cutting there's no heat generate during cutting, cutting range materials such as metal ,glass,rubber ,plastic ,ceramic tile ,timber,marble,granite etc.

Our water jet machine adopts parts and technology of America, it can be more reliable and we offer more resonable price.

Metal cutting machine:1, cut metal in thickness 130mm; 2,cut metal in smooth edge;3, high work efficiency;4,save produce cost.

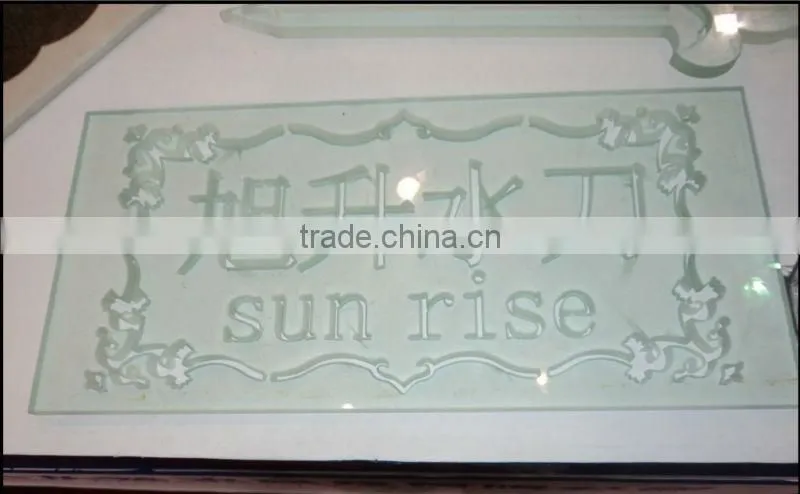

 3 axis waterjet machine



3 axis waterjet machine
