Production discription
Rated capacity: 10-2500kVA
Voltage combination:
High: 38.5KV 35KV
Low: 0.4kV
Low loss and noisy

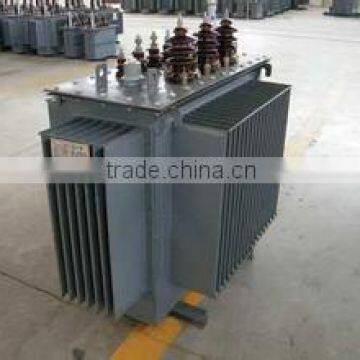

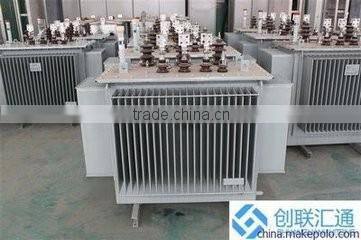

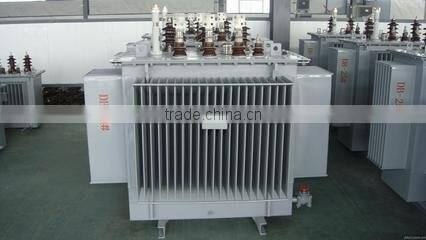

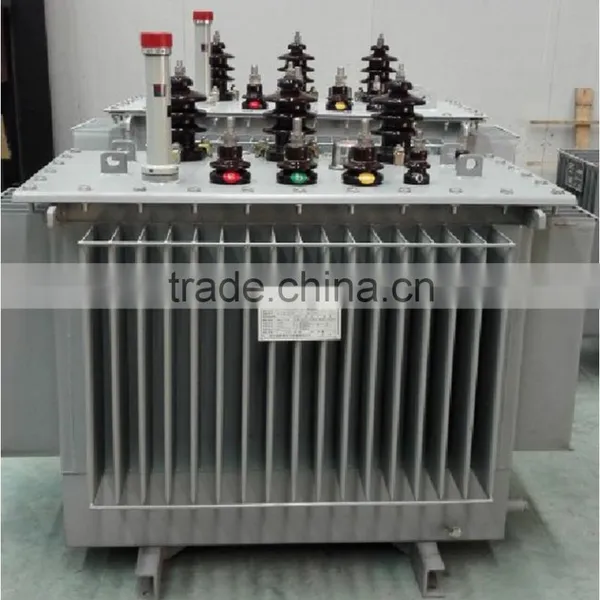

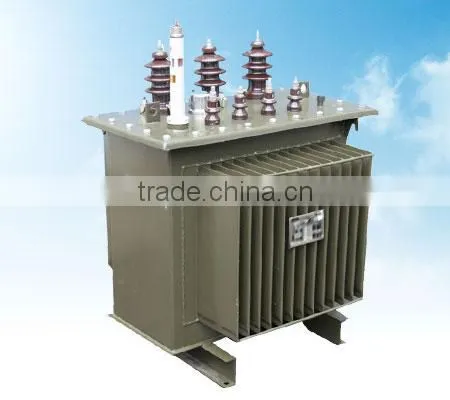

Compared with normal oil immersed power transformer has no oil storage box and adopts the corrugations on the oil tank as its heat-radiation parts
Oil tank is made by fine cold-rolled steel on an exclusive production-line
Corrugations can expand or contract according to the change of oil volume
Thus the inner space of transformer can be isolated from the air
which can reduce the aging speed of oil and prevent the insulation materials from damping
Oil-immersed transformer possesses a reliable operation and is free from maintenance
| transformer3150kva | |||||||||||||||
| Loss(kW) | Weight (kg) | (mm) | Gauge | ||||||||||||
| Rated Capacity | Voltage Group(kV) | Connection Method | (75) | No-load current | Impedance Voltage | (L) | (W) | (H) | |||||||
| (kVA) | HV | LV | No-load | Load | % | % | Machine | Oil | Gross | Dimension | Vertical | Horizontal | |||
| 50 | 0.21 | 1.21 | 2 | 195 | 205 | 590 | 1000 | 950 | 1450 | 550 | 550 | ||||
| 100 | 0.29 | 2.02 | 1.8 | 320 | 240 | 790 | 1080 | 1000 | 1600 | 550 | 550 | ||||
| 125 | 0.34 | 2.38 | 1.7 | 395 | 270 | 950 | 1100 | 1030 | 1630 | 660 | 660 | ||||
| 160 | 0.36 | 2.83 | 1.6 | 460 | 285 | 1020 | 1130 | 1060 | 1630 | 660 | 660 | ||||
| 200 | 0.43 | 3.33 | 1.5 | 555 | 325 | 1170 | 1190 | 1060 | 1670 | 660 | 660 | ||||
| 250 | 0.51 | 3.96 | 1.4 | 630 | 340 | 1340 | 1260 | 1160 | 1700 | 660 | 660 | ||||
| 315 | 38.5 | Dyn11 | 0.61 | 4.77 | 1.4 | 720 | 400 | 1530 | 1280 | 1240 | 1790 | 660 | 660 | ||
| 400 | 36.5 | 0.4 | Yd11 | 0.73 | 5.76 | 1.3 | 6.5 | 830 | 490 | 1780 | 1960 | 880 | 1900 | 820 | 820 |
| 500 | 35 | Dyn5 | 0.86 | 6.93 | 1.2 | 930 | 510 | 1960 | 2020 | 940 | 1920 | 820 | 820 | ||
| 630 | 33 | Yyn0 | 1.04 | 8.28 | 1.1 | 1085 | 600 | 2290 | 2070 | 1010 | 2010 | 820 | 820 | ||
| 800 | 1.23 | 9.9 | 1 | 1270 | 660 | 2640 | 2240 | 1040 | 2150 | 820 | 820 | ||||
| 1000 | 1.44 | 12.15 | 1 | 1495 | 735 | 3100 | 2300 | 1200 | 2150 | 820 | 820 | ||||
| 1250 | 1.76 | 14.67 | 0.9 | 1775 | 830 | 3630 | 2450 | 1280 | 2250 | 1070 | 1070 | ||||
| 1600 | 2.12 | 17.55 | 0.8 | 2140 | 935 | 4235 | 2220 | 1510 | 2350 | 1070 | 1070 | ||||
| 2000 | 2.61 | 21.5 | 0.8 | 2535 | 1035 | 4910 | 2310 | 1740 | 2440 | 1070 | 1070 | ||||
| 2500 | 3.15 | 23 | 0.8 | 3140 | 1190 | 5840 | 2370 | 1840 | 2490 | 1070 | 1070 | ||||
| (Note): (Tapping range of high voltage) ±5%; ±2×2.5%. power transformer oil distribution transformer | |||||||||||||||
Our Service
1. We offer the best solution and products to fulfill the buyers' requirments.
2. We can arrange technicians to install the equipments and train your staff on site.
3. Anytime, we provide considerate technical consultation.
4. Prompt reply for your inquiry and feedback.
Certifications
Packaging & Shipping
FAQ
1.Why choice us Daelim
After compare quality,delivery and price you will find out answer
2. Is that possible to be one of distributor of Daelim in my country
Yes,once you action is fast enough
3.More question......
Feel free to contact you you will get immediately reply
Contact us
Shinan District, Qingdao CIty,Shandong Province,China
Tel:86-532-80551657
Fax:86-532-80551657
