Ac Step Down Transformer 220v 12v Transformer 10a Chargers

Name: Ac Step Down Transformer 220v 12v Transformer 10a Chargers
Brand: Great Wall
SKU: 105249121
Availability: InStock

US$ 5,999 - 6,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Great Wall

Model Number:

S11

Qingdao Yonghuaxu Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Great Wall

Model Number S11

Usage Power

Phase Three

Coil Structure Toroidal

Coil Number Autotransformer

Product Description

Rated capacity: 10-2500kVA

Voltage combination:

High: 38.5KV 35KV

Low: 0.4kV

Low loss and noisy

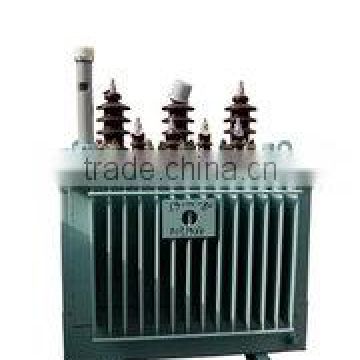

Compared with normal oil immersed power transformer has no oil storage box and adopts the corrugations on the oil tank as its heat-radiation parts

Oil tank is made by fine cold-rolled steel on an exclusive production-line

Corrugations can expand or contract according to the change of oil volume

Thus the inner space of transformer can be isolated from the air

which can reduce the aging speed of oil and prevent the insulation materials from damping

Oil-immersed transformer possesses a reliable operation and is free from maintenance

transformer3150kva
				Loss(kW)				Weight (kg)			(mm)			Gauge
Rated Capacity	Voltage Group(kV)		Connection Method		(75)	No-load current	Impedance Voltage				(L)	(W)	(H)
(kVA)	HV	LV	Connection Method	No-load	Load	%	%	Machine	Oil	Gross	Dimension			Vertical	Horizontal
50				0.21	1.21	2		195	205	590	1000	950	1450	550	550
100				0.29	2.02	1.8		320	240	790	1080	1000	1600	550	550
125				0.34	2.38	1.7		395	270	950	1100	1030	1630	660	660
160				0.36	2.83	1.6		460	285	1020	1130	1060	1630	660	660
200				0.43	3.33	1.5		555	325	1170	1190	1060	1670	660	660
250				0.51	3.96	1.4		630	340	1340	1260	1160	1700	660	660
315	38.5		Dyn11	0.61	4.77	1.4		720	400	1530	1280	1240	1790	660	660
400	36.5	0.4	Yd11	0.73	5.76	1.3	6.5	830	490	1780	1960	880	1900	820	820
500	35		Dyn5	0.86	6.93	1.2		930	510	1960	2020	940	1920	820	820
630	33		Yyn0	1.04	8.28	1.1		1085	600	2290	2070	1010	2010	820	820
800				1.23	9.9	1		1270	660	2640	2240	1040	2150	820	820
1000				1.44	12.15	1		1495	735	3100	2300	1200	2150	820	820
1250				1.76	14.67	0.9		1775	830	3630	2450	1280	2250	1070	1070
1600				2.12	17.55	0.8		2140	935	4235	2220	1510	2350	1070	1070
2000				2.61	21.5	0.8		2535	1035	4910	2310	1740	2440	1070	1070
2500				3.15	23	0.8		3140	1190	5840	2370	1840	2490	1070	1070
(Note): (Tapping range of high voltage) ±5%; ±2×2.5%. power transformer oil distribution transformer
