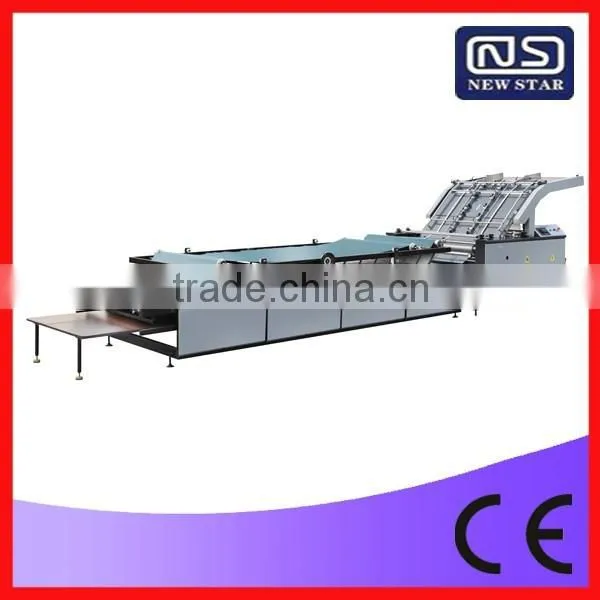

GFMH series Semi-auto Flute Lamination Machine
Specifications
1. Single feeding
2. Bottom sheet feeding automatic
3. Unilatereal regulation
4. Water roller cleaning.
Function description:
1. The top paper can pile up the height of 1.5m once time, it makes delivery more easier and efficient.
2. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking
3. Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.
4. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm
5. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;
6. The scientific design of the metering roller speed to ensure the glue evenly on the same time, to avoid rejection of glue at high speed.
7. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick
8. Control of water tank cleaning cycle using an independent method, clean, hard rubber product;
9. Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;
Color top sheet 175-500g and grey cardboard paper laminating
Main Technical Parameter:
Model |
Max.Sheet size |
Min.Sheet size |
Total power |
Speed |
Weight |
Measurement |
YB-1100BG |
1100*1100mm |
350*350mm |
8.5kw |
0-90m/min |
4500kg |
10000*1770*2300mm |
YB-1300BG |
1300*1100mm |
350*350mm |
8.5kw |
0-90m/min |
5500kg |
10000*1970*2300mm |
YB-1450BG |
1450*1100mm |
350*350mm |
9.5kw |
0-90m/min |
6500kg |
10000*2020*2300mm |
YB-1650BG |
1650*1300mm |
350*350mm |
11kw |
0-90m/min |
7500kg |
10000*2250*2300mm |

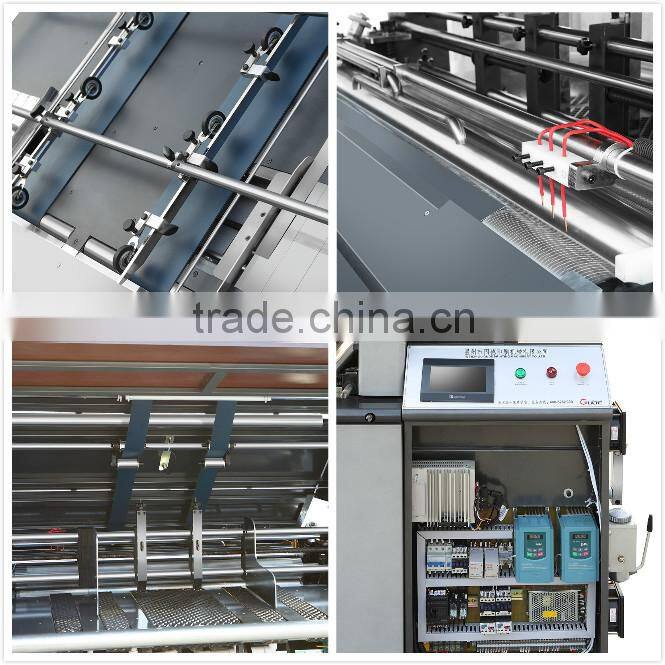

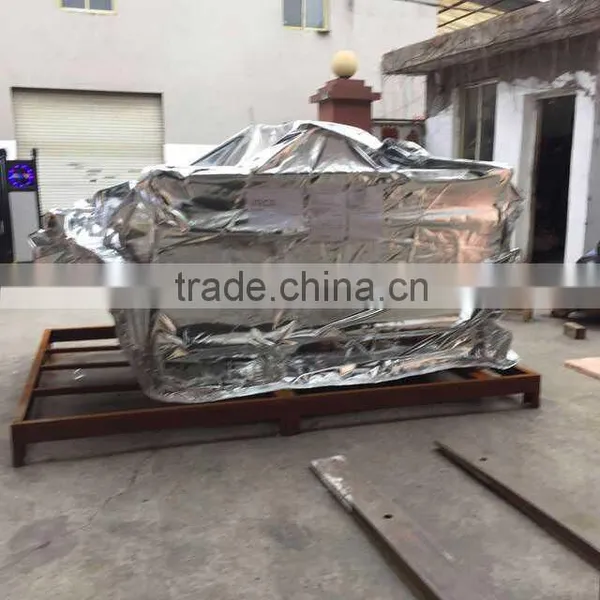

Detail pics:

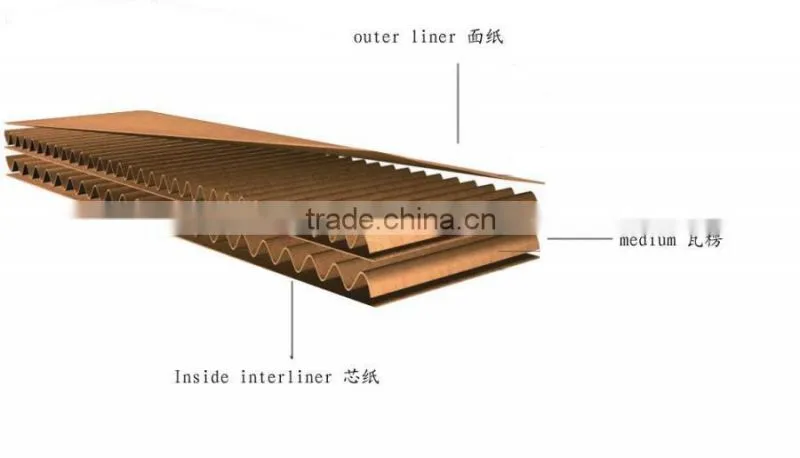

Appliction:
