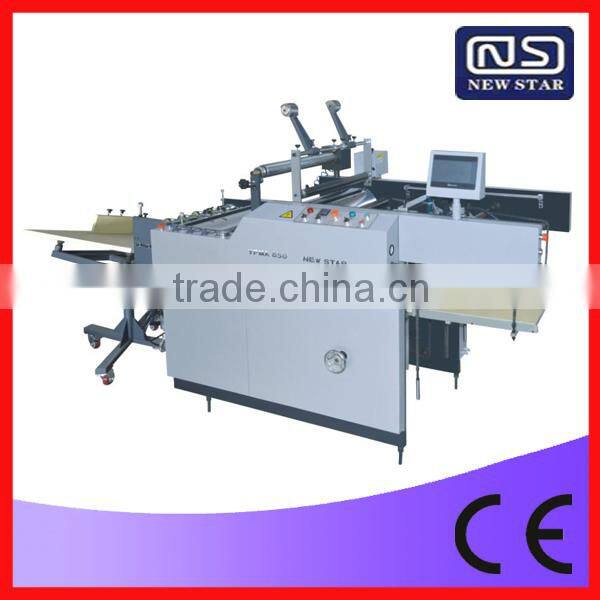

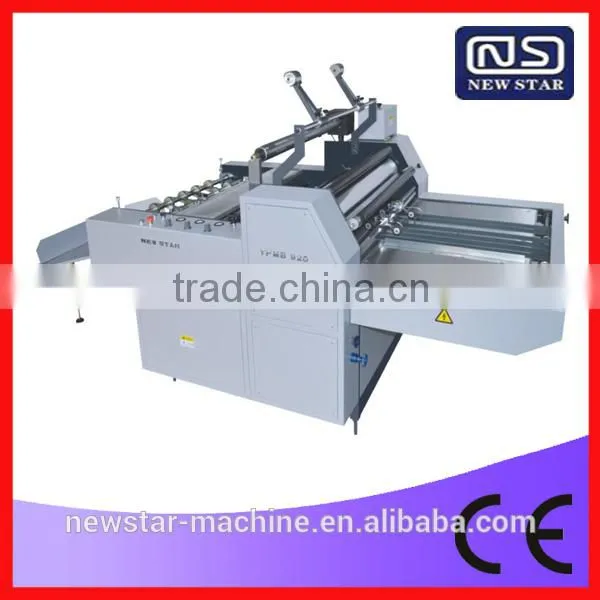

YGFM-1100A automatic paper laminating machine
Applications
·To suit two kinds of film:pre-glued film and glueless film
Configuration
·Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.and paper can be added even if the machine is kept running,which improves working efficiency so much.
·Man-machine interface system:color touch screen simplifies the machine operation.on the touch screen,as Iong as the operator inputs paper size,overlap length and working speed etc,.the machine can realize completely automated operation. and on touch screen,working status of the machine can be checked at any time.
·Automatic paper feeding system is equipped with no paper protector,paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. when no paper,paper break or paper superposition occurs,the machine will stop automatically for self-protection.
·Conveying table is furnished with air aspirator and front lay etc. to regulate paper conveying and overlap and improve laminationprevision.
·High precision of big chrome plated heating roller is equipped with built-in oil heating system,which has excellent performance to temperature control.The Iaminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.
·Air expansion shaft releases film,and perfects the precision of film release,and also makes the Ioading and unloading offilm rolI much more convenient.
·The combination of air expansion shaft and braking device can adjust film release tension and release speed.
·Pneumatic cutting system realizes automatic paper cut as Iong as the operator inputs the size of workable paper on the touch screen.
·Collecting unit iS furnished with corrugating paper pressing system, which settles completely the crimping trouble of thin and big size of Iaminated paper.
Technical Parameters
| Model | YGFM-1100A |
| Max paper size | 1100x1200mm |
| Min paper size | 300x300mm |
| Laminating speed | 0-50m/min |
| Paper weight | 100-500g |
| Power | 30kw |
| Total Weight | 5000kg |
| Overall Dimensions | 9000x2260x1900mm |
1. Professional English speaking engineers are online ready for your troubleshooting service. It is reachable in an easy way.
2. We guarantee prompt warranty service for parts repairmen and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests and offer 7 days' free training and installation service when customer bear the traveling expense including visa, round trip tickets, boarding and lodging at service place.

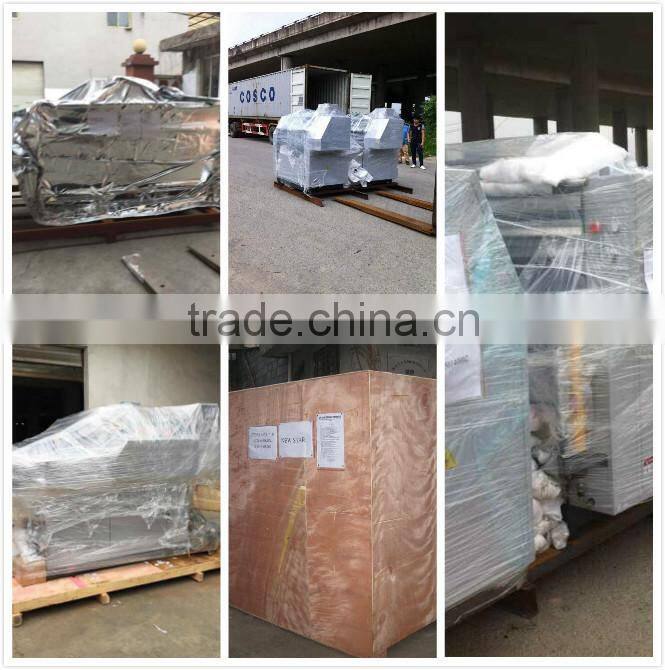

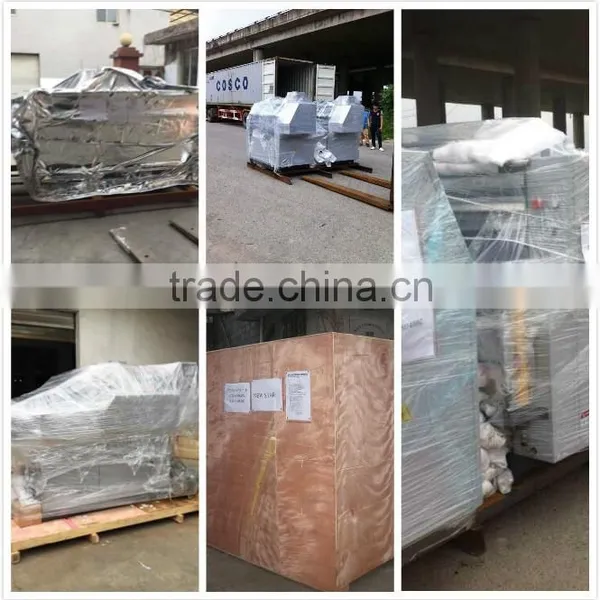

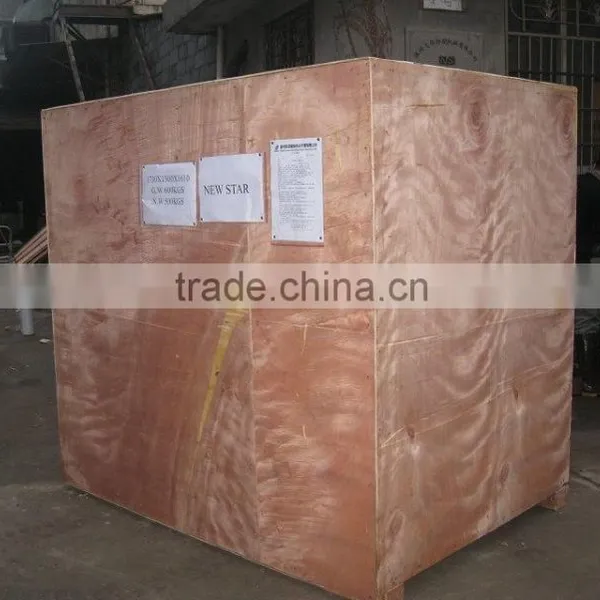

Wooden case & vacuum plastic packaing
shipping by sea
1.What is the machine size after packaged?
A: 4800*1650*1700mm
2.Degree of automation ?
A: Automatic
3.Heating way , electric heating or oil heating?
A: Oil heating
4.How to receive the paper,automatic stacker or jogger delivery?
New Star Machinery International Limited, based on Wenzhou New Star Printing Machinery Company, is engaged in the manufacture of all kinds of post-press machines and paper packaging equipment. Our main products are UV coating machines of big sizes or small sizes, manual or automatic laminating machines, spot UV coating machines, UV coating machines of small smart office use, automatic laminating machines and book binding machines (automatic or manual). We also deal with folding machines, hot stamping machines, punching machines, box making machines and machine parts, such as UV oil, Teflon belts and rings for binding. We have more than 10 years laminating machine and uv coating machine' manuelfacture experience.
