Help CenterVehicle Load Bank
Related Products
Specifications

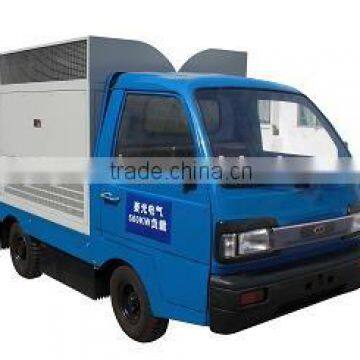

load bank with truck.1.OEM
2.ISO 9001:2008
3.PRODUCTS DIVERSITY
4.STRICT PRODUCTION PROCESS and
Shanghai Lingguang Electric Apparatus Manfacturing Co.,LTD (Lingo)established in 1991.
Professional industrial electrical products -- resistance box, load box, center grounding resistance, manufacturers in domestic resistor manufacturing enterprises have higher visibility.
With nearly 150 employees, scientific and technical force is abundant, has many national patents (Example: ZX18V type resistors, patent number 03230790).
Had including CNC plate shears, CNC folding machine, CNC punching, more than 60 sets of large-scale processing equipment.
Enterprise through IS09001 quality system, ISO14001.2004 environmental management system and GB/T2800-2001 worker health and safety management system.
LINGO widely used in steel, electric power, ship, railway, electronics, and etc, the products have been exported to Japan, France, Germany, Egypt, etc.
LINGO is located in Shanghai PuDong new area, has a total area of about 9,000 square meters workshops, warehouses and office center.
Excellent ability of research development
The advanced production processing equipment
Complete production assembly processing capacity
Perfect quality guarantee system
Quickly logistic support capacity
Timely and efficient service response
Enterprising management team
With first-class product quality to win the trust of customers
With first-class marketing quality to win the confidence of users
With first-class service quality to win the satisfaction of customers
we can design this load bank according to the customer requirements.
LGFZL-1000 Load Bank SpecificationMain parameters and fitting
1Resistance load equipment: 1000KW
2Power factor: 1.0
3Test voltage: three phase AC voltage 400V
4Frequency: 50--60Hz
5Active power step:
5KW X 1 step 10KW X 1step
20KW X 2step 50KW X 1step
100KW X 1step 200KW X 4step
6Normal Operational Conditions
In summer the ambient temperature is 45,humidity is 90%.In winter the ambient temperature is -20, humidity is 50%
7ventilation power and the control power of the load bank are 3 phase 5 wire ( 400V/50HZ).
8Cooling mode: forced air convection, the fanner with axial-flow, the direction of the air is coming from the bottom and outgoing from the above.
9Controlling mode: Manual control(computer can be selected).
10Load bank rated power error: thermal state: ±10, cold state: -2.
11Protection device: over-current, short-current, over-load protection for the fanner. With emergency stop, with circuit breaker for each branch of line incoming and load bank.
12Weight: 1500KG
Main units
1) resistance material: stainless steel 304.
2) Circuit breaker: NS series of Schneider
Cable specification: AGRP type withstand high temperature feature.
Contactor: LC1 series contactor of Schneider.
3) the fanner with axial-flow
4)instrument: ETAS instrument RS-485
5)Transformer: ALH-0.66 of Changjiang of Jiangyin city
6) key: Changjiang of Jiangyin city
7) the frame is weld by material.
8)overall dimension: L2400 X W1100 X H1500
Send Inquiry to This Supplier
