SS810 Automatic High Torsion Electric Power Transformer Coil Winding Machine

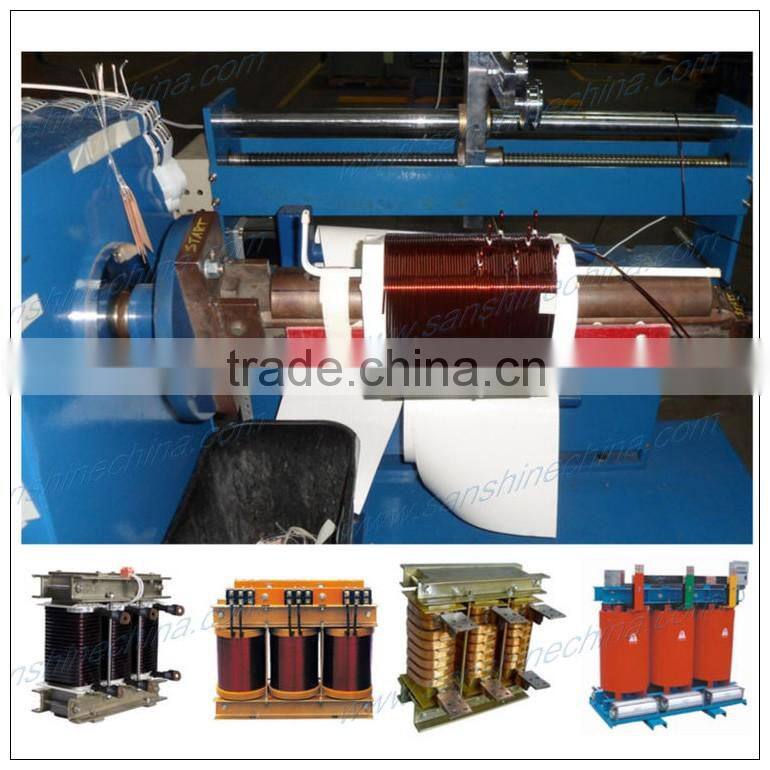

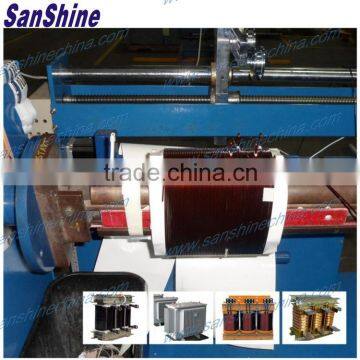

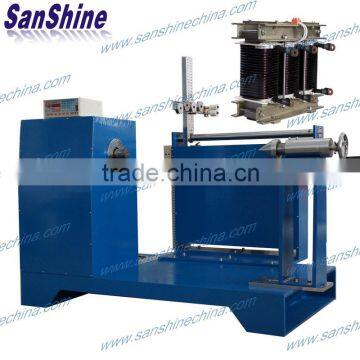

SS810 Automatic high torsion electric power transformer coil winding machine

Description of SS810 Automatic high torsion electric power transformer coil winding machine :
The SS810 Automatic high torsion electric power transformer coil winding machine adopts computer numerical control system. It is driven by column decelerating devices and equipped with precise stepping motor for wire spread during winding. The winding machine is specially used for processing the large-scale electric power transformers, large reactor coil, some thick wire of big coil.

 Features of SS810 Automatic high torsion electric power transformer coil winding machine:
1. Big memory for processing programs(0~999 steps).
2. It can be clockwise and reverse winded with a high speed.
3. The winding turns is accurately. There is the function of power-off protection.
4. When some problems occur, the data can be automatically saved.
5. CNC can monitor and display the production status.
6. The setting is easy and the operation is convenient.
7. Big torsion, low-speed winding.

Specification of SS810 Automatic high torsion electric power transformer coil winding machine :
1. Power source: AC 380V, 3phase, 50/60Hz.
2. Power: 3HP
3. Winding speed: 0~150RPM
4. Wire diameter: Round wire Φ 6.0~ Φ 9.0mm; Flat wire: Width 0~100m, thickness 0~20mm
5. Winding diameter: Φ 1300.0mm (Can be customized by requested)
6. Spread width: 820.0mm (Can be customized by requested)
7. Spread pitch: 0.001 - 9.999mm
8. Machine size:  L2400*W1200*1330mm

9. Machine weight: 700KG
