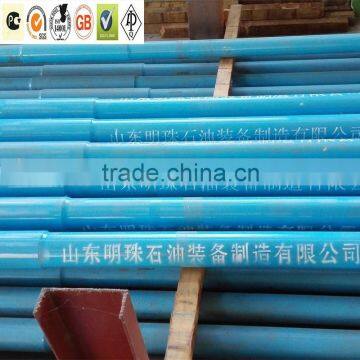

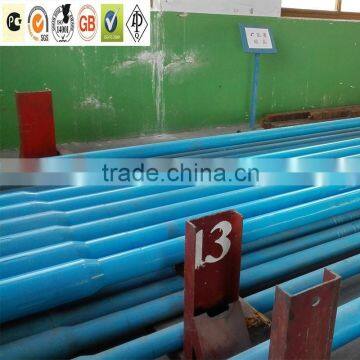

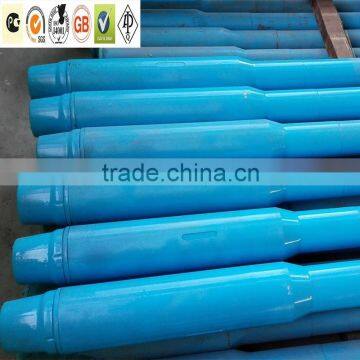

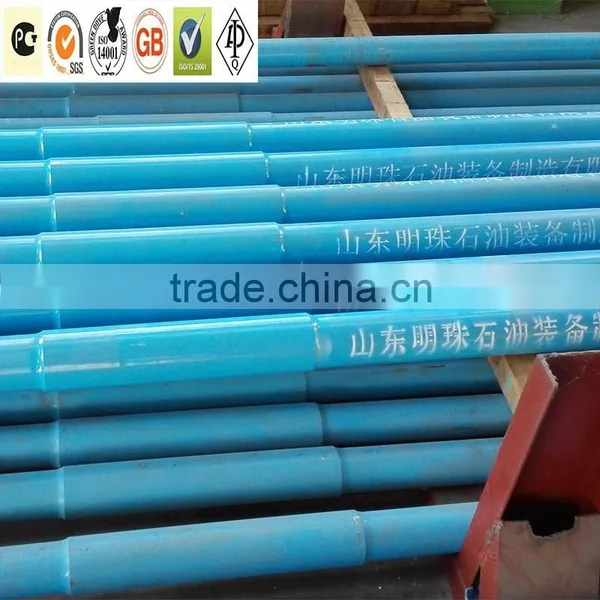

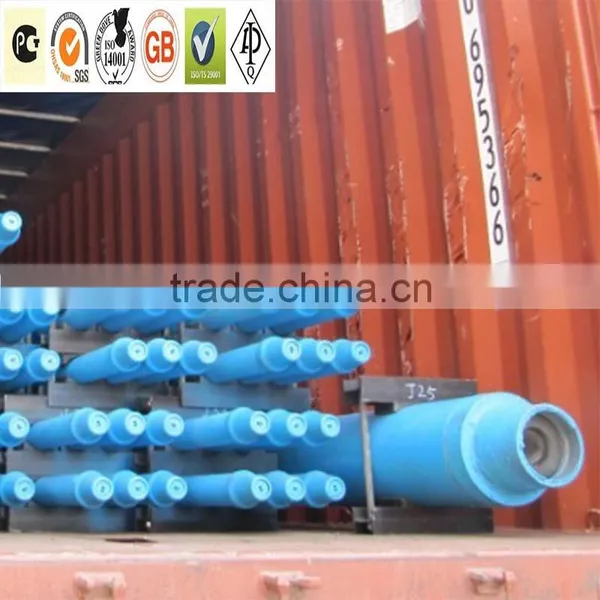

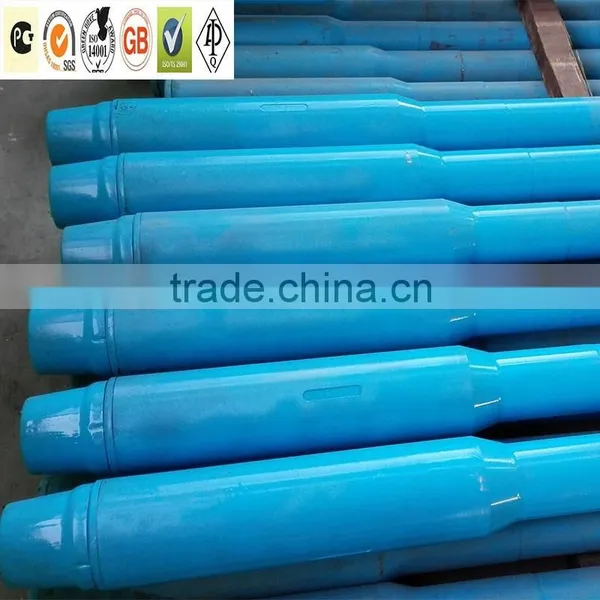

Help CenterIntegral Heavy Weight Drill Pipe (HWDP)
Related Products
-
HWDP APIUS$ 100 - 1,000MOQ: 10 Tons -
Heavy Weight Drill Pipe for Sale API HWDPUS$ 100 - 1,500MOQ: 20 Tons
-
API Heavy Weight Drill PipeUS$ 100 - 1,500MOQ: 20 Tons
-
Integral Heavy Weight Drill Pipe (HWDP)US$ 100 - 1,000MOQ: 10 Tons
-
China API Heavy Weight Drill Pipe HWDP for Oil WellUS$ 100 - 1,000MOQ: 10 Tons
Product Description
Specifications
1) Certificate: API 5DP, API Q1, ISO 9001, ISO 29001
2) OD: 2 3/8" to 6 5/8" or 60.32mm to 168.28mm
3) Grade:G105,S135,E75,X95
- Certificate: API 5DP, API Q1, ISO 9001, ISO 29001
- Size Range: 60.32-168.28mm
- OD: 2 3/8”, 2 7/8”, 3 1/2”, 4”, 4 1/2”, 5”, 5 1/2”, 6 5/8”
- Grade: G105, S135, X95, E75
- Wall Thickness: (0.25-0.50) inch or (6.45-12.70) mm
- Length: R1: 6.10-7.01m; R2: 8.84-9.75m; R3: 12.19-13.72m
- Upset style: IU, EU, IEU
Brief Introduce:
We are a manufacturing company. we have our own workshop with advanced equipment and hold strict quality control system in accordance with API Q1 and API 5DP.
Products Features :
- High quality raw material and advanced heat treatment make the products higher hardness and toughness. Especially it has higher low temperature toughness.
- Smoother and longer upset taper length and high performance pipe extends the drill pipe’s service life.
- Meet or exceed API SPEC 5DP, API SPEC 7-2, and API RP 7G requirement.
- dopt complete advanced testing method and strict quality control to ensure the high quality and stable performance products.
-
Holding advanced technology, high –end product R&D capabilities and senior technical workers, we can provide customers special requirement products.
Product Description
Specifications
1) Certificate: API 5DP, API Q1, ISO 9001, ISO 29001
2) OD: 2 3/8" to 6 5/8" or 60.32mm to 168.28mm
3) Grade:G105,S135,E75,X95- Certificate: API 5DP, API Q1, ISO 9001, ISO 29001
- Size Range: 60.32-168.28mm
- OD: 2 3/8”, 2 7/8”, 3 1/2”, 4”, 4 1/2”, 5”, 5 1/2”, 6 5/8”
- Grade: G105, S135, X95, E75
- Wall Thickness: (0.25-0.50) inch or (6.45-12.70) mm
- Length: R1: 6.10-7.01m; R2: 8.84-9.75m; R3: 12.19-13.72m
- Upset style: IU, EU, IEU
Brief Introduce:
We are a manufacturing company. we have our own workshop with advanced equipment and hold strict quality control system in accordance with API Q1 and API 5DP.
Products Features :
- High quality raw material and advanced heat treatment make the products higher hardness and toughness. Especially it has higher low temperature toughness.
- Smoother and longer upset taper length and high performance pipe extends the drill pipe’s service life.
- Meet or exceed API SPEC 5DP, API SPEC 7-2, and API RP 7G requirement.
- dopt complete advanced testing method and strict quality control to ensure the high quality and stable performance products.
- Holding advanced technology, high –end product R&D capabilities and senior technical workers, we can provide customers special requirement products.
Heavy Weight Drill Pipe Specification
|
Nominal Size |
pipe body | Tool Joint |
Single Weight kg|piece |
||||||
|
OD mm |
ID mm |
Upset Diameter |
RSC Type |
OD mm |
ID mm |
HSC Bevel Diameter mm |
|||
|
Ceter dia. mm |
End Dia. mm |
||||||||
| 3 1/2 | 88.9 | 57.4 | 101.6 | 98.4 | NC38 | 127 | 52.4 | 116.3 | 312 |
| 3 1/2 | 88.9 | 57.2 | 101.6 | 98.4 | NC38 | 127 | 57.2 | 116.3 | 282 |
| 4 | 101.5 | 65.1 | 114.3 | 106.4 | NC40 | 133.4 | 65.1 | 127.4 | 370 |
| 4 1/2 | 114.3 | 69.9 | 127 | 119.1 | NC46 | 158.8 | 69.9 | 145.3 | 558 |
| 5 | 127 | 76.2 | 139.7 | 130.2 | NC50 | 168.3 | 76.2 | 154 | 672 |
| 5 1/2 | 139.7 | 92.1 | 152.4 | 144.5 | 5 1/2FH | 184.2 | 92.1 | 170.7 | 776 |
| 6 5/8 | 168.3 | 114.3 | 184.2 | 176.2 | 6 5/8FH | 203.2 | 144.3 | 195.7 | 964 |
Heavy Weight Drill Pipe Flow Chart
Company Information
Shandong Mingzhu Petroleum Equipment Co., Ltd. is s professional petroleum equipment manufacture enterprise, which integrates R&D with production, sales and service. We are mainly engaging in production and sales of oil, gas and non-excavation drill string etc.; our products mainly include drill pipe, tubing, casing, drill collar, heavy weight drill pipe and other part. We strictly in accordance with the requirement of API Q1quality management system, and strictly control the products quality.
Our company will continue to enhance R&D production capacity with the growing good reputation in the petroleum equipment market. We shall satisfy you all over the world with quality, credit and satisfactory service by the first-class management, first-class talent, first-class equipment, first-class process and first-class quality.
Compony Activities
Company Equipment
Drill Pipe Processing Equipment:
- MTI inertial friction weld machine imported from America
- Pipe heat treatment furnace
- Drill pipe end upset machine
- Pipe vertical and horizontal magnetic leakage & ultrasonic inspection machine
- 6-roll thermal straightening machine
- Quench machine
Physical and Chemical Test :
- Metallographic microscope imported from Japan
- Impact testing equipment
- Spectrometer imported from Germany
- Tensile testing equipment
- Brinell sclerometer & Rockwell sclerometer
Company Certifacate
Sales Network
FAQ
If you are interested in our product and have any question contact me directly, we will provide you our best service.
Look forword to cooperating with you!
