Home > Products > LED Spot MR16 > led light mr16 8W 12VDC/AC dimmable

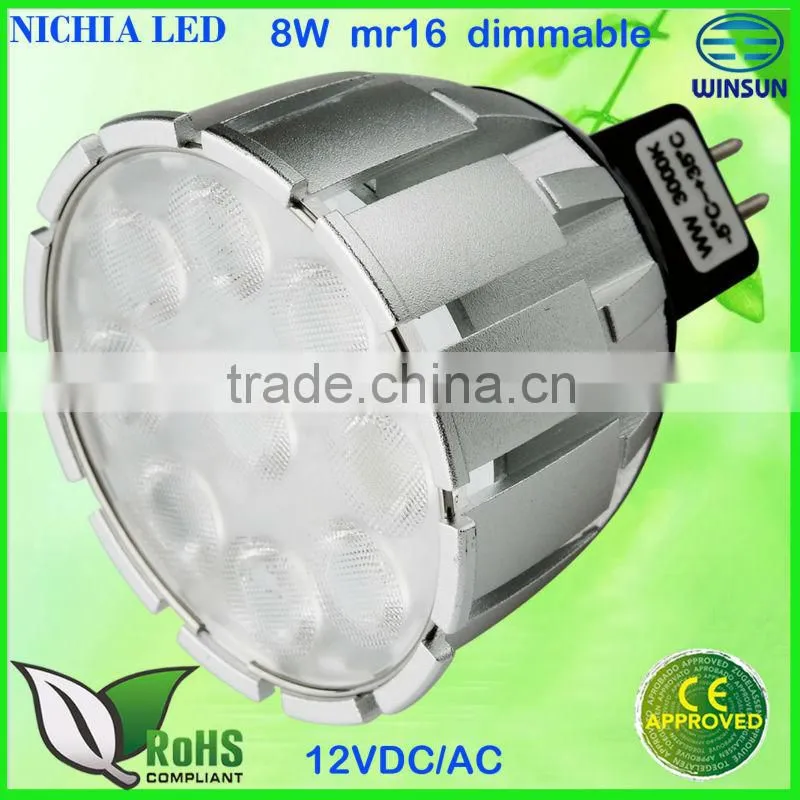

led light mr16 8W 12VDC/AC dimmable
- 10000 Piece / Pieces per Month
- Shanghai
- D/P D/A Credit Card PayPal
You May Like
Product Details
| LED Light Source | Genuine NICHIA | Warranty(Years) | 5 | |
| Input Voltage(V) | 12VDC/AC | Lamp Power(W) | 8 | |
| Lamp Luminous Flux(lm) | 700 | Lamp Luminous Efficiency(lm/w) | 87.5 | |
| Color Temperature(CCT) | Other, 2400k,2700K,3000K,4000K,5000K | Working Temperature(℃) | -5, 35 | |

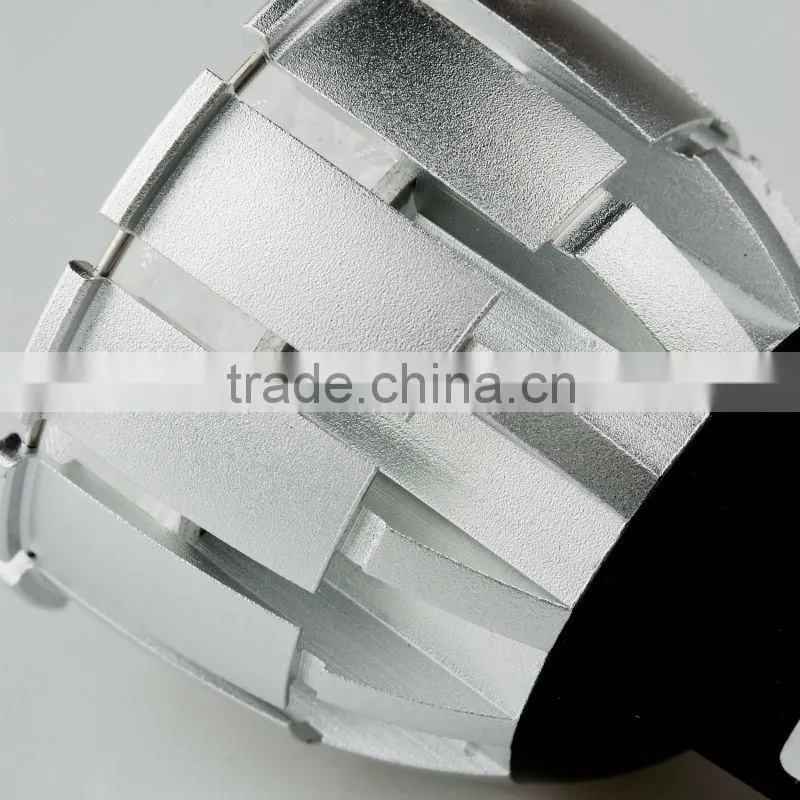

| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| Certification | CCC, CE, CQC, Energy Star, EMC, GS | Base Type | MR16 | |
| Place of Origin | Shanghai, China | Brand Name | WINSUN | |
| Model Number | D5007-H2-DIM-MR16 |
Product Description
led light mr16 8W 12VDC/AC dimmable , 50000 hrs lifetime with genuine NICHIA LED
Application:
Area: Indoor use only.
Purpose: Accent lighting.Local liging.
Product Features:
Product Features:

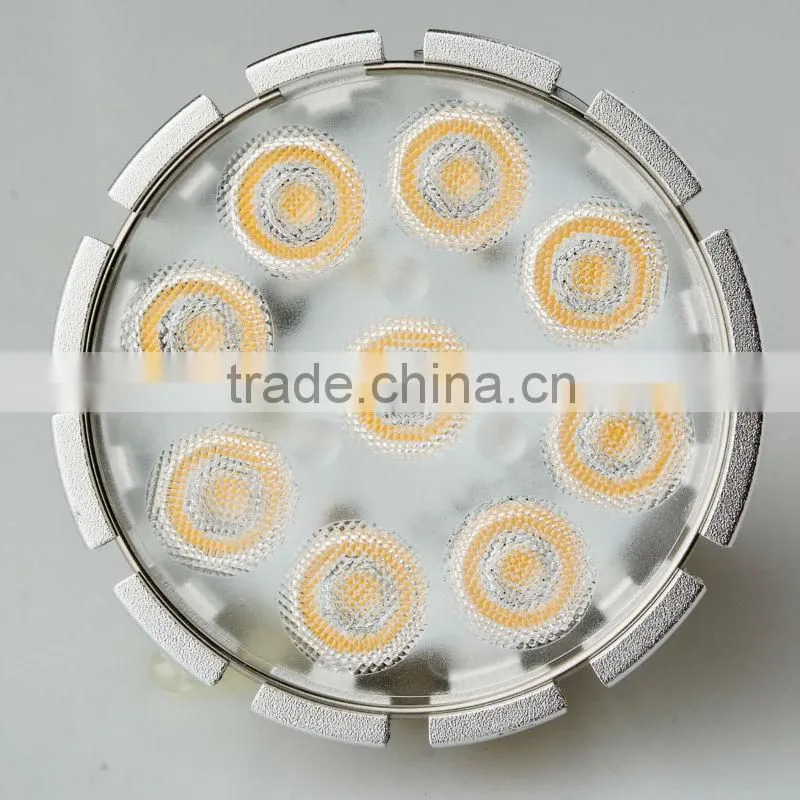

Adopting GENUINE NICHIA LED, lumens of natural white up to 700Lm,and of warm white up to 600 Lm.
Its form-factor guarantees a 100% form-fit on the back-side of the lamp(exact form fit with halogen lamps)
Delivers a beam intensity which reaches that of a 50W halogen lamp. That it can replacement for 50W halogen lamp directly.
Dimmable down to 15% with most of trailing edge dimmers, when in conjunction with recommended electronic transformers.0-100% dimmable with PWM or 0-10V dimmer.
It uses an active power factor correction structure to control the input current, so that the PFC can reach over 0.95 when in conjunction with electronic transformer.
Specification:
Model Number | D5007-H2-DIM-MR16(WW) | D5007-H2-DIM-MR16(NW) |
Power Consumption | 8W | 8W |
LED | NICHIA | NICHIA |
Efficiency(lm/W) | 75lm/W | 87.5lm/W |
Color Temperature | 2400K±100K, 2700±100K, 3000±100K | 4000±200K,5000±200K |
Beam Angle | 36° / 60° | 36° / 60° |
Input Voltage | 12VDC/AC | 12VDC/AC |
Working Temperature | -5°C~+35°C | -5°C~+35°C |
Base Type | MR16 | MR16 |
Dimension(mm) | φ49.8×58 | φ49.8×58 |
Net Weight | 62g | 62g |
Lifetime(hr) | 50000 | 50000 |
Packaging information:
Packing: 100 boxes / carton | ||
Box | 52×52×70(mm) | 79g |
Carton | 46×29×24(cm) | 9.1kg |
Optical Performance:
Model Number | Beam Angle | Color Temperature | Light Intensity | Lumens | CRI |
D5007-H2-DIM-MR16(WW) | 36° | 3000±100K | 1210cd | 600 | 85 |
D5007-H2-DIM-MR16(NW) | 36° | 5000±200K | 1290cd | 700 | 85 |
D5007-H2-DIM-MR16(WW) | 60° | 3000±100K | 450cd | 520 | 85 |
D5007-H2-DIM-MR16(NW) | 60° | 5000±200K | 510cd | 600 | 85 |
WINSUN Target
Creat energy saving and environmental protection products and bring them to the whole world.
WINSUN Mission
Produce the most reliable lighting products and let people easy to get them.
WINSUN Core Values
1. High quality wins value
2 .Innovation makes motivation
3. Frank honesty and mutual trust
4. Enterprising spirit and synchronous progress
5. Realistic and insistent
OEM/ODM Provided
With more than 10 years experience in the lighting industry of WINSUN's R&D department and professional trained workers who has rich assembly knowledge. With our own brand "WINSUN", OEM and ODM services can also be provided, customized products and color box with your own brand can be designed.
