Recessed Spot Dimmable Led Spotlights Mr16 8w
- Shanghai
- D/P D/A Credit Card PayPal
You May Like
Product Details
| LED Light Source | Genuine NICHIA | Warranty(Years) | 5 | |
| Input Voltage(V) | 12VDC/AC | Lamp Power(W) | 8 | |
| Lamp Luminous Flux(lm) | 700 | Lamp Luminous Efficiency(lm/w) | 88 | |
| Color Temperature(CCT) | Other, 2400k,2700K,3000K,4000K,5000K | Working Temperature(℃) | -5, 35 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| Certification | CCC, CE, CQC, Energy Star, EMC, GS | Base Type | MR16 | |
| Place of Origin | Shanghai, China | Brand Name | WINSUN | |
| Model Number | D5007-H2-DIM-MR16 |
Product Description
recessed spot dimmable led spotlights mr16 8w
Specifications:
Model Number | Power Consumption | LED | CRI | Efficiency (lm/W) | Color Temperature | Beam Angle | Input Voltage | Light Intensity | Lumens | Dimmable |
D5007-H2-DIM-MR16 (WW) | 8W | NICHIA | 85 | 75 | 2400±200K 2700±200K 3000±200K | 36° | 12VDC/AC | 1370 cd | 600lm | YES |
D5007-H2-DIM-MR16 (NW) | 8W | NICHIA | 85 | 88 | 4000±200K 5000±200K | 36° | 12VDC/AC | 1470 cd | 700lm | YES |
D5007-H2-DIM-MR16 (WW) | 8W | NICHIA | 85 | 65 | 2400±200K 2700±200K 3000±200K | 60° | 12VDC/AC | 490 cd | 520lm | YES |
D5007-H2-DIM-MR16 (NW) | 8W | NICHIA | 85 | 88 | 4000±200K 5000±200K | 60° | 12VDC/AC | 520 cd | 600lm | YES |
General Characteristics:

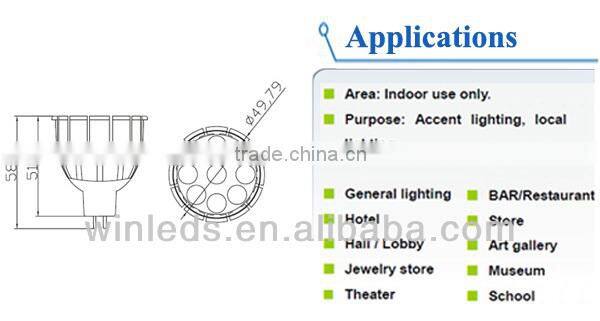

Model Number | Product name | Material | IP Rating | Dimension (mm) | Net Weight | Lifetime (hr) | Working Temperature |
D5007-H2-DIM-MR16(WW) | LED spot mr16 | Aluminum | IP20 | Φ49.8×58 | 62g | 50000 | -5°C~+35°C |
D5007-H2-DIM-MR16(NW) | LED spot mr16 | Aluminum | IP20 | Φ49.8×58 | 62g | 50000 | -5°C~+35°C |

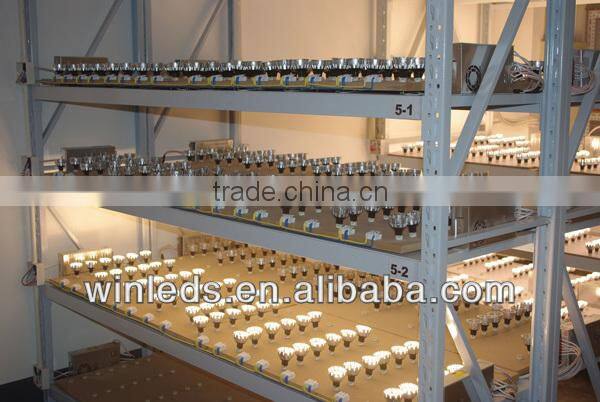

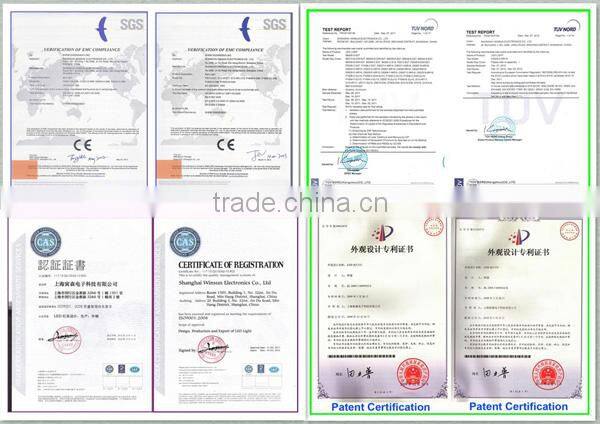

Test Reports:

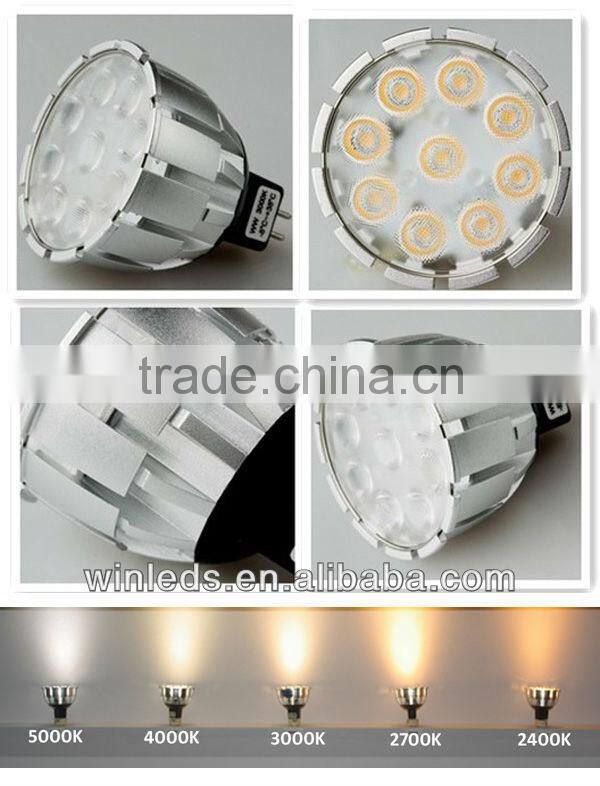

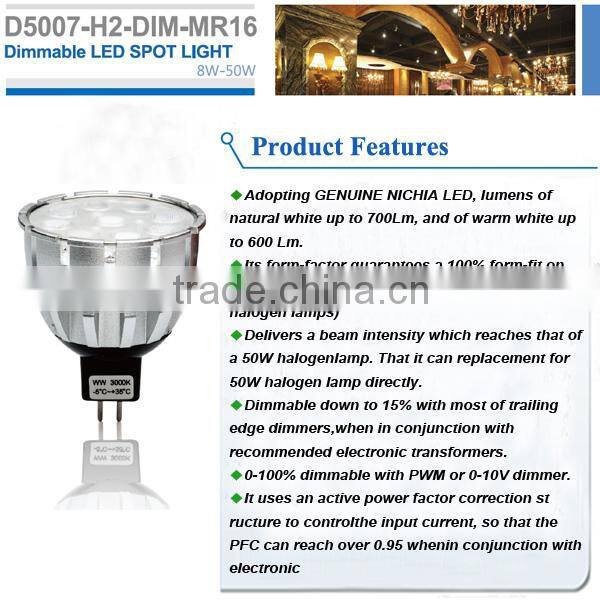

Detail Show:

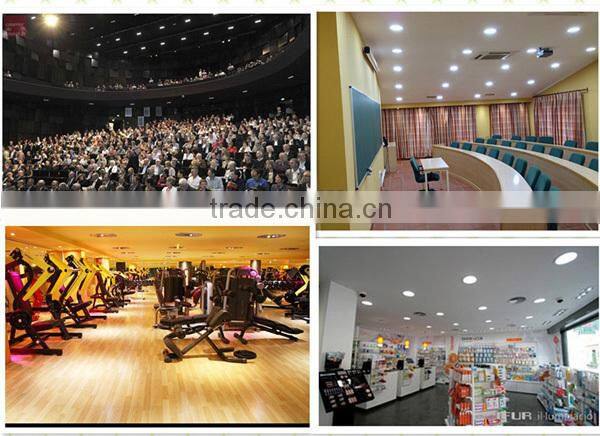

Projects Show:
Winsun hot sold MR16 & GU10 models:
Packing Information:
Packing: 100 PCS / carton | ||
Box | 52×52×77(mm) | 0.072 g |
Carton | 460×290×255 (mm) | 8.5 kg |
Individual inner carton for each product, 100pcs/ Outer carton
Usually within 1 week for sample order and 2-4 weeks for normal orders, also concerns with your order quantity and our production schedule
WINSUN Target
Creat energy saving and environmental protection products and bring them to the whole world.
WINSUN Mission
Produce the most reliable lighting products and let people easy to get them.
WINSUN Core Values
1. High quality wins value
2 .Innovation makes motivation
3. Frank honesty and mutual trust
4. Enterprising spirit and synchronous progress
5. Realistic and insistent
OEM/ODM Provided
With more than 10 years experience in the lighting industry of WINSUN's R&D department and professional trained workers who has rich assembly knowledge. With our own brand "WINSUN", OEM and ODM services can also be provided, customized products and color box with your own brand can be designed.
Contact Us
- Shanghai Winsun Electronics Co., Ltd.
- Contact nameEric Xue Chat Now
- Phone86-021-54832502 54832503
- Address62, Lane 99, Chunguang Road
