Help CenterBZJ-511 Color Mark Sensor
Related Products
Specifications
BZJ-511 color mark sensorcolor mark sensor factory price
Specialized in color mark sensor
CE certification
2 years warranty
Welcome,my friend! Glad to introduce our BZJ-511 color mark sensor and our company Hugong Group to you. If you have any questions, please don't hesitate to ask me.
Product details

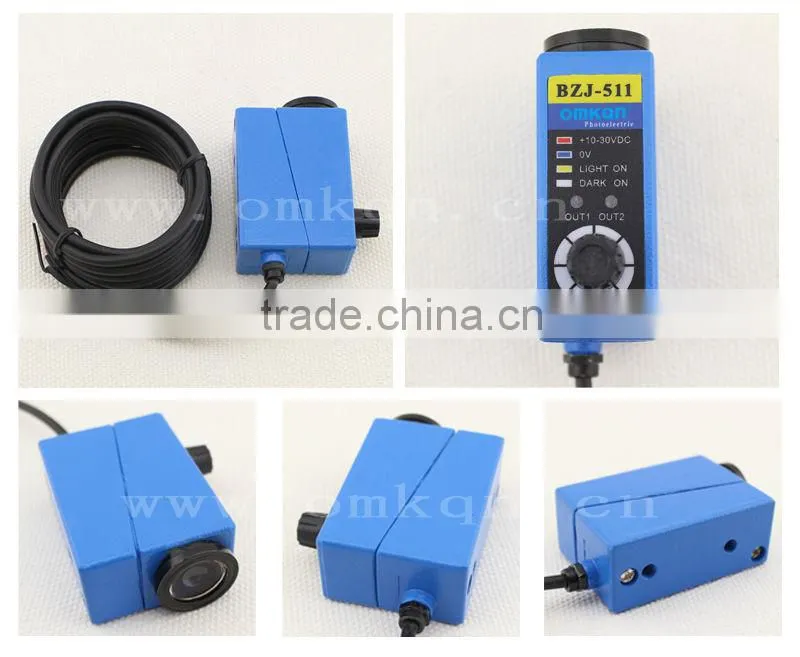

Product appearance pictures of BZJ-511 color mark sensor
The specification of BZJ-511 color mark sensor
meaning of model
1) Color mark sensor
2) Design program:1,2,3,4,5......
3) Class to light path: 1. coaxial, 2. non coaxial
4) Class to light source: 1.single light source, 2. double light source
5) Color to light source: R: red, G: green
6) Class to logic: N-NPN, P-PNP
specification
| Model | BZJ-511G | ||
| Light source | Green | ||
Output type |
NPN | ||
Response time |
500us | ||
Detecting distance |
10mm±2mm |
||
Output current |
<200mA |
||
Supply Voltage |
10-30VDC |
||
Protection |
Load short-circuit protection polarity reversed protection |
||
working atmosphere |
0-50°C,less than 10000 Lux sunlight | ||
Size(mm) |
23×40×56 |
||
| cable | 2m PVC | ||

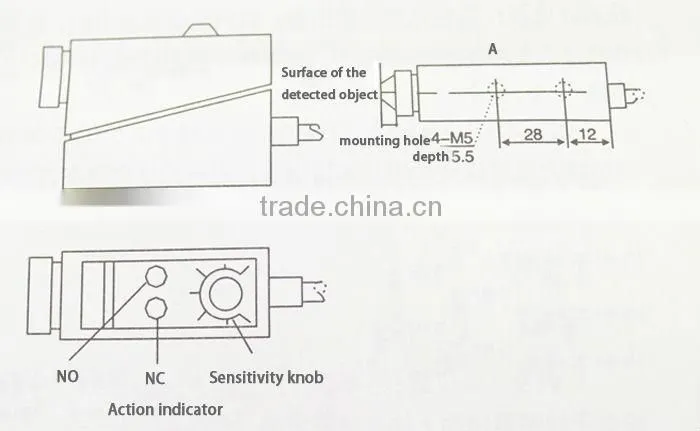

Installation
Applications legend
What type of sensor do you need? You need to consider the following factors:
Detected object |
magnetic metal |
inductive proximity sensor |
conventional object |
capacitive proximity sensor |
|
photoelectric sensor | ||
Detecting range |
less than 50mm |
proximity sensor |
greater than 50mm |
photoelectric sensor |
|
Detection mode |
magnetic |
hall effect sensor |
reed sensor | ||
infrared |
photoelectric sensor |
|
Installation dimension |
cylindrical |
cylindrical type |
square |
square type |
|
groove |
groove type |
|
Connection |
cable |
cable type |
connector |
connector type |
Factory information
1.Our company has focused on sensors for over 20 years, Our brand OMKQN is most popular brand of sensors in China.

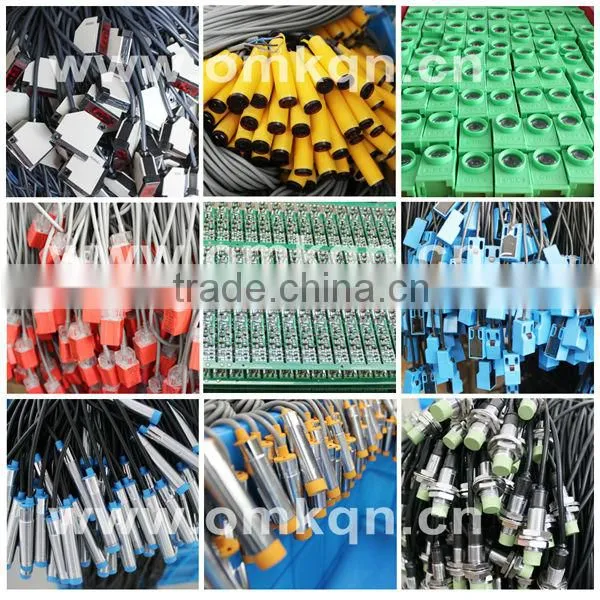

2.We are professional sensor manufacturer with professional R & D team ,mass production, complete type of sensors and large inventory spot.
3.Process:our products will be packed and shipped ,undergoing the strict material selection,production ,inspection and a series of steps.
4.CE certification
5.Here are our ministry of foreign trade's members.
Thanks for your time , Waiting for your kindly inquiry:)
