Home > Products > OUTDOOR LED Display > RGX P3/p4/p5/p7/p10/p12/p16 outdoor indoor text single color led text display,mesage dual color led panel display
RGX P3/p4/p5/p7/p10/p12/p16 outdoor indoor text single color led text display,mesage dual color led panel display
- 500 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | RGX | Model Number: | RGX-7-O-F- led display |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | 7mm | Screen Dimension: | Size by Customize |
Product Description

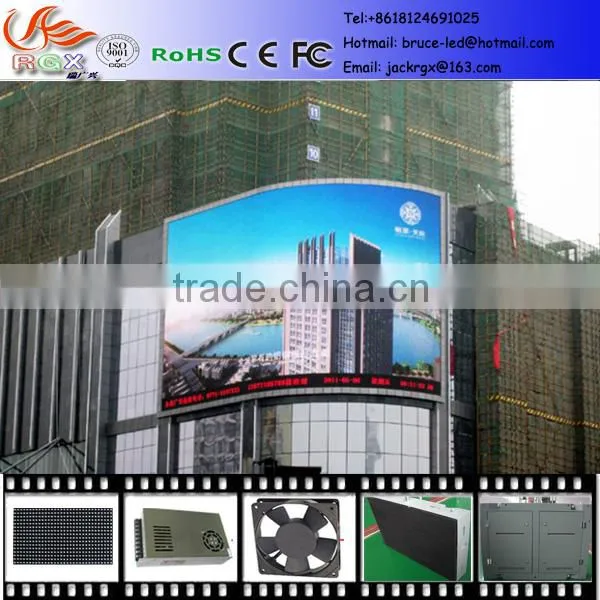

2 RGX P7mm outdoor led large screen display
Unit Module | Item: | RGX outdoor led display Parameter |
Model: | P7mm Full color outdoor led Module | |
Pixel Pitch: | 7 mm | |
Pixel configuration: | 1R1G1B 3in1 DIP | |
Module Size: | 224mm * 112mm | |
Module Resolution: | 32dots(W) * 16dots(H) | |
Module Thickness: | 25 mm | |
Module Weight: | 0.47 KG | |
LED type: | DIP468 3in1 | |
Max Power: | 23W | |
Pixel Density: | 20408 dots / SQM | |
Driving Method: | Constant Current Driving | |
Scan Method: | 1/8 Scan | |
Interface Way: | HUB 75 B | |
Brightness: | ≥ 7500CD /SQM | |
Unit Cabinet | Cabinet Size: | 896mm * 896mm (Support Customize) |
Cabinet Composing: | 32 pcs | |
Power Supply Mode: | 5V/40A 5V/60A | |
Cabinet Resolution: | 128dots * 128dots | |
Optimal Viewing Distance: | 6-80M (according to the screen size) | |
Optimal Viewing Angle: | Horizontal angle: 160 degree; Vertical angle: 90 degree | |
Environment Temperature: | Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree | |
Relative Humidity: | 10% ~ 95% | |
Power | Operating Voltage: | AC:100V~120V AC:220~240V |
Average Power: | 350W/ SQM | |
Max Power Consumption: | ≤ 600W | |
Current: | ≤ 20mA (single LED) | |
Control System | Computer: | Pentium4 or above P4 or above |
Operate System: | Win98/2000/NT/XP | |
Control Mode: | Synchronization with PC | |
Main Technical Parameter | Driving Device: | IC Constant Current Driving |
Refresh Rate: | ≥ 600Hz | |
Gray/Color: | RGB each 256 grade, can display 16.7color | |
MTPF: | ≥ 9000hours | |
Power Switch: | Automatic Switch | |
Display Mode: | 800*6001024*7681280*960 |
3 P7 real DIP 3in1 led module full color Photo:
2: RGX Company Photo:
5: Test: Each producing step of P7mm full color led display we have strict test.
6: RGX Certification:
7: Installation: ( Our factory will give you Drawing to teach you how to install it)
8: RGX led display screen system:
9: Pack, Flight case or Wooden case
10: Transportation:
11: Tech. Support:
12: Our Advantage:
1) Competitive price
2) Professional manufacturer
3) Exquisite quality
a: ISO 9000 and 5S management system
b: Each procedure have special machine and QC to supervise and check
c: From the material purchasing, all have the special Equiment to stakeout
4) Perfect service
a; 2-3years guarantee with free charge, maintain in all life
b: Free training in our company or guide installation and train in customer country or on lone training by long-distance control in internet
c: Regular training and meeting in each month for all customers, provide strong technology for each customer at the first time
5) Delivery date is quick and on time
6) New product exploring
Collecting the customers ideas combined with the LED Market requirement, gradually perfect the LED signs functions, on meanwhile research the new LED signs to satisfy the customer demand
In the end, thank very much for you time, and wish you have good days and good business in you lift.
