Edifice p7 Led Display Distribute

Edifice p7 Led Display Distribute thumbnail-1
Edifice p7 Led Display Distribute thumbnail-2
Edifice p7 Led Display Distribute thumbnail-3
Edifice p7 Led Display Distribute thumbnail-4
Edifice p7 Led Display Distribute thumbnail-5
Edifice p7 Led Display Distribute thumbnail-6
Edifice p7 Led Display Distribute photo-1
Edifice p7 Led Display Distribute photo-2
Edifice p7 Led Display Distribute photo-3
Edifice p7 Led Display Distribute photo-4
Edifice p7 Led Display Distribute photo-5
Edifice p7 Led Display Distribute photo-6
US$ 1,350 - 1,500 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RGX
Model Number:
RGX-7-O-F- led display
Contact Supplier Request Quote Chat Now
Shenzhen RGX Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name RGX
Model Number RGX-7-O-F- led display
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 7mm
Screen Dimension Size by Customize

 Edifice p7 led display distribute





Product Description

  2   RGX P7mm outdoor led large screen display



Unit Module

Item:

RGX outdoor led display Parameter

Model:

P7mm Full color outdoor led Module

Pixel Pitch:

7 mm

Pixel configuration:

1R1G1B 3in1 DIP

Module Size:

224mm * 112mm

Module Resolution:

32dots(W) * 16dots(H)

Module Thickness:

25 mm

Module Weight:

0.47 KG

LED type:

DIP468 3in1

Max Power:

23W

Pixel Density:

20408 dots / SQM

Driving Method:

Constant Current Driving

Scan Method:

1/8 Scan

Interface Way:

HUB 75 B

Brightness:

≥ 7500CD /SQM

Unit Cabinet

Cabinet Size:

896mm * 896mm (Support Customize)

Cabinet Composing:

32 pcs

Power Supply Mode:

5V/40A  5V/60A

Cabinet Resolution:

128dots * 128dots

Optimal Viewing Distance:

6-80M (according to the screen size)

Optimal Viewing Angle:

Horizontal angle: 160 degree;

Vertical angle: 90 degree

Environment Temperature:

Storage: -40 degree `~ +85 degree

Work: -20 degree ~ +60 degree

Relative Humidity:

10% ~ 95%

Power

Operating Voltage:

AC:100V~120V AC:220~240V

Average Power:

350W/ SQM

Max Power Consumption:

≤ 600W

Current:

≤ 20mA (single LED)

Control System

Computer:

Pentium4 or above P4 or above

Operate System:

Win98/2000/NT/XP

Control Mode:

Synchronization with PC

Main Technical

Parameter

Driving Device:

IC Constant Current Driving

Refresh Rate:

≥ 600Hz

Gray/Color:

RGB each 256 grade, can display 16.7color

MTPF:

≥ 9000hours

Power Switch:

RGX Automatic Switch

Display Mode:

800*6001024*7681280*960









Show Photo Details:

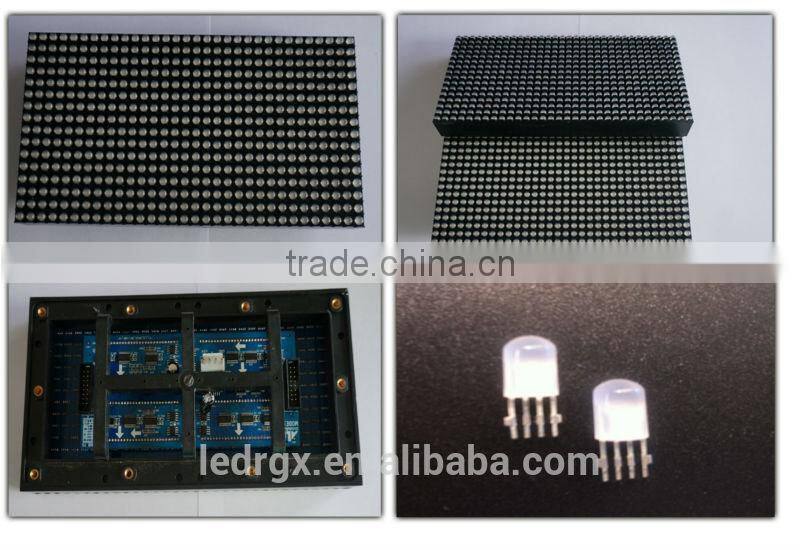

  3  P7 real  DIP 3in1 led module full color Photo:

                                                                        P7mm smd dip  led module 244mm*122mm

Edifice p7 led display distribute

Edifice p7 led display distribute

Edifice p7 led display distribute

Edifice p7 led display distribute



Edifice p7 led display distribute





Company Information

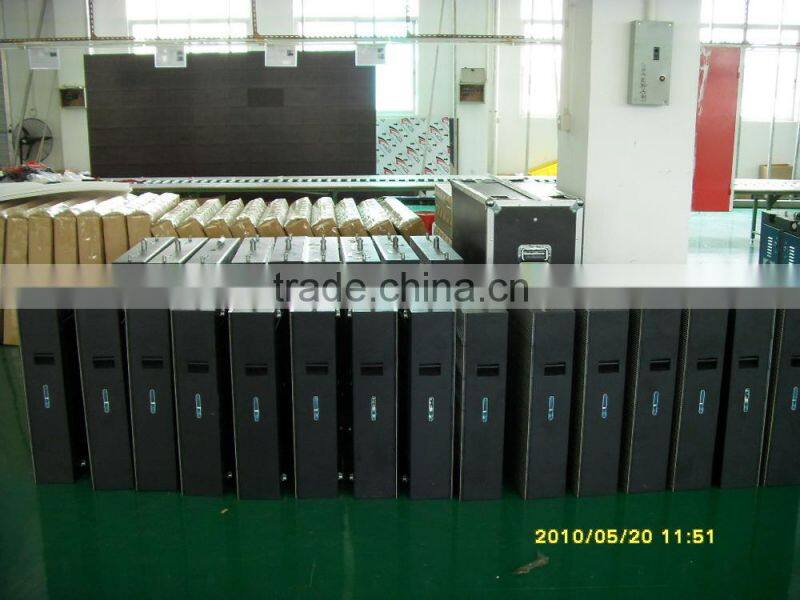

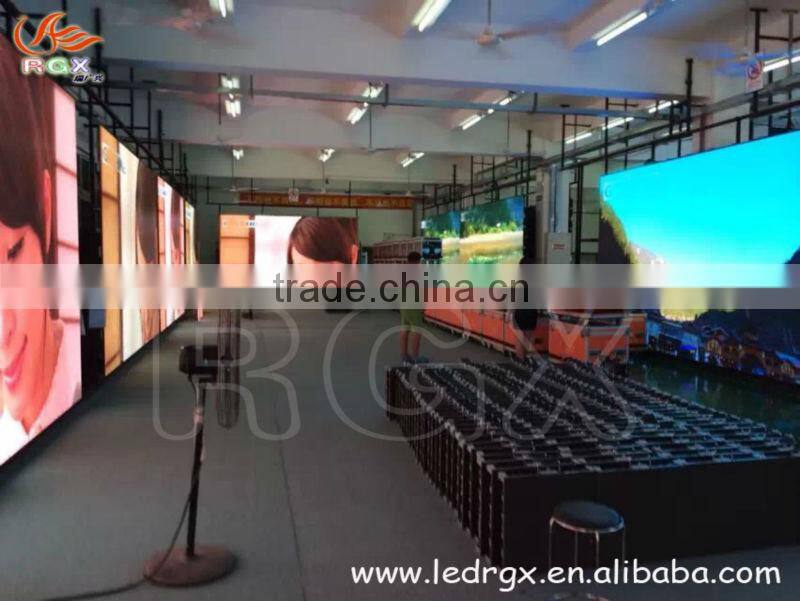

2: RGX Company Photo:



Edifice p7 led display distribute





5: Test: Each producing step of P7mm full color led display we have strict test.



6: RGX Certification:

Edifice p7 led display distribute

7: Installation: ( Our factory will give you Drawing to teach you how to install it)





 8: RGX led display screen system:

Edifice p7 led display distribute



 Packaging & Shipping

9: Pack, Flight case or Wooden case



Edifice p7 led display distribute



10: Transportation:





Our Services



  11: Tech. Support:

Edifice p7 led display distribute



12: Our Advantage:



    1)   Competitive price

    2)   Professional manufacturer

    3)   Exquisite quality



          a:     ISO 9000 and 5S management system

          b:    Each procedure have special machine and QC to supervise and check

          c:     From the material purchasing, all have the special Equiment to stakeout



     4)   Perfect service



           a;  2-3years guarantee with free charge, maintain in all life

           b:  Free training in our company or guide installation and train in customer country or on lone training by long-distance control in internet

           c:  Regular training and meeting in each month for all customers, provide strong technology for each customer at the first time



     5)   Delivery date is quick and on time

    6)   New product exploring

RGX Collecting the customers ideas combined with the LED Market requirement, gradually perfect the LED signs functions, on meanwhile research the new LED signs to satisfy the customer demand

In the end, thank very much for you time, and wish you have good days and good business in you lift.
