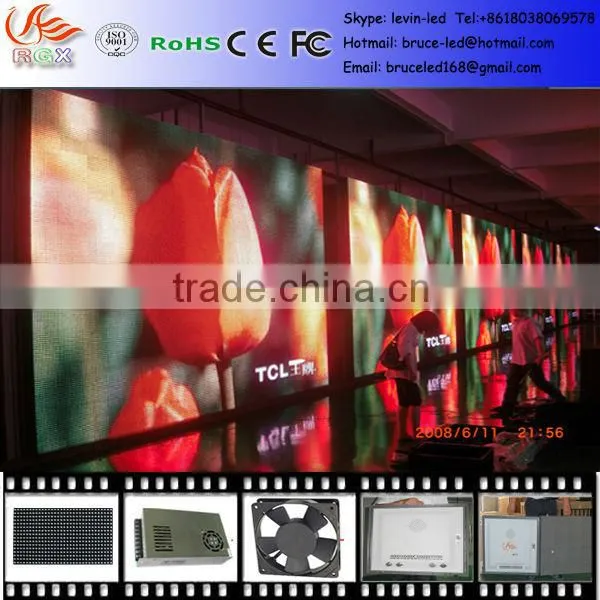

RGX Computer Synchronized P5mm P7.62 Led Displays Indoor \

Unit Module

Item:

RGX LED Parameter

Model:

P7.62mm indoor Full color led Module

Pixel Pitch:

7.62 mm

Pixel configuration:

3in1 (1R1PG1B SMT 3in1)

Module Size:

244mm * 244mm

Module Resolution:

32dots(W) * 32dots(H)

Module Thickness:

14.85mm

27.15mm(included magnet)

Module Weight:

0.154 KG

Package LED mode:

SMD3528

Max Power:

20W

Pixel Density:

17222 dots / SQM

Driving Method:

Constant Current Driving

Scan Method:

1/8 scan

Interface Way:

HUB 75

Brightness:

≥ 2800CD /SQM

Unit Cabinet

Cabinet Size:

732mm * 732mm (Customize)

Cabinet Composing:

18 pcs

Power Supply Mode:

5V/40A

Cabinet Resolution:

96dots * 96dots

Optimal Viewing Distance:

5-60M (according to the big screen size)

Optimal Viewing Angle:

Horizontal angle: 160 degree;

Vertical angle: 120 degree

Environment Temperature:

Storage: -40 degree `~ +85 degree

Work: -20 degree ~ +60 degree

Relative Humidity:

10% ~ 95%

Power

Operating Voltage:

AC:100V~120V AC:220~240V

Average Power:

180/SQM

Max Power Consumption:

≤ 580W/SQM

Current:

≤ 20mA (single LED)

Control System

Computer:

Pentium4 or above P4 or above

Operate System:

Win98/2000/NT/XP

Control Mode:

Synchronization with PC

Main Technical

Parameter

Driving Device:

IC Constant Current Driving

Refresh Rate:

≥ 600Hz

Gray/Color:

RGB each 256 grade, can display 16.7color

MTPF:

≥ 9000hours

Power Switch:

RGX Automatic Switch

Display Mode:

800*6001024*7681280*960
