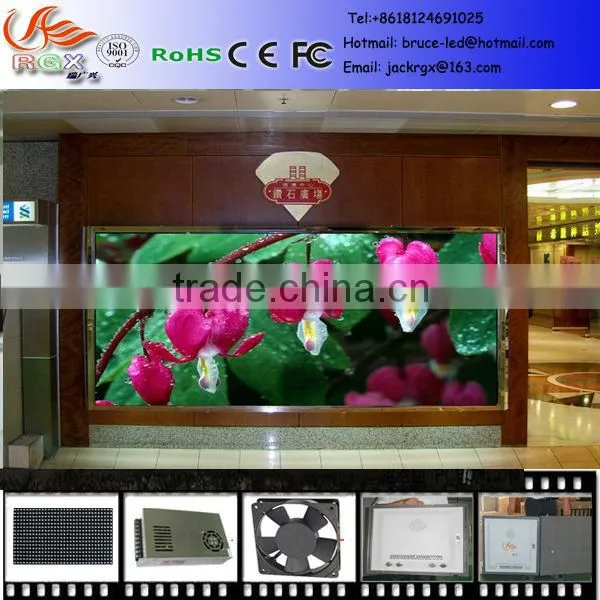

RGX Indoor P10 LED Display
RGX LED display Function and Technology Character
1. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
2. Information source can be camera, video, VCD, DVD, LD, TV and so on.
3. Clear picture without flicker and distortion.
4. Brightness, contrast, saturation can be adjust by itself and manual.
5. Show everything with your PC does synchronously.
6. Super correcting technology for distortion.
7. One interface for sound signal and two for video signal at least.
8. Connected and controlled by PC via Lan and remote control.
9. Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
1 RGX P10mm led display Specification
Unit Module |
Item: |
RGX LED Parameter |
Model: |
P10mm indoor Full color led Module |
|
Pixel Pitch: |
10 mm |
|
Pixel configuration: |
3in1 (1R1PG1B) |
|
Module Size: |
320mm * 160mm |
|
Module Resolution: |
32dots(W) * 16dots(H) |
|
Module Thickness: |
14.85mm |
|
27.15mm(included magnet) | ||
Module Weight: |
0.23 KG |
|
Package LED mode: |
SMD3528 |
|
Max Power: |
20W |
|
Pixel Density: |
10000 dots / SQM |
|
Driving Method: |
Constant Current Driving |
|
Scan Method: |
1/4 scan |
|
Interface Way: |
HUB 75 |
|
Brightness: |
≥ 2800CD /SQM |
|
Unit Cabinet |
Cabinet Size: |
960mm * 960mm (Customize by client) |
Cabinet Composing: |
18 pcs |
|
Power Supply Mode: |
5V/40A |
|
Cabinet Resolution: |
96dots * 96dots |
|
Optimal Viewing Distance: |
7-100M (according to the big screen size) |
|
Optimal Viewing Angle: |
Horizontal angle: 160 degree; Vertical angle: 120 degree |
|
Environment Temperature: |
Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree |
|
Relative Humidity: |
10% ~ 95% |
|
Power |
Operating Voltage: |
AC:100V~120V AC:220~240V |
Average Power: |
120/SQM |
|
Max Power Consumption: |
≤ 500W/SQM |
|
Current: |
≤ 20mA (single LED) |
|
Control System |
Computer: |
Pentium4 or above P4 or above |
Operate System: |
Win98/2000/NT/XP |
|
Control Mode: |
Synchronization with PC |
|
|
Main Technical Parameter |
Driving Device: |
IC Constant Current Driving |
Refresh Rate: |
≥ 600Hz |
|
Gray/Color: |
RGB each 256 grade, can display 16.7color |
|
MTPF: |
≥ 9000hours |
|
Power Switch: |
RGX Automatic Switch |
|
Display Mode: |
800*6001024*7681280*960 |
RGX P10mm LED module:
RGX Rental die cast cabinet
RGX Iron Rental die cast cabinet
RGX was founded in 2000 year and has five hundred and fifty workers. There into, 12% is R&D engineer. Our general engineer was famous engineer in LED field, he has 12 years experience in LED product and is very familiar with LED display screen, power supply, technology and raw materials, we mainly produce middle and high-grade products, and have established strict product quality standards, we produce our product from LED chip to complete led screen assemble finish, that why we can guaranteed our product’s quality
1 RGX Company photo
5: Test: Each producing step of P10mm full color led display we had strict test.
7: Installation:
8: indoor led display System:
9: Pack
10: Transportation
11: Our Advantage:
1) Competitive price
2) Professional manufacturer
3) Exquisite quality
a: ISO 9000 and 5S management system
b: Each procedure have special machine and QC to supervise and check
c: From the material purchasing, all have the special Equipment to stakeout
Perfect service
2-3years guarantee with free charge, maintain in all life
Free training in our company or guide installation and train in customer country or on lone training by long-distance control in internet
Regular training and meeting in each month for all customers, provide strong technology for each customer at the first time
In the end, thank you very much for you time and have good business for you
