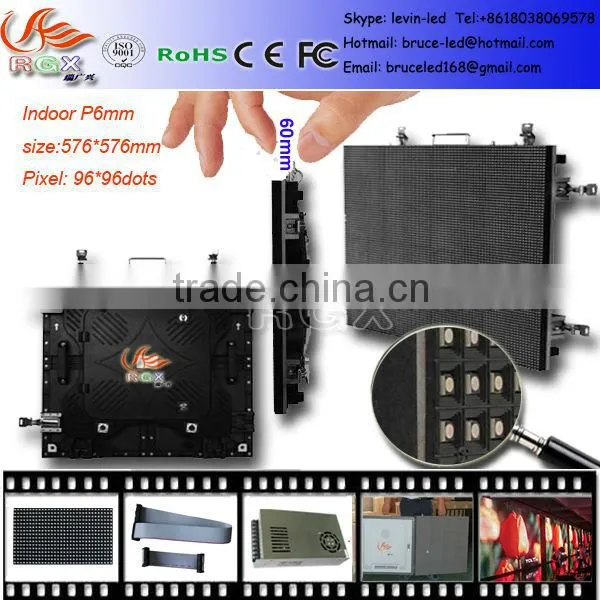

RGX P6 indoor full color led video wall

Unit Module

Item:

RGX LED Parameter

Model:

P6mm indoor Full color led Module

Pixel Pitch:

6 mm

Pixel configuration:

3in1 (1R1PG1B SMT 3in1)

Module Size:

192mm * 192mm

384mm * 192mm

Module Resolution:

32dots(W) * 32dots(H)

64dots(W) * 32dots(H)

Module Thickness:

14.85 mm

27.15mm(included magnet)

Module Weight:

0.154 KG and 0.212KG

Package LED mode:

SMD3528

Max Power:

20W

Pixel Density:

27777 dots / SQM

Driving Method:

Constant Current Driving

Scan Method:

1/4 scan  or    1/8 scan

Interface Way:

HUB 75

Brightness:

≥ 3500CD /SQM

Unit Cabinet

Cabinet Size:

576mm * 576mm (Customize)

Cabinet Composing:

9 pcs

Power Supply Mode:

5V/40A

Cabinet Resolution:

96dots * 96dots

Optimal Viewing Distance:

5-60M (according to the big screen size)

Optimal Viewing Angle:

Horizontal angle: 160 degree;

Vertical angle: 120 degree

Environment Temperature:

Storage: -40 degree `~ +85 degree

Work: -20 degree ~ +60 degree

Relative Humidity:

10% ~ 95%

Power

Operating Voltage:

AC:100V~120V AC:220~240V

Average Power:

180/SQM

Max Power Consumption:

≤ 600W/SQM

Current:

≤ 20mA (single LED)

Control System

Computer:

Pentium4 or above P4 or above

Operate System:

Win98/2000/NT/XP

Control Mode:

Synchronization with PC

Main Technical

Parameter

Driving Device:

IC Constant Current Driving

Refresh Rate:

≥ 600Hz

Gray/Color:

RGB each 256 grade, can display 16.7color

MTPF:

≥ 9000hours

Power Switch:

RGX Automatic Switch

Display Mode:

800*6001024*7681280*960
