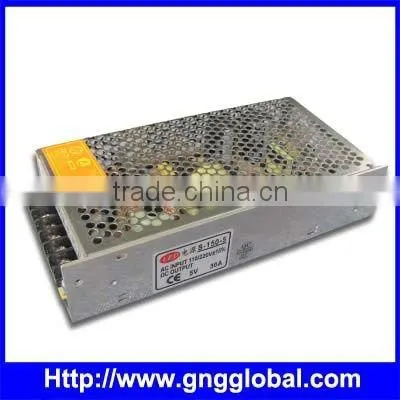

Led Light Power Supply 150Watt

Led Light Power Supply 150Watt thumbnail-1
Led Light Power Supply 150Watt photo-1
Negotiable MOQ: 12 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GG
Model Number:
GG-S150-XX
Contact Supplier Request Quote Chat Now
Shenzhen G&G Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GG
Model Number GG-S150-XX
Output Power 101 - 200W
Output Type Single
Input Voltage 220V
Output Voltage DC5V, DC12V, DC24V

Specifications

led light power supply,
Input: AC110V/AC220V,
Output: DC5V, DC12V, DC24V,
CE & RoHS,

led light power supply,



Input voltage:AC110/220V
Output voltage:5V, 12V ,24V
Output current:30A, 12.5A, 6.5A
Output power:150W



Features:

1. Non-waterprooof design for indoor use only
2. Protections: Short circuit / Overload/Over temperature
3. Products through CE, RoHS Certification



Specification:



Model S-150-5 S-150-12 S-150-24
DC output voltage 5V 12V 24V
Output voltage error(Note 2) ±2% ±1% ±1%
Rated output current 30A 12.5A 6.5A
Output current rage 0-30A 0-12.5A 0-6.5A
Wave and noise(Note 3) 150mVp-p 180mVp-p 240mVp-p
Inlet stability(Note 4) ±0.5% ±0.3% ±0.2%
Load stablity (Note 5) ±0.5% ±0.3% ±0.2%
DC output power 150W 150W 156W
Efficiency 70% 82% 85%
Adjustable range for DC voltage 4.5~5.5V 10.6~13.2V 21~28V
AC input voltage range 86-132VAC/170-264VACSelected by switch47-63Hz, 240-370VDC
Input current 3.2A/115V 1.6A/230A
AC INnrush current Cold-start current30A/115V 60A/230V
Leakage current <3.5mA/240VAC
Overload proctection 105%-150%Type:Foldback:current limiting reset:auto recovery
Over-voltage protection 115%-135
High-temperature protection Yes
Temperature coefficient ±0.03%/°C(0-50°C)
Setup rise hold up time 100ms,50ms,20ms
Vibration 10-500Hz,2G 10min,/1cycle,Period for60min,Each axes
Withstand voltage Input and output internal: 1.5KVAC,Input and enclosure: 1.5KVAC,Output and enclosure: 0.5KVAC
Isolation resistance Input and output internal:Input and enclosure,Output and enclosure: 500VDC/100MΩ
Working temperature and humidity -10°C~+60°C(Refer to output derating curve),20%~90%RH
Store temperature and humidity -20°C~+85°C.10%~95%RH
Overall dimension 199×110×50mm
Weight 0.8Kgs
Safety standards UL1950 TUV EN60950)Verification
EMC standards CISPR22(EN55022),IEC10000-4-2,3,4,5 IEC1000-3-2Verification
Note
1.The testing condition for the paramenter above is :230VAC input,rated load,25°C70% RH.Humidity.
2.Error.include the setting error,line stability and load stability.(Note:5).
3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.
4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
5.Load stability test:the load is from 0% to 100%.
