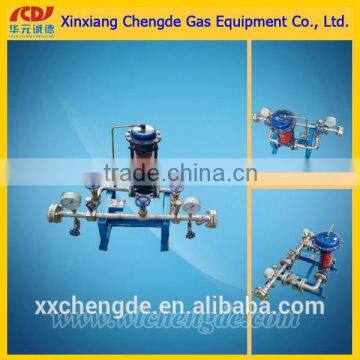

Technical Summary:
vide different code based on users' requirement: D1/D2 pressure vessel design license,
ISO9001 International Quality System Certificate, GC2/GC3 pressure piping design license,
GC2/GC3 pressure piping installation license etc.
2. all pipes are made of stainless polished pipes with degrease treatment to insure the safety and cleanness.
3. There is a filter in front of the pressure valve to prevent the damage.
4. Pressure gage helps to read pressure and other parameter
5. The pressure regulating valve includes pressure compensator with ite pressure regulating accuracy around 5%.
6. self-acting pressure regulating equipment
7.can design special products according to customer' demands.
Main technical parameter:
1 |
model |
ZDT25( single route ) ZDT25( double route ) ZDT40( single route ) ZDT40( double route ) ZDT50( single route ) ZDT50( double route ) SDT25( single route ) SDT25( double route ) SDT40( single route ) SDT40( double route ) |
2 |
Filling material |
oxygen, argon, nitrogen ,carbon dioxide, natural gas |
3 |
rout |
double route or single route |
4 |
regulating |
first-class or second class regulating |
5 |
type |
self-operation or man-operation |
6 |
normal diameter
|
DN20-DN80 |
7 |
Material |
stainless steel |
8 |
nominal pressure |
4.0 |
|
|
Product Parameter about cryogenic liquid tank
Lpg tank product parameters:
LNG tank product parameters:
|
Working medium
|
No |
Models |
Capacity (m3) |
pressure (MPa) |
Dimension(mm) |
Net weight |
Insulation method |
|
LNG
|
1 |
CFL-15/0.6 |
15 |
0.6 |
2516*6760 |
8145 |
vacuum powder or high vacuum multi-layer wrap insulation
|
2 |
CFL-15/0.8 |
15 |
0.8 |
2516*6760 |
8415 |
||
3 |
CFL-20/0.6 |
20 |
0.6 |
2516*8430 |
9700 |
||
4 |
CFL-20/0.8 |
20 |
0.8 |
2516*8430 |
9940 |
||
5 |
CFL-30/0.6 |
30 |
0.6 |
2720*10060 |
15240 |
||
6 |
CFL-30/0.8 |
30 |
0.8 |
2720*10060 |
15540 |
||
7 |
CFL-50/0.6 |
50 |
0.6 |
3120*11917 |
22310 |
||
8 |
CFL-50/0.8 |
50 |
0.8 |
3120*11917 |
22715 |
||
9 |
CFL-100/0.6 |
100 |
0.6 |
3624*17110 |
42179 |
||
10 |
CFL-100/0.8 |
100 |
0.8 |
3624*17110 |
44020 |
||
We can design different products according to our customer’s requirements | |||||||
Liquid oxygen,nitrogen,argon tank product parameters:
Liquid carbon dioxide tank product parameters:
| liquid carbon dioxide Tank | ||||||||
| MODEL | outer size | Net weight | Design temperature |
Filling rate |
inner vessel material |
outer vessel material |
Working medium |
|
| CFL10/2.16 | 2116×7128mm | 7534kg | ,-40 ℃ | 95% | 16MnDR | Q235-B | liquid co2 | |
| CFL15/2.16 | 2516×6912mm | 9455kg | ,-40 ℃ | 95% | 16MnDR | Q235-B | liquid co2 | |
| CFL20/2.16 | 2516×8756mm | 12170kg | ,-40 ℃ | 95% | 16MnDR | Q235-B | liquid co2 | |
| CFL30/2.16 | 2916×8960mm | 18235kg | ,-40℃ | 95% | 16MnDR | Q235-B | liquid co2 | |
| CFL50/2.16 | 3216×11300mm | 26097kg | ,-40 ℃ | 95% | 16MnDR | Q235-B | liquid co2 | |
| We could supply the products according to customer requirements | ||||||||
what certificates we have about cryogenic liquid tank?
our team:
We are a young,energetic team,we have a wealth of expertise and first-class technical team.The rigorous style of work,fine products,quality service is our consistent service principle,
We are a company authorized by the Chinese Foreign Economy and Trade committee which also get the right to do import and export business independently.
♦Factory Show
We use the most advanced production line equipment, large punching machine, large rolling machine, CNC automatic welding machine, vacuum unit, CNC spinning shut, closed end equipment, automated heat treatment equipment, CNC winding equipment, electrostatic spraying equipment, helium mass spectrometer leak detector, spectrum analyzer, automatic ultrasonic flaw detector, X-ray detection machine, universal testing machine, impact testing machine and other sound sophisticated detection equipment.
◊ Our Servise
1 We are china leading Cryogenic liquid tank&Gas equipment manufacture
2 Inspected by the inspection institution of Bureau Veritas Certification
3 Best quality & Best service with competitive price.
Q and A
Question1: What is the operation pressure of cryogenic storage tank?
Answer: Cryogenic Storage: 8 bar or 16 bar or customers required
Handy Tank: 16Bar, 24bar, 34Bar
Cryogenic Cylinder: 16Bar, 24bar, 34Bar
Question2: What is the design code?
Answer: It can be Chinese GB code or ASME code
Question3: Can Chengde provide complete filling line?
Answer: Yes, Chengde can provide complete filling line for Nitrogen/Oxygen/Argen/Carbon Dioxide/LNG.
Question4: Which equipments are included in filling line?
Answer: Cryogenic ISO tank container, cryogenic storage tank, filling pump, filling Vaporizer, filling scaffold.
Question5: Can Chengde handy tank provide continuous gas for use?
Answer: Yes, our handy tank can provide continuous gas for use.
Question6: What is Chengde handy tank size?
Answer: It is 1000L, 2000L, 3000L, 4000L, 5000L.
Question7: Is vaporizer needed in Chengde cryogenic cylinder and handy tank?
Answer: No, our cryogenic cylinder and handy tank can provide continuous gas for use directly.
Question8: What is Chengde cryogenic ISO tank container size?
Answer: 10ft, 12ft, 20ft and 40ft.
Question9: What is pressure of Chengde cryogenic ISO tank container?
Answer: it is 7.5Bar, 16Bar, 18Bar, 24Bar.
Question10: What is the advantages of Chengde cryogenic liquid storage tank?
Answer: 1.Having almost 20 years' experience to producing cryogenic storage tank,good quality can be supplied,
2.We are a government-backed enterprise,you can get the more competitive price,
3.Our partners are all over the world, annual sales amount is more than 90000000 yuan($15000000). There are 185 employees in our company,
4.Complete set of solutions of low-temperature cryogenic system can be supplied for you.
5.Got the ASME/GB Standard, ISO9001,CCS,CE/GOST/BV2008 etc. Certification.
|
