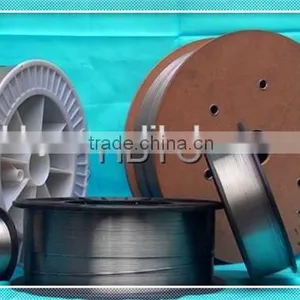

Hardfacing flux cored wire with crackfree deposition
hardfacing welding wire
YC-ZG300(Q) Hard Facing Flux Cored Wire For hardbanding of drill pipes
1. Specification
YC-ZG300(Q) is a kind of metal powder type flux cored wire. It has stable arc, less spatter and excellent appearance .The surfacing hardness of welding is uniform and stable. It adopts Cr-Mn-Mo alloy system.
1) Non-cracking
2) Surfacing hardness: HRC62-67.
3)Delivering both adequate tool joint protection and excellent casing wear protection
4)To be compatible with other flux cored wire for drill pipe
hardbanding,such as Anrco 300XT brands,etc . Re-application without previous removal
5)Can be used for new or old drill pipe with different sizes
6)Used for drill pipe, heavy weight drill pipe, drill collars, centralizers, shock absorbers, and various other downhole tools.
7)Loss of quality wear coefficient by Dry / rubber wheel abrasion test: 0.08%.
2.Chemical Composition of Deposited Metal (%)
|
C |
Si |
Mn |
Ti |
Ni |
Other |
Standard |
≤1.5 |
≤1.5 |
≤2.5 |
≤2.0 |
≤3.0 |
≤2.0 |
3.Mechanical Properties of Deposited Metal (Surfacing one layer, seam height more than 3mm)
HRC :≥62
4.Recommended Current (DC+) and Voltage Range
Diameter(mm) |
AMP(A) |
ARC VOLT(V) |
(L/min) |
φ1.6 |
200-300 |
20-30 |
15-25 |
Recommended Current (DC+) and Voltage Range:29V;AMP:250A

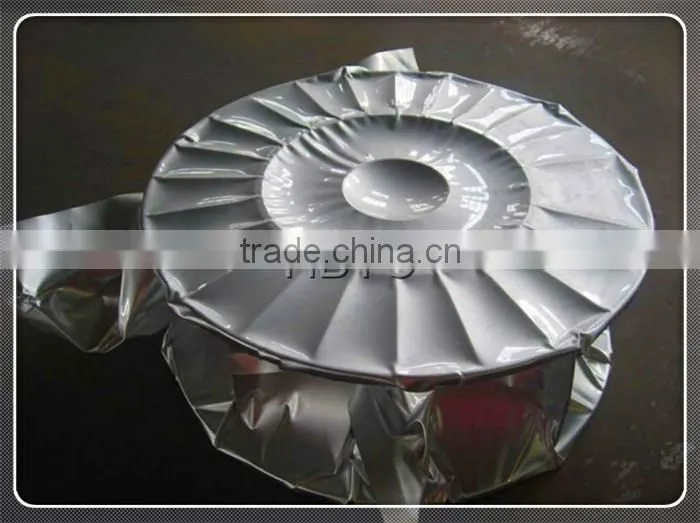

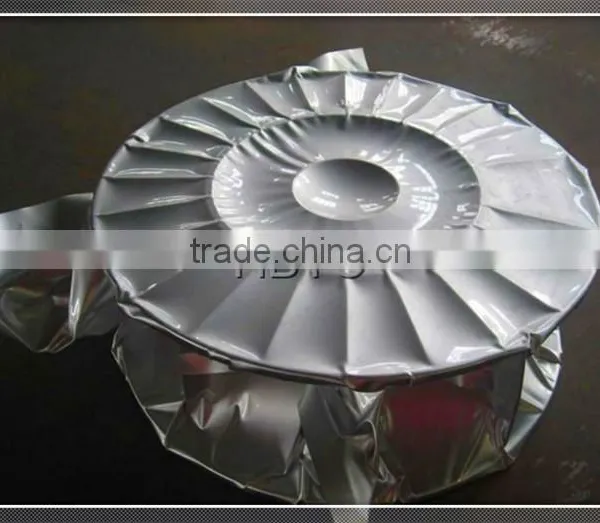

5.Package:
15kgs/spool, 25kgs/spool

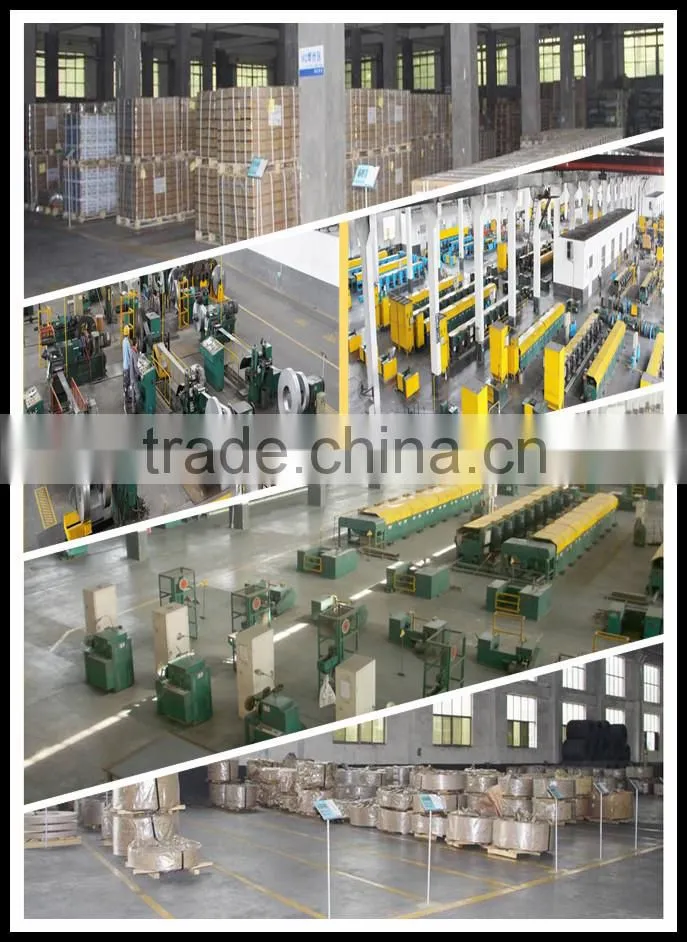

Hebei Yichen industrial Group Co.,Ltd. is a high-tech enterprise with strong R&D,manufacture and trading.Our corporation R&D center works closely with the professors from different universities and national research institues..Our manufacture facility owns the advanced production equipments,up-to-dated inspection/measurement instrumenta and the perfect evaluation and quality control systems.We have ISO 9001.2000 certificate.
Also we specializes in reseaching and manufacture of flux cored wire.We privide complete series of flux cored welding wire products with consisten quality,excellent performance and perfect process tunability to our customer with different welding purposes.
OEM service for 14 years.
Contact:
Ms Iris
Skype:weldwire(at)
QQ:314555585
Mobile Phone:8618330183551
TEL:0086-311-88929204
Send Inquiry to This Supplier
