HOT SELLING use for RGB Various Color LED Controller
pixel led controller, rgb led controller, mini rgb led controller
with 8192 pixel capacity,digital led controller,
dc5-24v
Composition:
This led controller is composed of two parts:

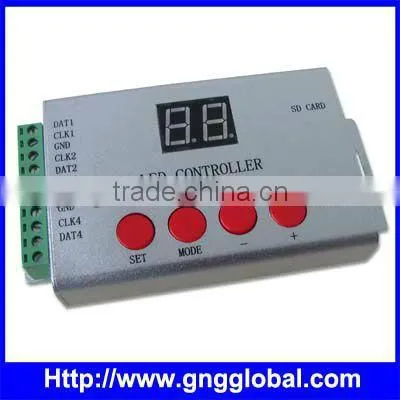

1. Single LED controller(YM-H801SE)-- provide 4 ports for data output, each port can control 2048 pixels, so totally it can control 4*2048= 8192
2. Lighting control software- install you computer, edit the display effects or video you want, transfer them to SD card, and then playback in controllers.
Specification and Parameter:
Load Capacity |
4*2048=8192pixels |
Grayscales |
256levels R,G,B each channel |
Input Voltage |
DC5V-24V |
Power Consumption |
1W |
Software |
LED Video |
Size |
L102 x W82 x H24 |
Temperature |
-40C°--70C° |
Control IC |
LPD6803,LPD8806,LPD6813,UCS6909, UCS6912,UCS1903,UCS1909,UCS1912,TLS3001,TM1812, TM1809,TM1804,TM1803, DZ2809,WS2801,SD600,D705,P9813, SM16716, DMX512 etc. |
Features:
1. 4 output ports can control more pixels, totally 8192pixels.
2. Support SD card 2GB Max, can play 64 DAT effect files in one unit at most.
3. Play speed can be adjusted from 1 to 50 Frame/s, and working frequency from 0.1MHz to 2.0MHz.
Definition of ports:
Port 1 |
Port 1 |
Port 1 |
Port 1 |
||||||||
GND |
CLK |
DAT |
GND |
CLK |
DAT |
GND |
CLK |
DAT |
GND |
CLK |
DAT |
GND |
D- |
D+ |
GND |
D- |
D+ |
GND |
D- |
D+ |
GND |
D- |
D+ |
Connecting
Application
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products
1.Sample is available.
2.OEM & ODM are available
3.After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
1.Payment methods:T/T,Western Union, place the order on alibaba directly, etc
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:5-7 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx (door to door service),by sea, air and etc
4.Sample is available, Don't limit the quantity.
Any question, feel free to contact us.
