Load capacity 100,000pixels on-line led control system, digital rgb strip controller,
Introduction:
YM-PC3000 can be connected to computer via Ethernet port to control LED lights. Under our own software LEDStudio, customers can realize many display effects, can text, picture and video.
YM-PC3000 has 4 output ports. The four output ports can use flexible, it can use one port or four ports as well. if use one port ,this port can control maximum pixels, if use two ports ,each one can control the pixels number is maximum pixel/2, if use three ports, each one port can control maximum pixels/3 ,if use four ports ,each one can control maximum pixels/4.
It can extend loading capacity by connectingl itself (max 255pcs of YM-PC3000) to control led pixel lights, 100,000pixel lights Max.
System Composition:
This led control system is composed of Three parts:
1. LED controller – YM-PC3000 provide 4 ports for data output, can control 3,412 pixel lights Max.
2. Computer- YM-PC3000 need work with computer via Ethernet port.
3. LEDStudio—Installed on computer, program display effects of lights, and playback to led pixel lights.

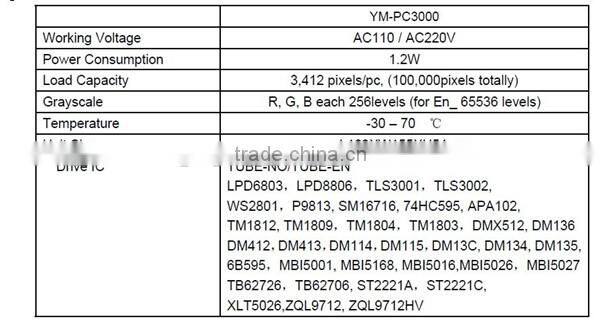

Parameters
Features:
1. YM-PC3000 can be connected to computer via Ethernet port to control LED lights. Under our own software LEDStudio, customers can realize many display effects, can text, picture and video.
2. One Ethernet port can connect 255 pcs of YM-PC3000 in serial, and can control 100,000pixel lights.
3. More control functions: it can control various normal drive IC lights, and or various customized drive IC lights.
4. High speed photoelectric isolated signal input and output, to ensure the control system safety.
5. Control system realize RGB 256 scales per color, can make more than 16.7M kinds color, for ICs with Enable, can reach 65536 levels.
6. Project setting agility: realize adjust the brightness and speed separately.
7. Customized software: easy to setup the lighting project system. Create lighting data by various methods. Refresh data fast.
8. Clock rate is adjustable from 100KHz to 50MHz.
9. Perfect compatible with DMX512(1990) international standard protocol. Accord with EMC electromagnetism compatibility, good anti-jamming capacity.

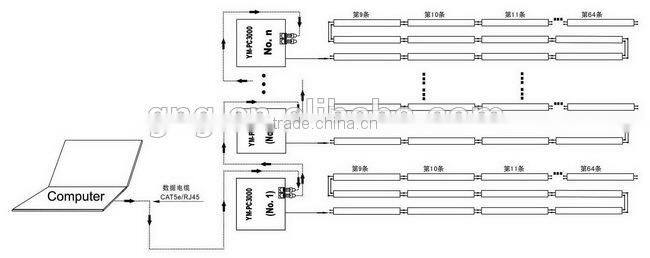

Conjunction:
Application:
