Home > Products > DMX Driver & Decoder > Shenzhen RGB 3 Channel DMX Decoder Constant Voltage LED Driver
Shenzhen RGB 3 Channel DMX Decoder Constant Voltage LED Driver
- 10 Piece / Pieces per Month
- shenzhen
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YM | Model Number: | YM-HYA |
Product Description
Specifications
1.RGB 3 Channel DMX Decoder Constant Voltage LED Driver2.Input voltage:DC12-24V
3.Output:3channels
4.Constant voltage
5.DMX
Shenzhen RGB 3 Channel DMX Decoder Constant Voltage LED Driver
rgb dmx decoder, 3 channel dmx decoder, dmx constant voltage led driver
Introduction:
YM-HYA is a Constant Voltage address DMX Decoder for RGB led lights. By advantage of advanced coding technology, the unit is compatible with international DMX512/1990 standards, which decodes the international popular digital control signals into a PWM signal to drive RGB LED lights. Each channel can be controlled with 256 level gray-scales.
Features:
1. Perfectly compatible with international DMX512/1990 standards.
2. Differential signal transmission, support 3 mode of data transmission:
3.Display effects:
If connected to DMX512 led controller or DMX512 console, the effects will follow the DMX512 led controller or DMX512 console, and change color per their commands.
If not connected to DMX512 led controller or DMX512 console, the effects will for pre-load program in side of the decoder.
4.Connection in Parallel
Each decoder is connected on DMX512 signal bus in parallel. It is recommended that signal amplifiers should be used for every 32 pcs of decoders in case of signal drop(Attenuation).
5.Strong anti-interference ability, anti-static and prevent lightening design.
Specification of YM-HYA

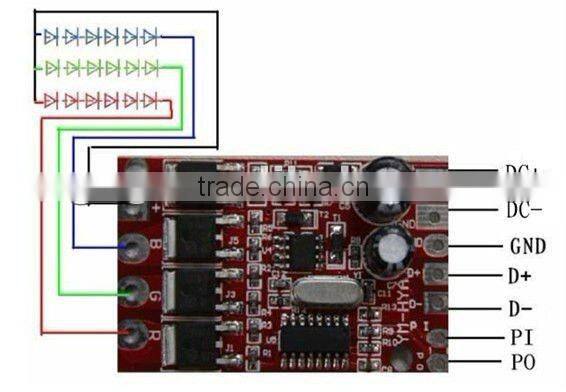

Input & Output:

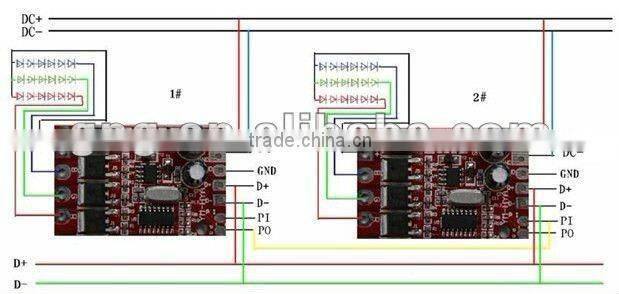

Typical Connection:
Application:
RGB LED strip light, RGB LED module light, RGB LED panel light, RGB LED channel light,etc.
G&G Technology Co., Ltd. is a leading led lighting solution provider in China, own its GG and YM brands, design and manufactures a wide range of Lighting products,LED light, LED display, LED stip,LED control system, LED module, LED point source pixel,LED drivers, Power supply, and can design and delelop lighting solution per customer's requirement. Our spacious factory is equipped with the latest manufacturing equipment and first-class research and development technology, enabling us to provide high-quality products
Sample is available.After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will includes connection of the controller and the light, and also the control software.
1.Payment methods:T/T,Western Union, place the order on alibaba directly, etc
100% payment if the total amount less than 5000USD
30% deposit and 70% balance before shipment if the total amount is more than 5000USD
2.Lead time:5-7 working days,subject to the order quantity
3.Delivery ways:DHL,EMS,UPS,FedEx (door to door service),by sea, air and etc
4.Sample is available, Don't limit the quantity .
Any question, welcome here.
