The latest CE approved pellet making machine
Brief Introduction for pellet making machine:
ZLSP series Flat Die wood pellet Machine is our newly developed energy-saving equipment. It is widely used for maize straw, peanut shell, rice husk, corncob, cotton seed hull, wheat-straw, sunflower seed shell, sawdust, cotton stalk, weeds, etc. This equipment is also suitable for raw materials which are difficult to form with low bonding ratio. Furthermore, organic bacterial manure, organic fertilizer and compound fertilizer are applicable to pelletize under low temperature.
Parameters for pellet making machine:
Type |
Power(kw) |
Output(kg/h) |
Weight(kg) |
Package size(mm) |
ZLSP150C |
Three phase4 |
90-120 |
105/125 |
1000*480*780 |
ZLSP200C |
Three phase7.5 |
200-300 |
210/230 |
1050*550*830 |
ZLSP230C |
Three phase11 |
300-400 |
290/320 |
1200*560*950 |
ZLSP260C |
Three phase15 |
160-250 |
400/600 |
1240*580*1000 |
ZLSP300C |
Three phase22 |
250-400 |
600/800 |
1300*620*1100 |
Advantages of pellet making machine:
1. CE&ISO9001 certifeicate.
2. Reliable quality of broad use, high efficiency.
3. Simple and automatic operation. Low energy consumption and less manpower.
4. Easy maintenance, Perfect technical design with less labor.
5.Both sides of the die can be used.
6.New suitable die has been devoloped to inprove the granualating effect.
Material Requirement for pellet making machine:
Directly before pellet press, a product with a granular size of approx 6 mm and a residual moisture content of approx 10 %-18% is required.

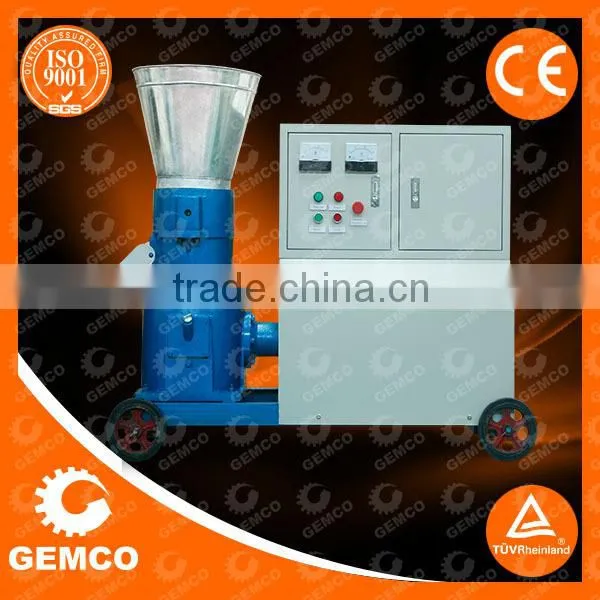

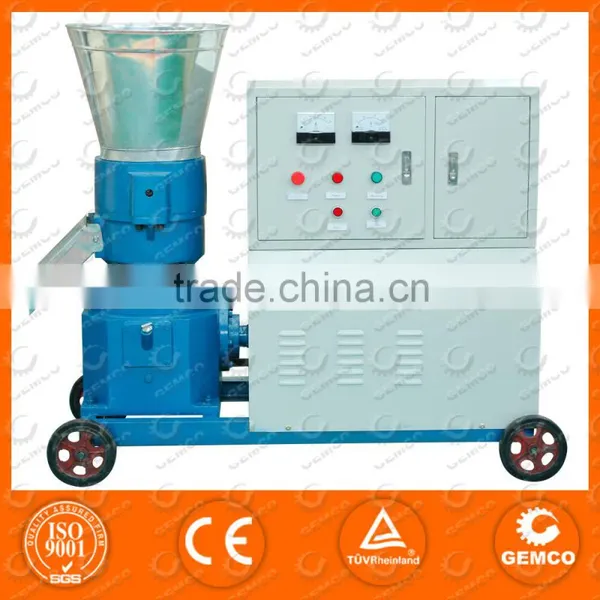

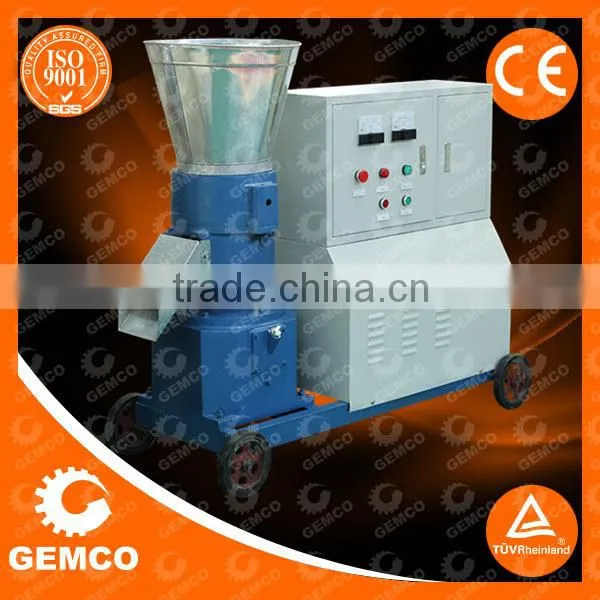

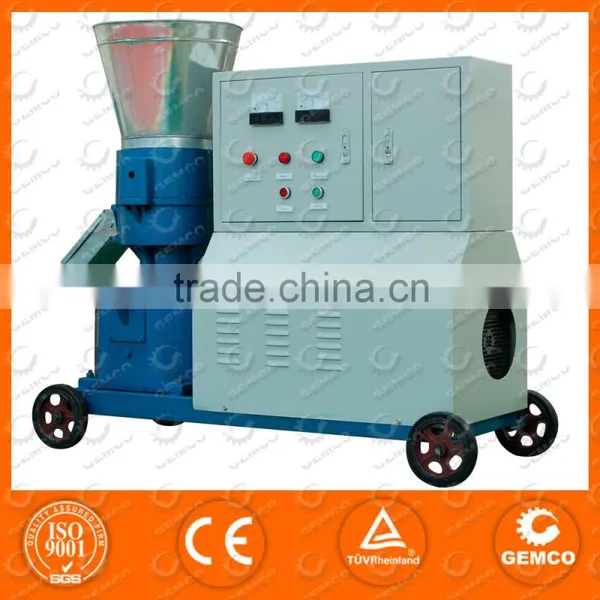

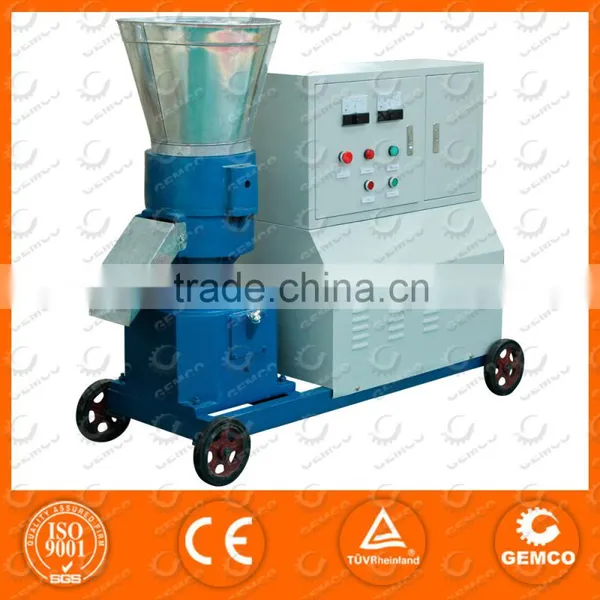

Pictures of the feed pellet machine:
We still have some other type of pellet mill as following:
D type R type
Q: What are the differences between D type pellet mill and R type pellet mill?
A: D type, literally is called rotating die type while R type is called rotating roller type. Mechanically, the prominent difference lies in motion pattern of die and roller, and transmission components. In terms of price, with the same configuration (capacity, power, etc), D type pellet mill is cheaper than R type because the latter has smarter design of pelletizing process and a better gearbox, though both types of pellet mill are competent of making quality pellets.
Please contact me without hesitation, if you have any question.
