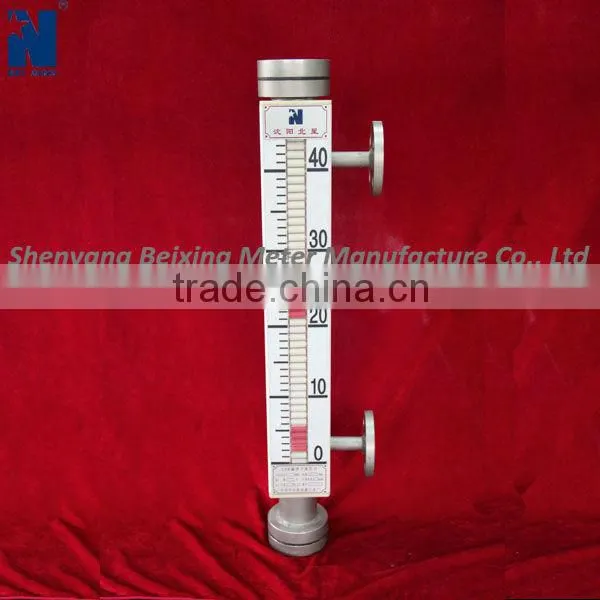

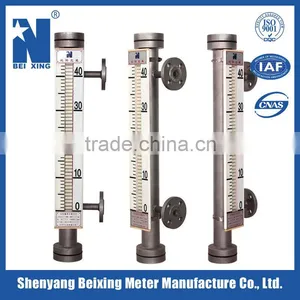

UFZ-52 magnetic liquid level gauge digital level meter with digital output
General information
1. UFZ-52 magnetic flap liquid level meter with magnetic float for the measuring element through BUOYANT Effect and magnetic coupling technique to transmit the level changes to the indicator.
2. Level meter with alarm and transmitter are available.
3. Having many advantages like wide measuring range, read by double colors, good corrosion resistance, good visual in dark, inflammable and explosive. It can be used to indicate the level of water ,industrial sewage ,oil, liquefied gas, acid and alkali that in the container of the industry and vessel.
Types
1. According to the function points, can be divided into basic type, with alarm and with transmitter.
2. The basic one can be divided into: conventional type, clip putting, anti-frosting type, indicator fitted above or below type.
Main technology parameters
1. Basic type
(1) Center distance:L=500~600mm choose randomly
(2) Error in indication: ±10mm
(3) Working pressure:1.6,2.5,4.0,6.3,10.0MPa
(4) Medium temperature:-80~300°C
(5) Medium density: ≥0.45g/cm3
(6) Medium viscosity: ≤ 1St(10-4m2/s)
(7) Meet liquid material: 1Cr18Ni9Ti.304.316.Ti
(8) Flange: the diameter of flange DN20
Flange Standard: PN1.6: HG20592~20635-97;
PN2.5,4.0: HG20592~20635-97-raised face
PN6.3,10.0: HG20592~20635-97-raised face
(9) Installation: side
2. Alarm
(1) Alarm error: ±5mm
(2) Output form: common signal
(3) Contact capacity: 24V.DC,0.3A
(4) Working life: >105
(5) Outlet: M20*1.5(inside thread)
(6) Transmission range: 3km
(7) Ambient temperature: -40~60°C
(8) Hazard classification: flameproof, dIIBT-4, No. of the certification: GYB95340
(9) Protection classification outside: IP65
(10)Weight: 0.5kg
3. Transmitter
(1) Measuring range: 0~6000mm
(2) Error: ±10mm
(3) Output signal: 4~20mA.DC
(4) Load impedance: 550Ω(when the power supply is 24V.DC)
(5) Power supply voltage: 24V.DC
(6) Outlet: M20*1.5(inside thread)
(7) Ambient temperature: -40~60°C
(8) Hazard classification: dIIbt1-4, ibIIBT4
(9) Protection classification outside: IP65
