Beixing Meter Manufacturer Vortex Flow Meter, Sensor, Transmitter
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
Shenyang Beixing
Model Number:
LUGB
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Data Transmissible Flow MeterNegotiableMOQ: 1 Unit -
LZ Metal Tube Rotameter Flow Meter for Gas or LiquidUS$ 160 - 710MOQ: 1 Set
-
Beixing Meter Glass Tube Rotameter Flow Meter for LiquidUS$ 30 - 210MOQ: 1 Unit
-
Low Cost Flow Meter/glass Tube RotameterUS$ 50 - 150MOQ: 2 Units
-
Beixing Meter Manufacturer QZL Gas Mass-flow MeterNegotiableMOQ: 1 Unit
Place of Origin
Liaoning, China
Brand Name
Shenyang Beixing
Model Number
LUGB
Product Description
Trade Shows 1
|
|
|
|
|
|
|
|

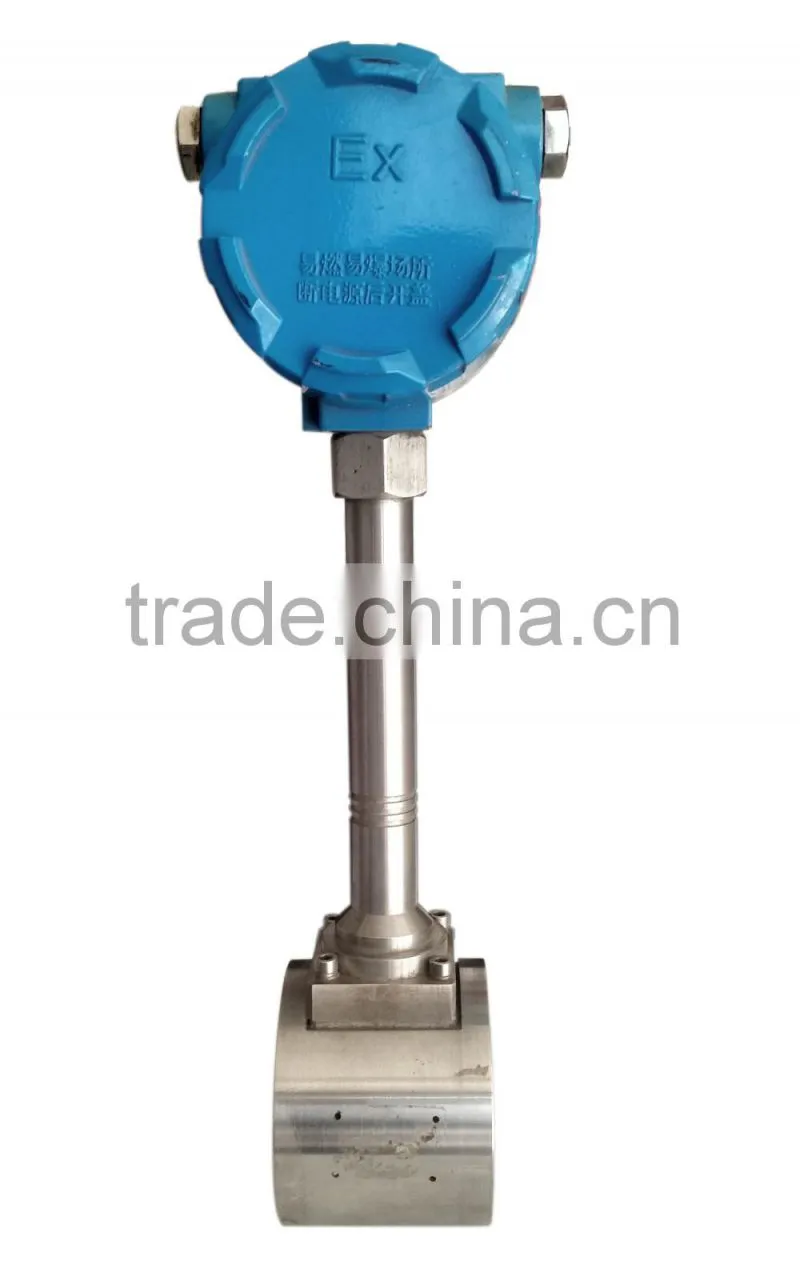

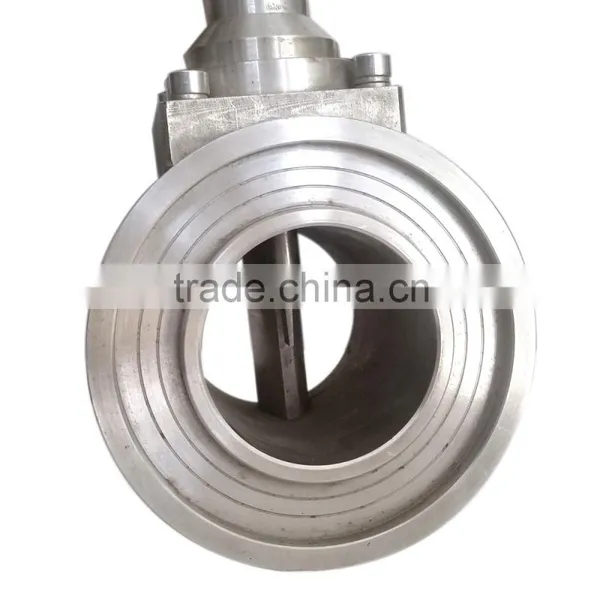

Beixing Meter Manufacturer Vortex Flow Meter, Sensor, Transmitter
Vortex Flow Meter is able to mearsuring liquid, air and steam. It also can output a pulse signal & analog signal within 4-20mAC. Sensor and Transmitter can be fitted together or seprated.
The bore of the meter is available in:
DN20, DN25, DN40, DN50, DN80, DN100, DN150, DN200, DN250, DN300.
| Nominal Bore (mm) | 20, 25, 40, 50, 80, 100, 150, 200, 250, 300 |
| Material | 1Gr18Ni9Ti |
| Nominal pressure (Mpa) | 2.5MPa ( >2.5MPa available in order) |
| Measured medium temperature | -40 ~ +350°C |
| Accuracy | 0.5, 1.5 (Air) |
| Range | 1:10 |
| Pressure drop coefficient | Cd <2.4 |
| Output signal | Voltage pulse, L≤1V, H≥5V; current output: 4-20 mADC |
| Environmental conditions |
Temp: -10 ~ +55 °C, relative humidity 5%-90%, Atmospheric pressure 86-106Kpa |
| Power supply | +12V ±3VDC, 24V ±3VDC |
| Signal transmission line | STVPV3x0.3 (3 lines), 2x0.3 (2 lines ) |
| Transmission distance | 1,000m (transmitter output), 5-20m (seprated sensor output) |
| Explosion-proof safety barrier model | Pulse output: JHA-H2, 4-20mADC output: JHA-B |
Range:
Sensor bore DN (mm) |
Air |
Gas |
Steam |
| 20 | 1-10 | 10-80 | 15-150 |
| 25 | 1.6-16 |
12-140 |
20-200 |
| 40 | 2.5-25 | 22-240 | 33-330 |
50 |
3.5-35 |
36-320 |
50-500 |
| 80 | 10-100 | 70-640 | 180-1,800 |
| 100 | 15-150 |
130-1,100 |
240-2,400 |
| 150 | 40-400 | 280-2,240 | 700-7,000 |
| 200 | 80-800 |
580-4,960 |
1,360-13,000 |
250 |
120-1,200 | 970-8,000 | 2,100-20,000 |
| 300 | 180-1,800 |
1,380-11,000 |
2,750-28,000 |
Under the condition:
liquid: water, t=20°C, ρ=1,000kg/m3
gas: air, t=20°C, P=0.1MPa, ρ=1.205kg/m3
steam: steam, t=143°C, P=0.4MPa, ρ=2.129kg/m3
