We have exported this kind of Water Flow Meter to Canada.
DK80 Glass tube air/ water rotameter/ flow meter
Introduction
This type of flow meter is suitable for tiny flow measurement and adjustment. It is simple in structure and operation.Don’t remove the whole machine from pipeline when change the cone tube or float.The connection adopt hose or metal tube.
Technology parameters
Measuring range |
Water 20°C(0.2-160)L/h |
|
Float appearance |
Globular |
|
|
Air 1.2×105Pa,20°C(0.5-4300)L/h |
|
Measured liquid state |
Max pressure |
1.0,1.6MPa |
|
Measuring ratio |
10:1 |
|
Temp |
0-120°C |
|
Accuracy level |
2.5 4 |
|
overall length |
145mm |
|
Cone tube |
Light pipe, steel tube,lengh 10mm |
|
connection |
Horse,metal tube |
|
Ruler |
Flow ruler |
|
weight |
0.4kg |
|
|
Bore DN (mm) |
Type |
Measuring range L/h |
The material of float |
|
|
Water (20°C) |
Air(1.2*106Pa20°C) |
|||
4 |
DK80-4 DK80-4F |
0.2~2 0.25~2.5 |
0.5~5 0.8~8 1.6~6 6~60 |
Stainless steel, agate |
6 |
DK80-6 DK80-6F |
0.5~5 1.2~12 2~20 2.5~25 4~40 6~60 10~100 16~160 |
10~100 20~200 25~250 50~500 80~800 100~1000 160~1600 180~1800 200~2000 240~2400 430~4300 |
Stainless steel, agate |

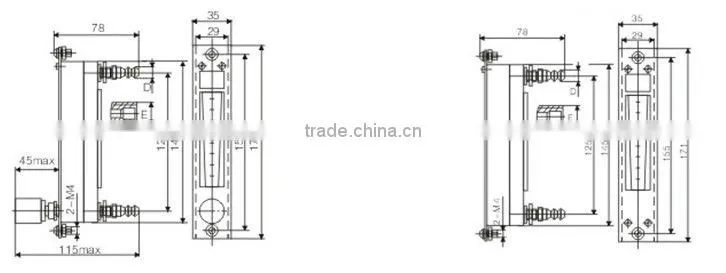

Structure and Size
DK80 Panel style with regulating valve DK80 Panel style non- regulating valve
